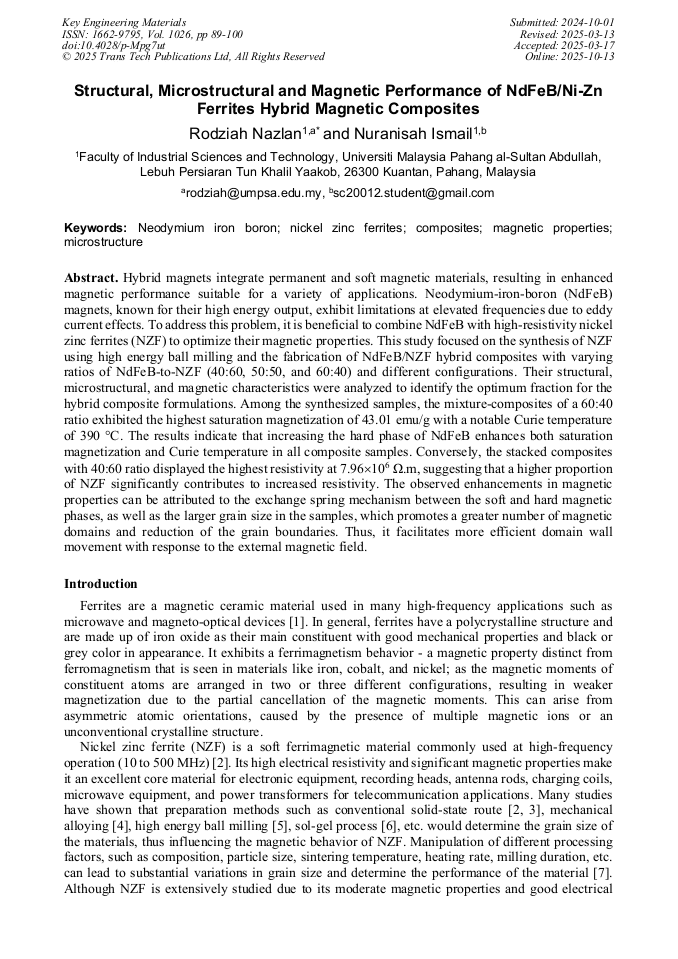

Structural, Microstructural and Magnetic Performance of NdFeB/Ni-Zn Ferrites Hybrid Magnetic Composites

Abstract:

Hybrid magnets integrate permanent and soft magnetic materials, resulting in enhanced magnetic performance suitable for a variety of applications. Neodymium-iron-boron (NdFeB) magnets, known for their high energy output, exhibit limitations at elevated frequencies due to eddy current effects. To address this problem, it is beneficial to combine NdFeB with high-resistivity nickel zinc ferrites (NZF) to optimize their magnetic properties. This study focuses on the synthesis of NZF and the fabrication of NdFeB/NZF hybrid composites with varying ratios of NdFeB-to-NZF (40:60, 50:50, and 60:40) and different configurations. Their structural, microstructural, and magnetic characteristics were analyzed to identify the optimum fraction for the hybrid composite formulations. In this work, a commercially available NdFeB and NZF were synthesized via high-energy ball milling while NdFeB was used for the composite’s fabrication. Among the synthesized samples, the mixture-composites of a 60:40 ratio exhibited the highest saturation magnetization of 43.01 emu/g with a notable Curie temperature of 390 °C. The results indicate that increasing the hard phase of NdFeB enhances both saturation magnetization and Curie temperature in all composite samples. Conversely, the stacked-composites with a 40:60 ratio displayed the highest resistivity at 7.96x10⁶ Ωm, suggesting that a higher proportion of NZF significantly contributes to increased resistivity. The observed enhancements in magnetic properties can be attributed to the exchange spring mechanism between the soft and hard magnetic phases, as well as the larger grain size in the samples, which promotes a greater number of magnetic domains and reduction of the grain boundaries. Thus, it facilitates more efficient domain wall movement in response to the external magnetic field.

• Periodical: Key Engineering Materials (Volume 1026)
• Pages: 89-100
• DOI: https://doi.org/10.4028/p-Mpg7ut
• Online since: October 2025
• Authors: Rodziah Nazlan*, Nuranisah Ismail
• Keywords: Composites, Magnetic Properties, Microstructure, Neodymium Iron Boron, Nickel Zinc Ferrite

References

[1] V. Sharma, J. Saha, S. Patnaik, B.K. Kuanr, Synthesis and characterization of yttrium iron garnet (YIG) nanoparticles – microwave material, AIP Adv. 7 (2017) 056405.

DOI: 10.1063/1.4973199

[2] M. Derakhshani, E. Taheri-Nassaj, M. Jazirehpour, S.M. Masoudpanah, Structural, magnetic, and gigahertz-range electromagnetic wave absorption properties of bulk Ni-Zn ferrite, Sci. Rep. 11 (2021) 9468-9481.

DOI: 10.1038/s41598-021-88930-0

[3] S. Soreto Teixeira, F. Amaral, M.P.F. Graca, L.C. Costa, Comparison of lithium ferrite powders prepared by sol-gel and solid state reaction methods, Mater. Sci. Eng. B. 255 (2020) 114529.

DOI: 10.1016/j.mseb.2020.114529

[4] A. Younes, N. Kherrouba, A. Bouamer, Magnetic, optical, structural and thermal properties of copper ferrite nanostructured synthesized by mechanical alloying, Micro Nano Lett. 16 (2021) 251-256.

DOI: 10.1049/mna2.12040

[5] S.K.M. Yassin, Superparamagnetic Ni0.5Zn0.5Fe2O4 nanoparticles prepared by ball milling, Appl. Phys. A: Mater. Sci. Process. 129 (2023) 672.

[6] S. Hasan & B. Azhdar, Synthesis of nickel-zinc ferrite nanoparticles by the sol-gel auto-combustion method: Study of crystal structural, cation distribution, and magnetic properties, Adv. Cond. Matter Phys. 2022 (2022) 4603855.

DOI: 10.1155/2022/4603855

[7] R. Nazlan, I. Ismail, R.S. Azis, Z. Abbas, I.R. Ibrahim, F.M. Idris, F.N. Shafiee, Dependence of magnetic and microwave loss on evolving microstructure in yttrium iron garnet, J. Mater. Sci.: Mater. Electrons. 29 (2018) 8688-8700.

DOI: 10.1007/s10854-018-8884-8

[8] Y. Yang, A. Walton, R. Sheridan, K. Guth, O. Gutfleisch, M. Buchert, B. Steenari, T.V. Gerven, P.T. Jones, K. Binnemans, REE recovery from end-of-life NdFeB permanent magnet scrap: A critical review, J. Sust. Metal. 3 (2017) 122-149.

DOI: 10.1007/s40831-016-0090-4

[9] J. Li, X. Huang, L. Zeng, B. Ouyang, X. Yu, M. Yang, B. Yang, R.S. Rawat, Z. Zhong, Tuning magnetic properties, thermal stability and microstructure of NdFeB magnets with diffusing Pr-Zn films, J. Mater. Sci. Technol. 41 (2020) 81-87.

DOI: 10.1016/j.jmst.2019.09.024

[10] B. Xie, M. Sun, B. Xu, C. Wang, H. Jiang, D. Li, Y. Li, Oxidation of stainless steel in vacuum and evolution of surface oxide scales during hot-compression bonding, Corros. Sci. 147 (2019) 41-52.

DOI: 10.1016/j.corsci.2018.11.001

[11] E. Firzer, W. Frohs, M. Heine, Optimization of stabilization and carbonization treatment of pan fibres and structural characterization of the resulting carbon fibres, Carbon, 24 (1986) 387-295.

DOI: 10.1016/0008-6223(86)90257-5

[12] F.N. Shafiee, R.S. Azis, N.H. Abdullah, M.S. Mustaffa, R. Nazlan, I. Ismail, M.N. Hamidon, I.H. Hasan, Potential patch antenna application with particle size variation in polycrystalline gadolinium iron garnet (GdIG), J. Aust. Ceram. Soc. 56 (2020) 1097-1105.

DOI: 10.1007/s41779-020-00448-2

[13] I. Ismail, M. Hashim, K.A. Matori, R. Alias, J. Hassan, Milling time and BPR dependence on permeability and losses of Ni0.5Zn0.5Fe2O4 synthesized via mechanical alloying process, J. Magn. Magn. Mater. 323 (2011) 1470-1476.

DOI: 10.1016/j.jmmm.2011.01.002

[14] Y. Wang, HA. Moghaddam, J.P. Moreno, P. Mertiny, Magnetic Filler Polymer Composites —Morphology Characterization and Experimental and Stochastic Finite Element Analyses of Mechanical Properties, Polymer (Basel) 15 (2023) 2897.

DOI: 10.3390/polym15132897

[15] U. Ulusoy, S. Cayirly, G. Bayar, H.S. Gokcen, Comparison of particle shape, surface area, and color properties of calcite particles ground by stirred and ball mill, Minerals 13 (2023) 99.

DOI: 10.3390/min13010099

[16] B. Nagarajam, Y. Wang, M. Taheri, S. Trudel, S. Bryant, A.J. Qureshi, P. Mertiny, Development and Characterization of Field Structured Magnetic Composites, Polymers 13 (2021) 2843.

DOI: 10.3390/polym13172843

[17] P. Maltoni, G. Barucca, B. Rutkowski, M.C. Spadaro, P.E. Jonsson, G. Varvaro, N. Yaacoub, J.A. De Toro, D. Peddis, R. Mathieu, Unravelling exchange coupling in ferrites nano-heterostructures, Small 20 (2024) 2304152.

DOI: 10.1002/smll.202304152

[18] F. Wang, G. Hu, P. Zhang, T. Feng, Y. Wang, R. Sun, J. Zhang, Dependence of nucleation field on the size of soft phase in magnetic hard-soft exchange coupling nanocomposites, Coatings 14 (2024) 219.

DOI: 10.3390/coatings14020219

[19] S.M. Hoque, C. Srivastava, V. Kumar, N. Venkatesh, H.N. Das, Exchange-spring mechanism of sift and hard ferrite nanocomposites, Mater. Res. Bull. 48 (2013) 2871-2877.

DOI: 10.1016/j.materresbull.2013.04.009

[20] J. Yoo & Y. Kang, Electromagnetic wave absorbing properties of Ni-Zn ferrite powder-epoxy composites in GHz range, J. Magn. Magn. Mater. 513 (2020) 167075.

DOI: 10.1016/j.jmmm.2020.167075

[21] J. Kang, C. Sun, J. Kim, J. You, M. Jang, J.W. Jeong, Y. Heo, Y. Kim, Local probing of eddy current correlated with magnetic properties, Appl. Phys. Lett. 123 (2023) 242401.

DOI: 10.1063/5.0173887

[22] N. Jahan, M.N.I. Khan, M.R. Hasan, M.S. Bashar, A. Islam, M.K. Alam, M.A. Hakim, J.I. Khandaker, Correlation among the structural, electric and magnetic properties of Al3+ substituted Ni-Zn-Co ferrites, RSC Adv. 12 (2022) 15167-15179.

DOI: 10.1039/d1ra09354a
