Effects of Gas Composition and Gas Pressure on Plasma Nitriding of Ferritic Stainless Steel Using 304 Stainless Steel Screen

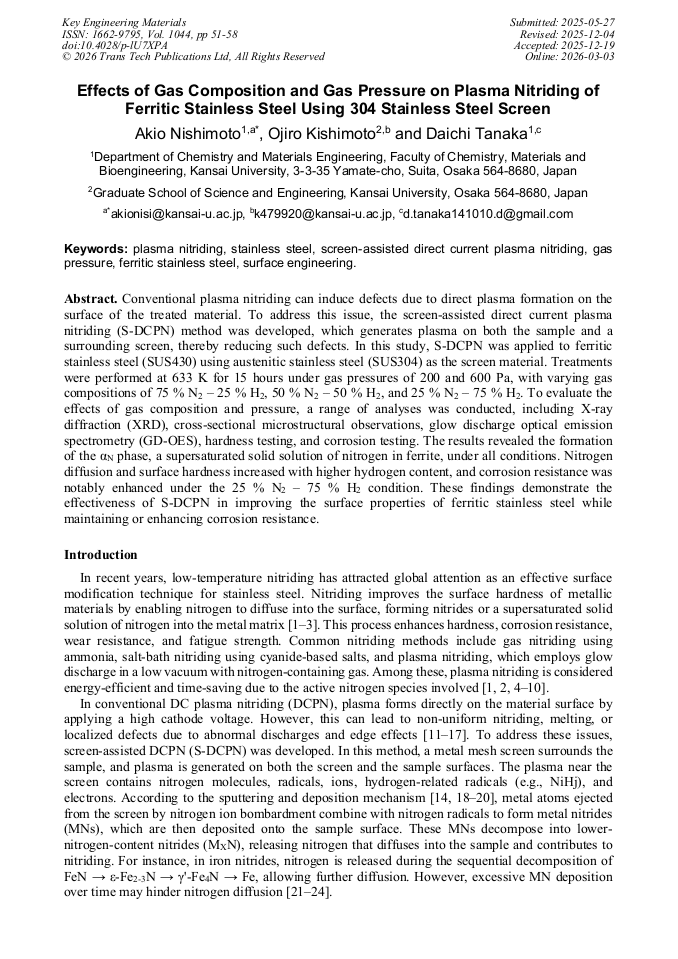

Article Preview

Abstract:

Conventional plasma nitriding can induce defects due to direct plasma formation on the surface of the treated material. To address this issue, the screen-assisted direct current plasma nitriding (S-DCPN) method was developed, which generates plasma on both the sample and a surrounding screen, thereby reducing such defects. In this study, S-DCPN was applied to ferritic stainless steel (SUS430) using austenitic stainless steel (SUS304) as the screen material. Treatments were performed at 633 K for 15 hours under gas pressures of 200 and 600 Pa, with varying gas compositions of 75 % N2 – 25 % H2, 50 % N2 – 50 % H2, and 25 % N2 – 75 % H2. To evaluate the effects of gas composition and pressure, a range of analyses was conducted, including X-ray diffraction (XRD), cross-sectional microstructural observations, glow discharge optical emission spectrometry (GD-OES), hardness testing, and corrosion testing. The results revealed the formation of the αN phase, a supersaturated solid solution of nitrogen in ferrite, under all conditions. Nitrogen diffusion and surface hardness increased with higher hydrogen content, and corrosion resistance was notably enhanced under the 25 % N2 – 75 % H2 condition. These findings demonstrate the effectiveness of S-DCPN in improving the surface properties of ferritic stainless steel while maintaining or enhancing corrosion resistance.

You might also be interested in these eBooks
Tribology, Steel and Alloys, Functional and Special Materials View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1044)

Pages:

51-58

DOI:

https://doi.org/10.4028/p-lU7XPA

Citation:

Cite this paper

Online since:

March 2026

Authors:

Akio Nishimoto*, Ojiro Kishimoto, Daichi Tanaka

Keywords:

Ferritic Stainless Steel, Gas Pressure, Plasma Nitriding, Screen-Assisted Direct Current Plasma Nitriding, Stainless Steel, Surface Engineering

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] A. Fossati, F. Borgioli, E. Galvanetto, T. Bacci, Corrosion resistance properties of glow-discharge nitrided AISI 316L austenitic stainless steel in NaCl solutions, Corros. Sci., 48 (2006) 1513-1527.

DOI: 10.1016/j.corsci.2005.06.006

Google Scholar

[2] F. Borgioli, A. Fossati, E. Galvanettol, T. Bacci, G. Pradelli, Glow discharge nitriding of AISI 316L austenitic stainless steel: Influence of treatment pressure, Surf. Coat. Technol., 200 (2006) 5503-5513.

DOI: 10.1016/j.surfcoat.2005.07.073

Google Scholar

[3] L.C. Gontijo, R. Machado, L.C. Casteletti, S.E. Kuri, P.A.P. Nascente, X-ray diffraction characterisation of expanded austenite and ferrite in plasma nitrided stainless steels, Surf. Eng., 26 (2010) 265-270.

DOI: 10.1179/026708410x12550773057983

Google Scholar

[4] F. Borgioli, E. Galvanetto, T. Bacci, Surface modification of austenitic stainless steel by means of low pressure glow-discharge treatments with nitrogen, Coatings, 9 (2019) 604.

DOI: 10.3390/coatings9100604

Google Scholar

[5] B. Larisch, U. Brusky, H.J. Spies, Plasma nitriding of stainless steels at low temperatures, Surf. Coat. Technol., 116-119 (1999) 205-211.

DOI: 10.1016/s0257-8972(99)00084-5

Google Scholar

[6] L.D. Tadepalli, A.M. Gosala, L. Kondamuru, A review on effects of nitriding of AISI409 ferritic stainless steel, Mater. Today, 26 (2020) 1014-1020.

DOI: 10.1016/j.matpr.2020.01.299

Google Scholar

[7] J. Alphonsa, S. Mukherjee, Study of plasma nitriding and nitrocarburising of AISI 430F stainless steel for high hardness and corrosion resistance, Corros. Eng. Sci. Technol., 53 (2018) 16-33.

DOI: 10.1080/1478422x.2017.1396648

Google Scholar

[8] L. Li, R. Liu, Q. Liu, Z. Wu, X. Meng, Y. Fang, Effects of initial microstructure on the low-temperature plasma nitriding of ferritic stainless steel, Coatings, 12 (2022) 1404.

DOI: 10.3390/coatings12101404

Google Scholar

[9] M.T. Umemura, L.B. Varela, C.E. Pinedo, R.C. Cozza, Assessment of tribological properties of plasma nitrided 410S ferritic-martensitic stainless steels, Wear, 426-427 (2019) 49-58.

DOI: 10.1016/j.wear.2018.12.092

Google Scholar

[10] E. Menthe, A. Bulak and J. Olfe, A Zimmermann, Improvement of the mechanical properties of austenitic stainless steel after plasma nitriding, Surf. Coat. Technol., 133-134 (2000) 259-263.

DOI: 10.1016/s0257-8972(00)00930-0

Google Scholar

[11] C. Alves, Jr., E.F. da Silva, A.E. Martinelli, Effect of workpiece geometry on the uniformity of nitrided layers, Surf. Coat. Technol., 139 (2001) 1-5.

DOI: 10.1016/s0257-8972(00)01146-4

Google Scholar

[12] C.X. Li, J. Georges, X.Y. Li, Active screen plasma nitriding of austenitic stainless steel, Surf. Eng., 18 (2002) 453-457.

DOI: 10.1179/026708402225006240

Google Scholar

[13] K.J.B. Ribeiro, R.R.M. de Sousa, Industrial application of AISI 4340 steels treated in cathodic cage plasma nitriding technique, 479 (2008) 142-147.

DOI: 10.1016/j.msea.2007.06.033

Google Scholar

[14] S.C. Gallo, H. Dong, On the fundamental mechanisms of active screen plasma nitriding, Vacuum, 84 (2009) 321-325.

DOI: 10.1016/j.vacuum.2009.07.002

Google Scholar

[15] M. Olzon-Dionysio, M. Campos, M. Kapp, S. de Souza, S.D. de Souza, Influences of plasma nitriding edge effect on properties of 316 L stainless Steel, Surf. Coat. Technol., 204 (2010) 3623-3628.

DOI: 10.1016/j.surfcoat.2010.04.034

Google Scholar

[16] Z.L. Zhang, T. Bell, Structure and corrosion resistance of plasma nitrided stainless steel, Surf. Eng., 1 (1985) 131-136.

DOI: 10.1179/sur.1985.1.2.131

Google Scholar

[17] K. Szymkiewicz, J. Morgiel, Ł. Maj, M. Pomorska, M. Tarnowski, T. Wierzchoń, TEM investigations of active screen plasma nitrided Ti6Al4V and Ti6Al7Nb alloys, Surf. Coat. Technol., 383 (2020) 125268.

DOI: 10.1016/j.surfcoat.2019.125268

Google Scholar

[18] C. Zhao, C.X. Li, H. Dong, T. Bell, Study on the active screen plasma nitriding and its nitriding mechanism, Surf. Coat. Technol., 201 (2006) 2320-2325.

DOI: 10.1016/j.surfcoat.2006.03.045

Google Scholar

[19] A. Saeed, A.W. Khan, F. Jan, M. Abrar, M. Khalid, M. Zakaullah, Validity of "sputtering and re-condensation" model in active screen cage plasma nitriding process, Appl. Surf. Sci., 273 (2013) 173-178.

DOI: 10.1016/j.apsusc.2013.02.008

Google Scholar

[20] A. Nishimoto, T. Matsukawa, H. Nii, Effect of screen open area on active screen plasma nitriding of austenitic stainless steel, ISIJ Int., 54 (2014) 916-919.

DOI: 10.2355/isijinternational.54.916

Google Scholar

[21] P. Hubbard, D. G. McCulloch, E.D. Doyle, S.J. Dowey, J.N. George, A fundamental contribution to a study of the active screen plasma nitriding process, BHM, 151 (2006) 441-445.

DOI: 10.1007/bf03165204

Google Scholar

[22] A. Nishimoto, K. Nakazawa, Active screen plasma nitriding of titanium alloy using titanium double screen, Mater. Sci., 891 (2017) 11-17.

DOI: 10.4028/www.scientific.net/msf.891.11

Google Scholar

[23] P. Hubbard, S.J. Dowey, J.G. Partridge, E. D. Doyle, D. G. McCulloch, Investigation of nitrogen mass transfer within an industrial plasma nitriding system II: application of a biased screen, Surf. Coat. Technol., 204 (2010) 1151-1157.

DOI: 10.1016/j.surfcoat.2009.08.030

Google Scholar

[24] A. Nishimoto, T. Tanaka, T. Matsukawa, Effect of surface deposited layer on active screen plasma nitriding, Mater. Perform. Charact., 5 (2016) 386-395.

DOI: 10.1520/mpc20150052

Google Scholar

[25] A. Nishimoto, T. Fukube, T. Tanaka, Effect of surface deposits on nitriding layer formation of active screen plasma nitriding, Mater. Trans., 57 (2016) 1811-1815.

DOI: 10.2320/matertrans.m2016209

Google Scholar

[26] E. de Araújo Junior, R.M. Bandeira, M.D. Manfrinato, J.A. Moreto, R. Borges, S. dos Santos Vales, P.A. Suzuki, L.S. Rossino, Effect of ionic plasma nitriding process on the corrosion and micro-abrasive wear behavior of AISI 316L austenitic and AISI 470 super-ferritic stainless steels, J. Mater. Res. Technol., 8 (2019) 2180-2191.

DOI: 10.1016/j.jmrt.2019.02.006

Google Scholar

[27] B.C.E. Schibicheski Kurelo, G.B. de Souza, F.C. Serbena, C.M. Lepienski, P.C. Borges, Mechanical properties and corrosion resistance of αN-rich layers produced by PIII on a super ferritic stainless steel, Surf. Coat. Technol., 403 (2020) 126388.

DOI: 10.1016/j.surfcoat.2020.126388

Google Scholar

[28] H. Nii, A. Nishimoto, Surface modification of ferritic stainless steel by active screen plasma nitriding, J. Phys. Conf. Ser., 379 (2012) 012052.

DOI: 10.1088/1742-6596/379/1/012052

Google Scholar

[29] A. Nishimoto, K. Nagatsuka, R. Narita, H. Nii, K. Akamatsu, Effect of gas pressure on active screen plasma nitriding response, J. ASTM Int., 8 (2011) JAI103286.

DOI: 10.1520/jai103286

Google Scholar

[30] O. Kishimoto, A. Nishimoto, Low temperature direct current plasma nitriding of ferritic stainless steel with metal screen, Heat Treating Conf. Proc., 84901 (2024) 114-121.

DOI: 10.31399/asm.cp.ifhtse2024p0114

Google Scholar

[31] L.C. Gontijo, R. Machado, L.C. Casteletti, S.E. Kuri, P.A.P. Nascente, X-ray diffraction characterisation of expanded austenite and ferrite in plasma nitrided stainless steels, Surf. Eng., 26 (2010) 265-270.

DOI: 10.1179/026708410x12550773057983

Google Scholar

[32] S. Setsuo, "Strengthening mechanism and critical strength of iron, Materia Jpn., 36 (1997) 675-679.

Google Scholar

[33] S. Hamashima, A. Nishimoto, Thickening of S-phase and Sα-phase of various stainless steels treated by low temperature plasma nitriding using screen, Mater. Trans., 63 (2022) 1170-1178.

DOI: 10.2320/matertrans.mt-m2022062

Google Scholar

[34] L.A. Luiz, B.C.E.S. Kurelo, G.B. de Souza, J. de Andrade, C.E.B. Marino, Effect of nitrogen plasma immersion ion implantation on the corrosion protection mechanisms of different stainless steels, Mater. Today, 28 (2021) 102655.

DOI: 10.1016/j.mtcomm.2021.102655

Google Scholar

[35] E. De Las Heras, G. Ybarra, D. Lamas, A. Cabo, E. Laura Dalibon, S. P. Bruhl, Plasma nitriding of 316L stainless steel in two different N2-H2 atmospheres-influence on microstructure and corrosion resistance, Surf. Coat. Technol., 313 (2017) 47-54.

DOI: 10.1016/j.surfcoat.2017.01.037

Google Scholar
