Paper Titles
Effects of Gas Composition and Gas Pressure on Plasma Nitriding of Ferritic Stainless Steel Using 304 Stainless Steel Screen
p.51
Active-Screen Plasma Nitriding of Small Thin Rolled Stainless Steel Plates
p.59
Effect of Solution Annealing and Plasma Nitriding on the Fatigue Life Change of AISI 304 Austenitic Steel
p.67
Tribological Behavior of Al₂O₃-ZrO₂ + 3Y₂O₃ Composites
p.77
Tribological Behavior of ZrO2-3Y2O3 Ceramics in Dry Reciprocating Sliding Against SiC Counterparts
p.83
Effect of Temperature, pH, and Pb(II) Ions on the Dispersion Behavior of Dilute Colloidal Bentonite Nanoclay
p.93
A Combined Numerical and Experimental Analysis of Nanofiber Effects on Ion Transport in Nanoporous Composite Membranes
p.101
Preparation and Self-Assembly Behavior of Hydrogen Bonded Cyclic Phosphazenes
p.111
Effect of Varying Fiber, Fly Ash, and Recycled Gypsum Contents on the Mechanical Properties of Fiber-Reinforced Ternary Concrete
p.121

Tribological Behavior of ZrO2-3Y2O3 Ceramics in Dry Reciprocating Sliding Against SiC Counterparts

Article Preview

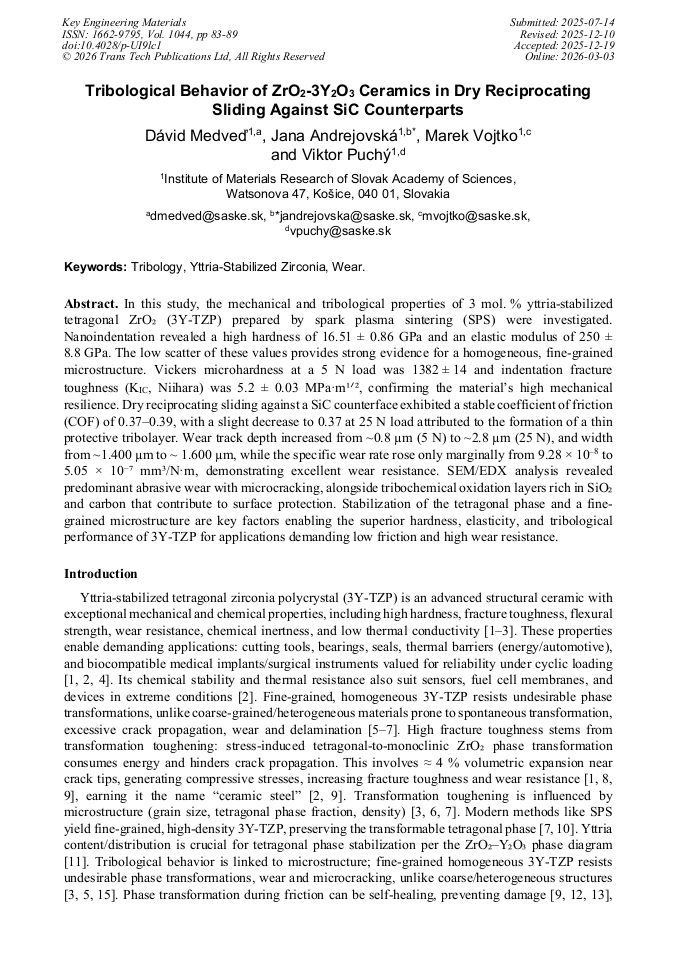

Abstract:

In this study, the mechanical and tribological properties of 3 mol. % yttria-stabilized tetragonal ZrO₂ (3Y-TZP) prepared by spark plasma sintering (SPS) were investigated. Nanoindentation revealed a high hardness of 16.51 ± 0.86 GPa and an elastic modulus of 250 ± 8.8 GPa. The low scatter of these values provides strong evidence for a homogeneous, fine-grained microstructure. Vickers microhardness at a 5 N load was 1382 ± 14 and indentation fracture toughness (KIC, Niihara) was 5.2 ± 0.03 MPa·m¹ᐟ², confirming the material’s high mechanical resilience. Dry reciprocating sliding against a SiC counterface exhibited a stable coefficient of friction (COF) of 0.37–0.39, with a slight decrease to 0.37 at 25 N load attributed to the formation of a thin protective tribolayer. Wear track depth increased from ~0.8 µm (5 N) to ~2.8 µm (25 N), and width from ~1.400 µm to ~ 1.600 µm, while the specific wear rate rose only marginally from 9.28 × 10⁻8 to 5.05 × 10⁻⁷ mm³/N·m, demonstrating excellent wear resistance. SEM/EDX analysis revealed predominant abrasive wear with microcracking, alongside tribochemical oxidation layers rich in SiO₂ and carbon that contribute to surface protection. Stabilization of the tetragonal phase and a fine-grained microstructure are key factors enabling the superior hardness, elasticity, and tribological performance of 3Y-TZP for applications demanding low friction and high wear resistance.

You might also be interested in these eBooks
Tribology, Steel and Alloys, Functional and Special Materials View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1044)

Pages:

83-89

DOI:

https://doi.org/10.4028/p-UI9lc1

Citation:

Cite this paper

Online since:

March 2026

Authors:

Dávid Medved*, Jana Andrejovská, Marek Vojtko, Viktor Puchý

Keywords:

Tribology, Wear, Yttria-Stabilized Zirconia

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] R.H.J. Hannink, P.M. Kelly, B.C Muddle, Transformation toughening in zirconia-containing ceramics, J.Amer. Ceram. Soc., 83, 3 (2000) 461-487.

DOI: 10.1111/j.1151-2916.2000.tb01221.x

Google Scholar

[2] R.C. Garvie, R.H.J. Hannink, R.T. Pascoe, Ceramic steel, Nature, 258 (1975) 703-704.

DOI: 10.1038/258703a0

Google Scholar

[3] B. Basu, B. Sreenivasulu, A. Kumar, S. Basu, Microstructure–toughness–wear relationship of tetragonal zirconia ceramics, J. Europ. Ceram. Soc., 24, 9 (2004) 1563-1570.

Google Scholar

[4] J. Chevalier, What future for zirconia as a biomaterial, Biomaterials, 27, 4 (2006) 535-543.

DOI: 10.1016/j.biomaterials.2005.07.034

Google Scholar

[5] W. He, de J. H. W. Wit, Grain-size dependence of sliding wear in tetragonal zirconia ceramics. Wear, 217, 1-2 (1998) 144-150.

Google Scholar

[6] M. Trunec, P. Stastny, J. Kastyl, P. Roupcova, Z. Chlup, 2Y-TZP ceramics with high strength and toughness by optimizing the microstructure, J. Europ. Ceram. Soc, 44, 5 (2024) 3258-3266.

DOI: 10.1016/j.jeurceramsoc.2023.12.057

Google Scholar

[7] A. Palmeira, M.P. Cangani, D. Rodrigues Jr, K. Strecker, Influence of sintering parameters on the microstructure and mechanical properties of nanosized 3Y-TZP ceramics. Ceram. Inter., 42, 1 Pt A (2016) 123-131.

DOI: 10.1590/0366-69132021673812908

Google Scholar

[8] F. Egilmez, G. Ergun, I. Cekic-Nagas, P.K. Vallittu, L.V.J. Lassila, Factors affecting the mechanical behavior of Y-TZP, J. Mech. Behav. Biomed. Mater., 37 (2014) 78-87.

DOI: 10.1016/j.jmbbm.2014.05.013

Google Scholar

[9] A. Tucci, L. Esposito, Microstructure and tribological properties of ZrO2 ceramics, Wear, 172, 2 (1994) 111-119.

DOI: 10.1016/0043-1648(94)90278-x

Google Scholar

[10] M. Díaz, Microstructure and mechanical properties of zirconia (3Y-TZP)/Zr composites prepared by wet processing and subsequent spark plasma sintering. Mater. Sci. Forum, 1016 (2022) 621-626.

DOI: 10.3390/ceramics3010007

Google Scholar

[11] O.O. Vasylkiv, Y. Sakka, V.V. Skorokhod, Hardness and fracture toughness of alumina- doped tetragonal zirconia with different yttria contents, J. Europ. Ceram. Soc., 23, 10 (2003) 1669-1676.

DOI: 10.2320/matertrans.44.2235

Google Scholar

[12] J. Chevalier, L. Gremillard, S. Deville, Low-temperature degradation of zirconia and implications for biomedical implants. Biomaterials, 30, 8 (2009) 1558-1566.

Google Scholar

[13] Y. M. Chen, B. Rigaut, F. Armanet, Wear Behaviour of partially Stabilized Zirconia High Sliding Speed, Europ. Ceram. Soc., 6 (1990) 383-390.

DOI: 10.1016/0955-2219(90)90006-2

Google Scholar

[14] W.C. Oliver, G.M. Pharr, An improved technique for determining hardness and elastic modulus using load and displacement sensing indentation experiments, J. Mater. Research, 7, 6 (1992) 1564-1583.

DOI: 10.1557/jmr.1992.1564

Google Scholar

[15] B. Basu, J. Vleugels, O. Van Der Biest, Microstructure–toughness–wear relationship of tetragonal zirconia ceramics, J. Europ. Ceram. Soc., 24, 7 (2004) 2031-2040.

DOI: 10.1016/s0955-2219(03)00355-8

Google Scholar
