Evaluation of Interface between Alumina Dispersion Strengthened Copper Composite and Precipitation Strengthened Copper

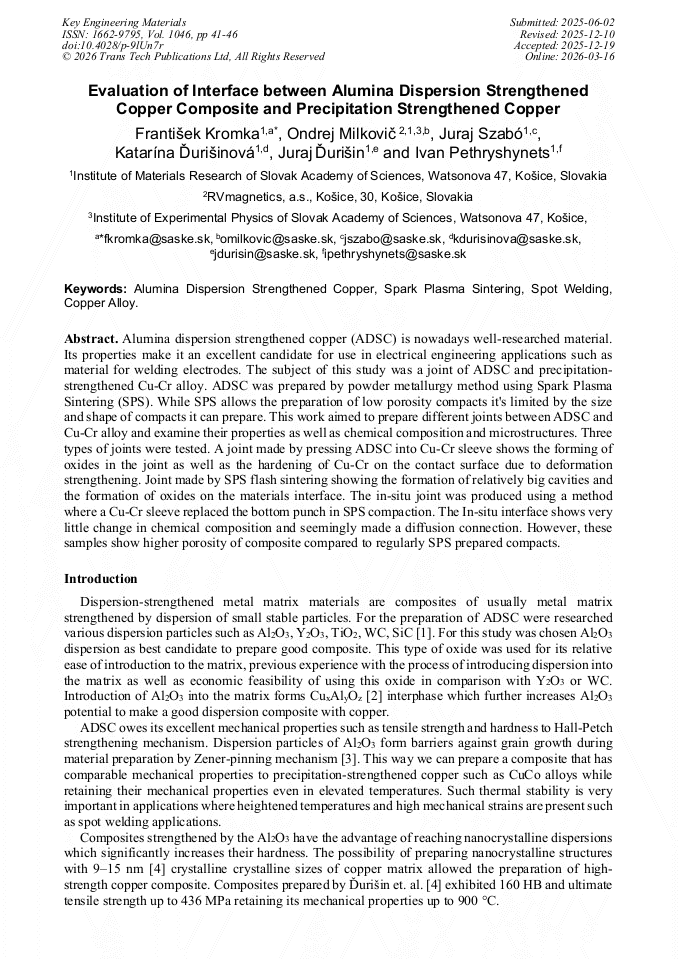

Article Preview

Abstract:

Alumina dispersion strengthened copper (ADSC) is nowadays well-researched material. Its properties make it an excellent candidate for use in electrical engineering applications such as material for welding electrodes. The subject of this study was a joint of ADSC and precipitation-strengthened Cu-Cr alloy. ADSC was prepared by powder metallurgy method using Spark Plasma Sintering (SPS). While SPS allows the preparation of low porosity compacts it's limited by the size and shape of compacts it can prepare. This work aimed to prepare different joints between ADSC and Cu-Cr alloy and examine their properties as well as chemical composition and microstructures. Three types of joints were tested. A joint made by pressing ADSC into Cu-Cr sleeve shows the forming of oxides in the joint as well as the hardening of Cu-Cr on the contact surface due to deformation strengthening. Joint made by SPS flash sintering showing the formation of relatively big cavities and the formation of oxides on the materials interface. The in-situ joint was produced using a method where a Cu-Cr sleeve replaced the bottom punch in SPS compaction. The In-situ interface shows very little change in chemical composition and seemingly made a diffusion connection. However, these samples show higher porosity of composite compared to regularly SPS prepared compacts.

You might also be interested in these eBooks
Metallurgy and Processing of Steel and Alloys, Green Building Materials and Structural Engineering View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1046)

Pages:

41-46

DOI:

https://doi.org/10.4028/p-9lUn7r

Citation:

Cite this paper

Online since:

March 2026

Authors:

František Kromka*, Ondrej Milkovič, Juraj Szabo, Katarína Ďurišinová, Juraj Ďurišin, Ivan Pethryshynets

Keywords:

Alumina Dispersion Strengthened Copper, Copper Alloy, Spark Plasma Sintering, Spot Welding

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] J.R. Groza, J.C. Gibeling, Principles of particle selection for dispersion-strengthened copper, Mater. Sci. Eng. A, 171, 1-2 (1993) 115-125.

DOI: 10.1016/0921-5093(93)90398-X

Google Scholar

[2] P.K. Jena, E.A. Brocchi, I.G. Solórzano, M.S. Motta, Identification of a third phase in Cu-Al2O3 nanocomposites prepared by chemical routes, Mater. Sci. Eng. A, 371, 1-2 (2004) 72-78.

DOI: 10.1016/S0921-5093(03)00642-7

Google Scholar

[3] K. Huang, R.E. Logé, Zener Pinning, Ref. Modul. Mater. Sci. Mater. Eng., (2016) 1-8.

DOI: 10.1016/b978-0-12-803581-8.03211-2

Google Scholar

[4] K. Ďurišinová, J. Ďurišin, M. Orolínová, M. Ďurišin, J. Szabó, Microstructure and Mechanical Properties of Nanocrystalline Dispersion Strengthened Copper, Powder. Met. Prog., 14, 1 (2014) 58-63.

DOI: 10.1016/j.matlet.2004.07.031

Google Scholar

[5] Y. Tanaka, M. Noguchi, An alumina dispersion strengthened copper composite electrode for spot welding, Weld. Int., 1, 11 (1987) 1074-1078.

DOI: 10.1080/09507118709449392

Google Scholar
