Compensating Property Fluctuations in Cold Extrusion Using Adaptive Dies

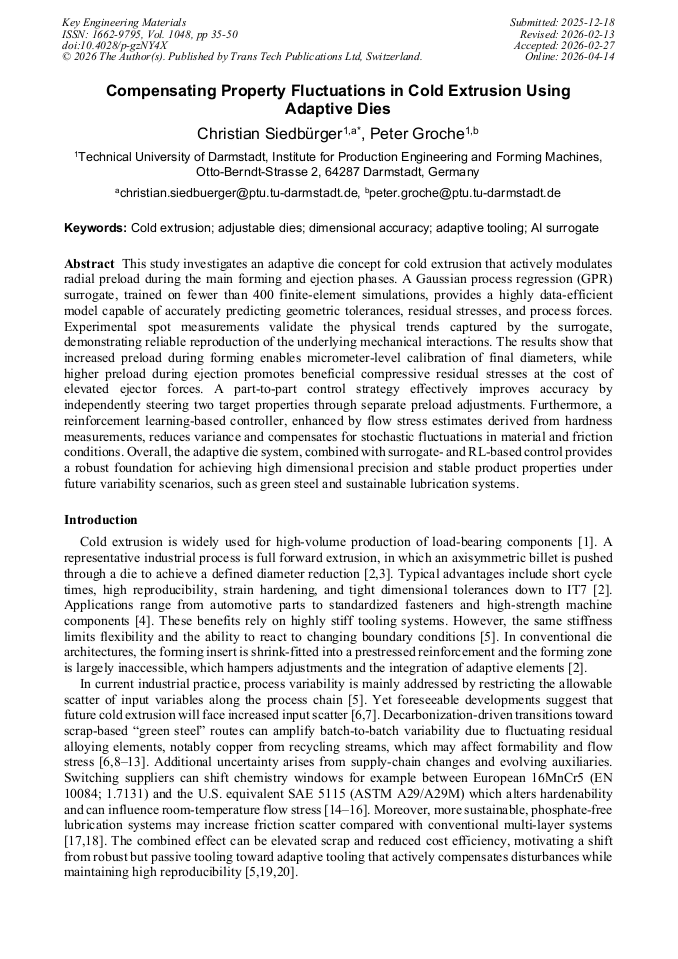

Article Preview
View Pdf By email

Abstract:

This study investigates an adaptive die concept for cold extrusion that actively modulates radial preload during the main forming and ejection phases. A Gaussian process regression (GPR) surrogate, trained on fewer than 400 finite-element simulations, provides a highly data-efficient model capable of accurately predicting geometric tolerances, residual stresses, and process forces. Experimental spot measurements validate the physical trends captured by the surrogate, demonstrating reliable reproduction of the underlying mechanical interactions. The results show that increased preload during forming enables micrometer-level calibration of final diameters, while higher preload during ejection promotes beneficial compressive residual stresses at the cost of elevated ejector forces. A part-to-part control strategy effectively improves accuracy by independently steering two target properties through separate preload adjustments. Furthermore, a reinforcement learning-based controller, enhanced by flow stress estimates derived from hardness measurements, reduces variance and compensates for stochastic fluctuations in material and friction conditions. Overall, the adaptive die system, combined with surrogate-and RL-based control provides a robust foundation for achieving high dimensional precision and stable product properties under future variability scenarios, such as green steel and sustainable lubrication systems.

You might also be interested in these eBooks
Extrusion and Drawing View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1048)

Pages:

35-50

DOI:

https://doi.org/10.4028/p-gzNY4X

Citation:

Cite this paper

Online since:

April 2026

Authors:

Christian Siedbürger*, Peter Groche

Keywords:

Adaptive Tooling, Adjustable Dies, AI Surrogate, Cold Extrusion, Dimensional Accuracy

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Y. Yuan, Y. Ren, Q. Wu, Research on Improvement of Cold Extrusion Technology of Connecting Screw, J. Phys.: Conf. Ser. 2160 (2022) 12055.

DOI: 10.1088/1742-6596/2160/1/012055

Google Scholar

[2] T. Altan, G. Ngaile, G. Shen, Cold and hot forging: Fundamentals and applications, 1st ed.

DOI: 10.31399/asm.tb.chffa.9781627083003

Google Scholar

[3] Handbook of metal forming, 1st ed., Society of Manufacturing Engineers, Dearborn, Mich, 2011.

Google Scholar

[4] P. Groche, Trends in der Kaltmassivumformung, VDI-Z 162 (2020) 58–59.

DOI: 10.37544/0042-1766-2020-01-02-58

Google Scholar

[5] D.Y. Yang, M. Bambach, J. Cao, J.R. Duflou, P. Groche, T. Kuboki, A. Sterzing, A.E. Tekkaya, C.W. Lee, Flexibility in metal forming, CIRP Annals 67 (2018) 743–765.

DOI: 10.1016/j.cirp.2018.05.004

Google Scholar

[6] J.K. Singh, A.K. Rout, Advances in Green Steel Making Technology - A Review, American Journal of Materials Engineering and Technology 6 (2018) 8–13.

Google Scholar

[7] Hasan Muslemani, Xi Liang, Katharina Kaesehage, Francisco Ascui, Jeffrey Wilson, Opportunities and challenges for decarbonizing steel production by creating markets for 'green steel' products, Journal of Cleaner Production 315 (2021) 128127.

DOI: 10.1016/j.jclepro.2021.128127

Google Scholar

[8] P. Sellamuthu, P. Hodgson, N. Stanford, Effect of copper on microstructure, recrystallization and precipitation kinetics in strip cast low carbon steel, Mater. Res. Express 6 (2019) 1265j5.

DOI: 10.1088/2053-1591/ab7310

Google Scholar

[9] B. Mishra, K. Kumbhar, K.S. Kumar, K.S. Prasad, M. Srinivas, Effect of copper addition on microstructure and mechanical properties of ultra high strength NiSiCrCoMo steel, Materials Science and Engineering: A 651 (2016) 177–183.

DOI: 10.1016/j.msea.2015.10.129

Google Scholar

[10] A. Huang, K. Wang, Y. Zhao, W. Wang, X. Wei, J. Peng, Effect of Copper Addition on the Formability of 304L Austenitic Stainless Steel, Journal of materials engineering and performance 32 (2023) 3563–3570.

DOI: 10.1007/s11665-022-07367-2

Google Scholar

[11] T. Hain, CO2-Fottprint Reduzierung in der (Kalt-)Massivumformung: Worauf kommt es an?, VDI-Jahrestreffen der Kaltmassivumformer 2023 2023 1–22.

Google Scholar

[12] European Steel Technology Platform (ESTEP), Green Steel by EAF Route: A Sustainable Value Chain in the Steel Industry, Brussels, 2019.

Google Scholar

[13] A. Gramlich, T. Hinrichs, H. Springer, U. Krupp, Recycling‐Induced Copper Contamination of a 42CrMo4 Quench and Tempering Steel: Alterations in Transformation Behavior and Mechanical Properties, steel research int. 94 (2023).

DOI: 10.1002/srin.202200623

Google Scholar

[14] R. Nkhoma, K.A. Annan, C. Siyasiya, Effect of adding Cr, Ni and Mo on quench and temper microstructure and mechanical properties of a Si-Mn spring steel, Materials Today: Proceedings 56 (2022) 1629–1634.

DOI: 10.1016/j.matpr.2021.09.395

Google Scholar

[15] S. Arunkumar, M. Chandrasekaran, V. Muthuraman, T. Vinod Kumar, Study properties and mechanical behavior of the shaft material 16MnCr5, Materials Today: Proceedings 37 (2021) 2458–2461.

DOI: 10.1016/j.matpr.2020.08.286

Google Scholar

[16] Handbuch der europäischen Eisen- und Stahlwerke, 16th ed., Montan- und Wirtschaftsverlag, Düsseldorf, 2012.

Google Scholar

[17] S. Volz, J. Launhardt, N. Bay (1), C. Huc, P. Moreaud, L. Dubard, C. Nielsenb, K. Hayakawae, K. Kitamuraf, P. Groche (2) a*, International round robin test of environmentally benign lubricants for cold forging.

DOI: 10.1016/j.cirp.2023.03.019

Google Scholar

[18] P. Groche, S. Zang, C. Müller, D. Bodenmüller, A study on the performance of environmentally benign lubricants at elevated temperatures in bulk metal forming, Journal of Manufacturing Processes 20 (2015) 425–430.

DOI: 10.1016/j.jmapro.2014.06.004

Google Scholar

[19] P. Groche, Flexible Forming – A Key Factor for Sustainable Manufacturing, Proceedings of the 9th JSTP International Seminar on Precision Forging (ISPF 2024) March 11–14, Kyoto, Japan 2024 10–18.

Google Scholar

[20] J.M. Allwood, S.R. Duncan, J. Cao, P. Groche, G. Hirt, B. Kinsey, T. Kuboki, M. Liewald, A. Sterzing, A.E. Tekkaya, Closed-loop control of product properties in metal forming, CIRP Annals 65 (2016) 573–596.

DOI: 10.1016/j.cirp.2016.06.002

Google Scholar

[21] K. Siimut, G. Bissacco, K.M. Madsen, E. Ceron, C.V. Nielsen, Tooling system for an ironing punch with adjustable diameter, Journal of Manufacturing Processes 155 (2025) 681–700.

DOI: 10.1016/j.jmapro.2025.10.035

Google Scholar

[22] P. Tchasse, M. Liewald, T. Deliktas, Development of an intelligent metal forming robot and application to multi-stage cold forging, Prod. Eng. Res. Devel. 19 (2025) 731–749.

DOI: 10.1007/s11740-025-01330-5

Google Scholar

[23] C. Soyarslan, Prevention of Internal Cracks in Forward Extrusion by Means of Counter Pressure: A Numerical Treatise, Steel Research International 2009 (2009).

Google Scholar

[24] H. Hoche, A. Balser, M. Oechsner, A. Franceschi, P. Groche, Enhancement of the residual stresses of cold full‐forward extruded parts by application of an active counter punch, Materialwiss. Werkstofftech. 50 (2019) 669–681.

DOI: 10.1002/mawe.201900050

Google Scholar

[25] W. Volk, Targeted Use of Forming-induced Residual Stresses in Metal Components, Technical University of Munich, 2024.

Google Scholar

[26] J. Baumgarten, Ansätze zur Kompensation der elastischen Matrizenaufweitung bei Kaltmassivumformprozessen. Dissertation, Hannover, 2003.

Google Scholar

[27] F. Jütte, Beitrag zur Präzisionsumformen von Stirnradverzahnungen. Dissertation, Paderborn, 1986.

Google Scholar

[28] A. Franceschi, J. Stahl, C. Kock, R. Selbmann, S. Ortmann-Ishkina, A. Jobst, M. Merklein, B. Kuhfuß, M. Bergmann, B.-A. Behrens, W. Volk, P. Groche, Strategies for residual stress adjustment in bulk metal forming, Arch Appl Mech 91 (2021) 3557–3577.

DOI: 10.1007/s00419-021-01903-7

Google Scholar

[29] P. Pelz, Uncertainty in Mechanical Engineering II, Trans Tech Publications Limited, Pfaffikon, 2015.

Google Scholar
