Using Tungsten Inert Gas Welding Equipment to Locally Heat Tubes and Achieve Inhomogeneous Thickness in Tube Sinking Processes

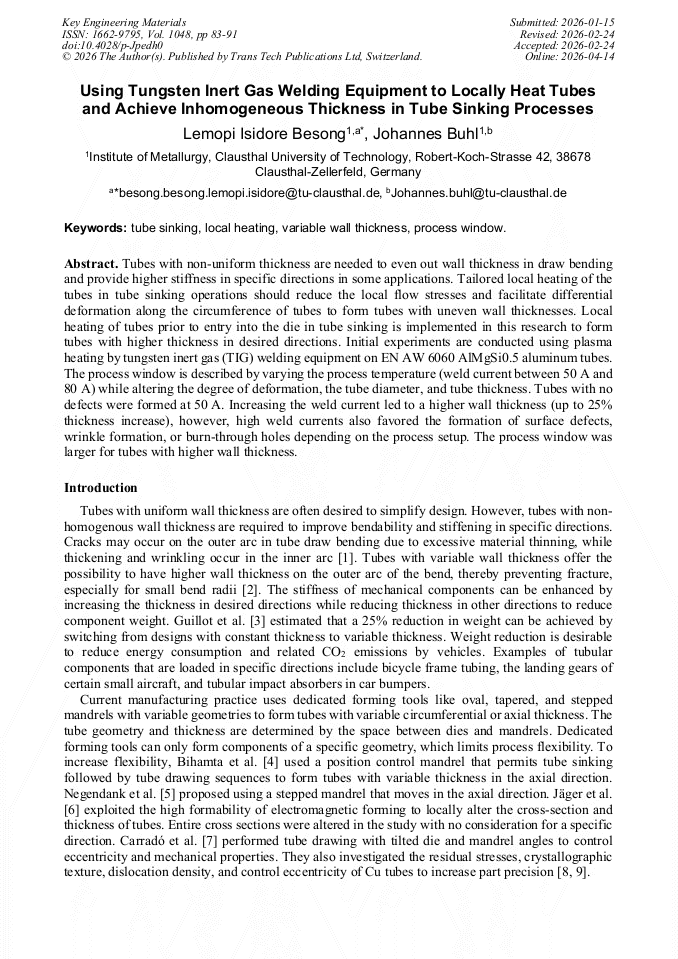

Article Preview
View Pdf By email

Abstract:

Abstract. Tubes with non-uniform thickness are needed to even out wall thickness in draw bending and provide higher stiffness in specific directions in some applications. Tailored local heating of the tubes in tube sinking operations should reduce the local flow stresses and facilitate differential deformation along the circumference of tubes to form tubes with uneven wall thicknesses. Local heating of tubes prior to entry into the die in tube sinking is implemented in this research to form tubes with higher thickness in desired directions. Initial experiments are conducted using plasma heating by tungsten inert gas (TIG) welding equipment on EN AW 6060 AlMgSi0.5 aluminum tubes. The process window is described by varying the process temperature (weld current between 50 A and 80 A) while altering the degree of deformation, the tube diameter, and tube thickness. Tubes with no defects were formed at 50 A. Increasing the weld current led to a higher wall thickness (up to 25% thickness increase), however, high weld currents also favored the formation of surface defects, wrinkle formation, or burn-through holes depending on the process setup. The process window was larger for tubes with higher wall thickness.

You might also be interested in these eBooks
Extrusion and Drawing View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1048)

Pages:

83-91

DOI:

https://doi.org/10.4028/p-Jpedh0

Citation:

Cite this paper

Online since:

April 2026

Authors:

Lemopi Isidore Besong*, Johannes Buhl

Keywords:

Local Heating, Process Window, Tube Sinking, Variable Wall Thickness

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Engel, B., and H. Hassan. "Advanced model for calculation of the neutral axis shifting and the wall thickness distribution in rotary draw bending processes." Int J Mech, Aerosp Ind Mechatronics Eng 9.2 (2015): 239-243.

DOI: 10.15224/978-1-63248-080-4-28

Google Scholar

[2] Christopher, H.; Rainer, S.; Bernd, E. Rotary-draw-bending using tools with reduced geometries. Procedia Manuf. 2018, 15, 804–811.

DOI: 10.1016/j.promfg.2018.07.410

Google Scholar

[3] M. Guillot, M. Fafard, S. Girard, A. Rahem, G. D'Amours. Experimental exploration of the aluminum tube drawing process for producing variable wall thickness components used in light structural applications. SAE Technical Paper 2010-01-0222, 2010, https://doi.org/10.4271/ 2010-01-0222.

DOI: 10.4271/2010-01-0222

Google Scholar

[4] R. Bihamta, Q.H. Bui, M. Guillot, G. D'Amours, A. Rahem, M. Fafard. A new method for production of variable thickness aluminium tubes: Numerical and experimental studies. JMPT 211 (2011) 578–58.

DOI: 10.1016/j.jmatprotec.2010.11.012

Google Scholar

[5] M. Negendank, S. Müller, W. Reimers. Extrusion of aluminum tubes with axially graded wall thickness and mechanical characterization. Procedia CIRP 18 (2014) 3–8.

DOI: 10.1016/j.procir.2014.06.098

Google Scholar

[6] A. Jäger, D. Risch, A.E. Tekkaya. Thermo-mechanical processing of aluminum profiles by integrated electromagnetic compression subsequent to hot extrusion. Journal of Materials Processing Technology 211 (2011) 936–943.

DOI: 10.1016/j.jmatprotec.2010.06.016

Google Scholar

[7] Carradó A, Foadian F, Palkowski H. Tube drawing with tilted and shifted die, in: 60 Excellent Inventions in Metal Forming, Edited by Tekkaya AE, Homberg, W, Brosius A, 01/2015, Springer, ISBN: 978-3-662-46312-3.

DOI: 10.1007/978-3-662-46312-3_67

Google Scholar

[8] Foadian F, Carradó A, Palkowski H. Precision Tube Production: Influencing the Eccentricity and Residual Stresses by Tilting and Shifting. J. of Materials Processing Technology, 2015, 155-162.

DOI: 10.1016/j.jmatprotec.2015.03.008

Google Scholar

[9] Al-Hamdany N, Salih MZ, Palkowski H, Carradò A, Gan W, Schell N, Brokmeier HG. Tube drawing with tilted die: texture, dislocation density and mechanical properties. Metals 2021, 11, 638.

DOI: 10.3390/met11040638

Google Scholar

[10] O. Okman, M. Özmen, H. Huwiler, A. Tekkaya. Free forming of locally heated specimens, Int. J. Mach. Tools Manuf. 47 (2000) 1197–1205. https://doi.org/10.1016/j.ijmachtools. 2006.08.022.

DOI: 10.1016/j.ijmachtools.2006.08.022

Google Scholar

[11] B. Boljanovic. Metal shaping processes casting and molding particulate processing deformation processes and metal removal. 2009 Industrial Press Inc. New York.

Google Scholar
