Investigation of 3D Printing Parameters on Cooling Rate, Crystallinity, and Tensile Properties of Recycled Polyethylene Terephthalate

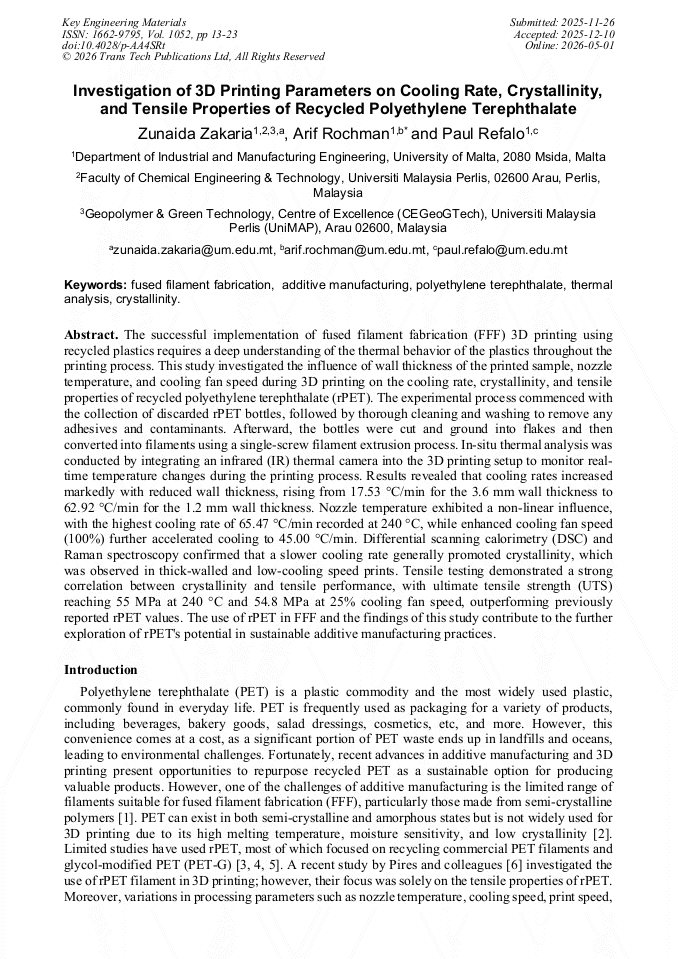

Article Preview

Abstract:

The successful implementation of fused filament fabrication (FFF) 3D printing using recycled plastics requires a deep understanding of the thermal behavior of the plastics throughout the printing process. This study investigated the influence of wall thickness of the printed sample, nozzle temperature, and cooling fan speed during 3D printing on the cooling rate, crystallinity, and tensile properties of recycled polyethylene terephthalate (rPET). The experimental process commenced with the collection of discarded rPET bottles, followed by thorough cleaning and washing to remove any adhesives and contaminants. Afterward, the bottles were cut and ground into flakes and then converted into filaments using a single-screw filament extrusion process. In-situ thermal analysis was conducted by integrating an infrared (IR) thermal camera into the 3D printing setup to monitor real-time temperature changes during the printing process. Results revealed that cooling rates increased markedly with reduced wall thickness, rising from 17.53 °C/min for the 3.6 mm wall thickness to 62.92 °C/min for the 1.2 mm wall thickness. Nozzle temperature exhibited a non-linear influence, with the highest cooling rate of 65.47 °C/min recorded at 240 °C, while enhanced cooling fan speed (100%) further accelerated cooling to 45.00 °C/min. Differential scanning calorimetry (DSC) and Raman spectroscopy confirmed that a slower cooling rate generally promoted crystallinity, which was observed in thick-walled and low-cooling speed prints. Tensile testing demonstrated a strong correlation between crystallinity and tensile performance, with ultimate tensile strength (UTS) reaching 55 MPa at 240 °C and 54.8 MPa at 25% cooling fan speed, outperforming previously reported rPET values. The use of rPET in FFF and the findings of this study contribute to the further exploration of rPET's potential in sustainable additive manufacturing practices.

You might also be interested in these eBooks
Additive Manufacturing, Biodiesel, Pollutants Removal and Water Treatment View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1052)

Pages:

13-23

DOI:

https://doi.org/10.4028/p-AA4SRt

Citation:

Cite this paper

Online since:

May 2026

Authors:

Zunaida Zakaria*, Arif Rochman, Paul Refalo

Keywords:

Additive Manufacturing, Crystallinity, Fused Filament Fabrication, Polyethylene Terephthalate, Thermal Analysis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] N.E. Zander, M. Gillan, R.H. Lambeth, Recycled polyethylene terephthalate as a new FFF feedstock material. Addit. Manuf. 21 (2018) 174-182.

DOI: 10.1016/j.addma.2018.03.007

Google Scholar

[2] K.Q. Nguyen, P.Y. Vuillaume, L. Hu, J. López-Beceiro, P. Cousin, S. Elkoun, S., M. Robert, Recycled, bio-based, and blended composite materials for 3D printing filament: Pros and cons—A Review, J. Mater. Sci. Appl. 14(3) (2023) 148-185.

DOI: 10.4236/msa.2023.143010

Google Scholar

[3] H. Schneevogt, K. Stelzner, B. Yilmaz, B.E. Abali, A. Klunker, A., C. Völlmecke, Sustainability in additive manufacturing: Exploring the mechanical potential of recycled PET filaments, Compos. Adv. Mater.  30 (2021) 26349833211000063.

DOI: 10.1177/26349833211000063

Google Scholar

[4] B. Van de Voorde, A. Katalagarianakis, S. Huysman, A. Toncheva, J.M. Raquez, I. Duretek, C. Holzer, L. Cardon, K.V. Bernaerts, D. Van Hemelrijck, S. Van Vlierberghe, Effect of extrusion and fused filament fabrication processing parameters of recycled poly (ethylene terephthalate) on the crystallinity and mechanical properties, Addit. Manuf. 50 (2022) 102518.

DOI: 10.1016/j.addma.2021.102518

Google Scholar

[5] M.A. Olawumi, B.I. Oladapo, T.O. Olugbade, Evaluating the impact of recycling on polymer of 3D printing for energy and material sustainability. Resour. Conserv. Recycl. 209 (2024) 107769.

DOI: 10.1016/j.resconrec.2024.107769

Google Scholar

[6] P. Pires, M.L.D Aguiar, A.C. Vieira, Mechanical performance of rPET filament obtained by thermal drawing for FFF additive manufacturing, J. Manuf. Mater. Process. 9(1) (2025) 26.

DOI: 10.3390/jmmp9010026

Google Scholar

[7] N. Schiavone, V. Verney, H. Askanian, (2020). Effect of 3D printing temperature profile on polymer materials behavior, 3D Print. Addit. Manuf. 7(6) (2020) 311-325.

DOI: 10.1089/3dp.2020.0175

Google Scholar

[8] F. Ferrari, C. Esposito Corcione, F. Montagna, A. Maffezzoli, 3D printing of polymer waste for improving people's awareness about marine litter, Polym. 12(8) ( 2020) 1738.

DOI: 10.3390/polym12081738

Google Scholar

[9] B. Demirel, A. Yaraş, H. and Elçiçek, Crystallization behavior of PET materials, (2011).

Google Scholar

[10] R.S. Porter, Macromolecular Physics, Volume 3—Crystal Melting, Bernhard Wunderlich. Academic Press, Wiley Online Library, New York, 1980.

DOI: 10.1002/pol.1980.130181214

Google Scholar

[11] J. Andrzejewski, P. Chmielewski, F. Osinski, M. Markowski, L. Marciniak-Podsadna, A. Piasecki, Use of Recycled Poly (ethylene terephthalate)-Based (rPET) Blends in Additive Manufacturing Techniques to Prepare Sustainable, Tough, and Heat-Resistant Parts, ACS Sustainable Chem. Eng.12(47) (2024) 17383-17405.

DOI: 10.1021/acssuschemeng.4c07885

Google Scholar

[12] J. Vaucher, A. Demongeot, V. Michaud, Y. Leterrier, Recycling of bottle grade PET: influence of HDPE contamination on the microstructure and mechanical performance of 3D printed parts, Polym.14(24) (2022) 5507.

DOI: 10.3390/polym14245507

Google Scholar

[13] B. Van de Voorde, A. Katalagarianakis, S. Huysman, A. Toncheva, J.M. Raquez, I. Duretek, C. Holzer, L. Cardon, K.V. Bernaerts, D. Van Hemelrijck, L. Pyl, Effect of extrusion and fused filament fabrication processing parameters of recycled poly (ethylene terephthalate) on the crystallinity and mechanical properties, Addit. Manuf. 50 (2022) 102518.

DOI: 10.1016/j.addma.2021.102518

Google Scholar

[14] K.G. Kichatov, T.R. Prosochkina, F.M. Kalmykov, A.F. Shakirov, V.N. Gusakov, F.S. Vil'danov, Raman Spectroscopy as a Means for the Rapid Determination of the Phase Structure of Polyethylene Terephthalate, Chem. Technol. Fuels Oils. (2025) 1-5.

DOI: 10.1007/s10553-025-01873-4

Google Scholar

[15] N. Everall, P. Tayler, J.M. Chalmers, D. MacKerron, R. Ferwerda, J.H. Van der Maas, Study of density and orientation in poly (ethylene terephthalate) using Fourier transform Raman spectroscopy and multivariate data analysis. Polym. 35(15) (1994) 3184-3192.

DOI: 10.1016/0032-3861(94)90120-1

Google Scholar

[16] M. Bouita, J. P. Tinnes, P. Bourson, M. Malfois, M. Ponçot, A new Raman spectroscopy‐based method for monitoring the crystallinity ratio of polyethylene terephthalate, J. Raman Spectrosc. 54(2) (2023) 225-232.

DOI: 10.1002/jrs.6473

Google Scholar

[17] K.B. Hafsia, M. Ponçot, D. Chapron, I. Royaud, A. Dahoun, P. Bourson, A novel approach to study the isothermal and non-isothermal crystallization kinetics of Poly (Ethylene Terephthalate) by Raman spectroscopy, J. Polym. Res. 23(5) (2016) 93.

DOI: 10.1007/s10965-016-0984-7

Google Scholar

[18] M.Vasudeva, U.K. Adarsh, A.K. Warrier, S.D. George, V.K. Unnikrishnan, Performance evaluation of a hyphenated laser spectroscopy system with conventional methods for microplastic analysis, Sci. Rep. 14(1) (2024) 19327.

DOI: 10.1038/s41598-024-70501-8

Google Scholar

[19] B. Cruz, A. Can-Ortíz, Z. Valdez-Nava, I. Gómez, Drop-cast graphene-p3ht composite for flexible electronics applied over polyethylene terephthalate obtained from one-use plastic bottles, Int. J. Mater. Res. 113(1) (2022) 69-79.

DOI: 10.1515/ijmr-2021-8432

Google Scholar

[20] F.J. Boerio, S.K. Bahl, G.E. McGraw, Vibrational analysis of polyethylene terephthalate and its deuterated derivatives, J. Polym. Sci., Polym. Phys. Ed.  14(6) (1976) 1029-1046.

DOI: 10.1002/pol.1976.180140607

Google Scholar

[21] N. Bolanakis, E. Maravelakis, V. Papadakis, D. Kalderis, N. Michailidis, A. Argyros, N. Mountakis, M. Petousis, N. Vidakis, Valorization of Biochar as a Reinforcement Agent in Polyethylene Terephthalate Glycol for Additive Manufacturing: A Comprehensive Content Optimization Course, J. Manuf. Mater. Process. 9(2) (2025) 68.

DOI: 10.3390/jmmp9020068

Google Scholar

[22] J. S. Kim, M. Lewin, Bulkin, B. J. (1986). Conformational reorganization viewed by the raman spectrum of aromatic polyesters, J. Polym. Sci., Part B: Polym. Phys. 24(8) (1986) 1783-1789.

DOI: 10.1002/polb.1986.090240813

Google Scholar

[23] L. Wei, J. Jiang, M. Shan, W. Chen, Y. Deng, G. Xue, D. Zhou, Integration of ultrafast scanning calorimetry with micro-Raman spectroscopy for investigation of metastable materials, Rev. Sci. Instrum 85(7) (2014).

DOI: 10.1063/1.4889882

Google Scholar

[24] B.J., Bulkin, M. Lewin, F.J. DeBlase, Conformational change, chain orientation, and crystallinity in poly (ethylene terephthalate) yarns: Raman spectroscopic study, Macromolecules. 18(12) (1985) 2587-2594.

DOI: 10.1021/ma00154a039

Google Scholar

[25] M. Bustos Seibert, G.A. Mazzei Capote, M. Gruber, W. Volk, T.A. Osswald, Manufacturing of a PET filament from recycled material for material extrusion (MEX), Recycling, 7(5) (2022) 69.

DOI: 10.3390/recycling7050069

Google Scholar

[26] R. Quelho de Macedo, R.T.L. Ferreira, K. Jayachandran, Determination of mechanical properties of FFF 3D printed material by assessing void volume fraction, cooling rate and residual thermal stresses, Rapid Prototyping J. 25(10) (2019) 1661-1683.

DOI: 10.1108/rpj-08-2018-0192

Google Scholar
