Comprehensive Nonlinear Vibration Analysis of PLA Cantilever Plates: Analytical, Numerical, and Experimental Approaches

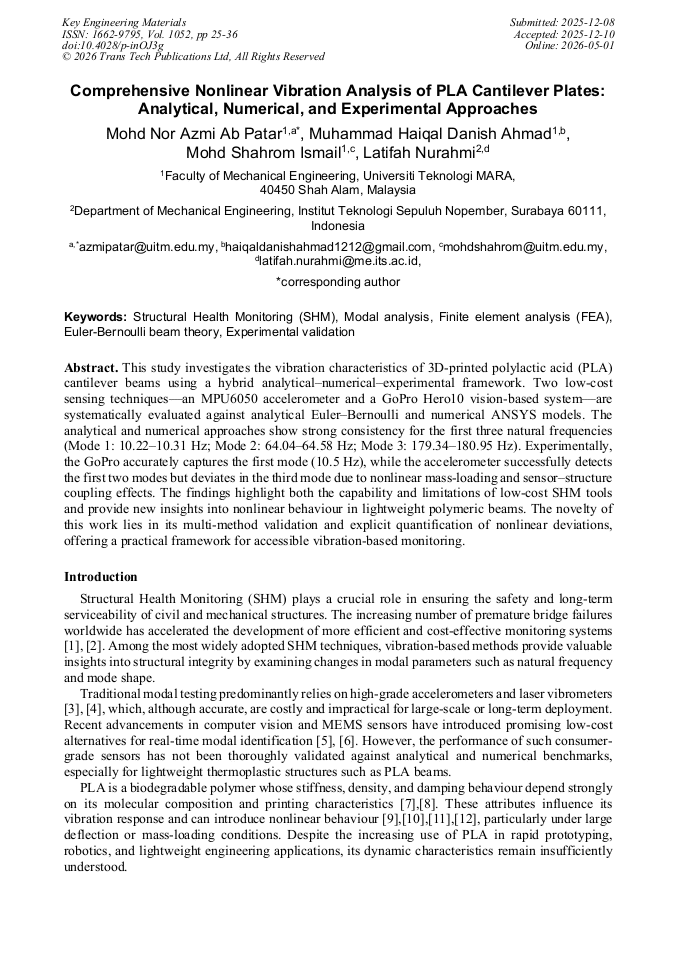

Article Preview

Abstract:

This study investigates the vibration characteristics of 3D-printed polylactic acid (PLA) cantilever beams using a hybrid analytical–numerical–experimental framework. Two low-cost sensing techniques—an MPU6050 accelerometer and a GoPro Hero10 vision-based system—are systematically evaluated against analytical Euler–Bernoulli and numerical ANSYS models. The analytical and numerical approaches show strong consistency for the first three natural frequencies (Mode 1: 10.22–10.31 Hz; Mode 2: 64.04–64.58 Hz; Mode 3: 179.34–180.95 Hz). Experimentally, the GoPro accurately captures the first mode (10.5 Hz), while the accelerometer successfully detects the first two modes but deviates in the third mode due to nonlinear mass-loading and sensor–structure coupling effects. The findings highlight both the capability and limitations of low-cost SHM tools and provide new insights into nonlinear behaviour in lightweight polymeric beams. The novelty of this work lies in its multi-method validation and explicit quantification of nonlinear deviations, offering a practical framework for accessible vibration-based monitoring.

You might also be interested in these eBooks
Additive Manufacturing, Biodiesel, Pollutants Removal and Water Treatment View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1052)

Pages:

25-36

DOI:

https://doi.org/10.4028/p-inOJ3g

Citation:

Cite this paper

Online since:

May 2026

Authors:

Mohd Nor Azmi Ab Patar*, Muhammad Haiqal Danish Ahmad, Mohd Shahrom Ismail, Latifah Nurahmi

Keywords:

Euler-Bernoulli Beam Theory, Experimental Validation, Finite Element Analysis (FEA), Modal Analysis, Structural Health Monitoring (SHM)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] A.S. Azhar, S.A. Kudus, A. Jamadin, N.K. Mustaffa, and K. Sugiura, "Recent vibration-based structural health monitoring on steel bridges: Systematic Literature Review," Ain Shams Engineering Journal, vol. 15, no. 3, p.102501, Mar. 2024

DOI: 10.1016/j.asej.2023.102501

Google Scholar

[2] D. Xu, X. Xu, M. C. Forde, and A. Caballero, "Concrete and steel bridge structural health monitoring—insight into choices for Machine Learning Applications," Construction and Building Materials, vol. 402, p.132596, Oct. 2023

DOI: 10.1016/j.conbuildmat.2023.132596

Google Scholar

[3] M.N.A.B. Ab Patar, T. Komeda and J. Mahmud, "Force assisted hand and finger device for rehabilitation," 2014 International Symposium on Technology Management and Emerging Technologies, Bandung, Indonesia, 2014, pp.133-138.

DOI: 10.1109/ISTMET.2014.6936493

Google Scholar

[4] E. Byun and J. Lee, "Vision-based virtual vibration sensor using error calibration convolutional neural network with signal augmentation," Mechanical Systems and Signal Processing, vol. 200, p.110607, Oct. 2023

DOI: 10.1016/j.ymssp.2023.110607

Google Scholar

[5] X. Liu et al., "Nonlinear vibration analysis of carbon fiber-reinforced composites with frequency-dependence and strain-dependence: Experimental and theoretical studies," Thin-Walled Structures, vol. 183, p.110369, Feb. 2023

DOI: 10.1016/j.tws.2022.110369

Google Scholar

[6] Q. Abbas, R. Nawaz, H. Yaqoob, H. M. Ali, and M. M. Jamil, "Nonlinear vibration analysis of cantilever beams: Analytical, numerical and experimental perspectives," Partial Differential Equations in Applied Mathematics, vol. 13, p.101115, Mar. 2025

DOI: 10.1016/j.padiff.2025.101115

Google Scholar

[7] S.S. Chinka, S.R. Putti, and B. K. Adavi, "Modal Testing and evaluation of cracks on cantilever beam using mode shape curvatures and natural frequencies," Structures, vol. 32, pp.1386-1397, Aug. 2021

DOI: 10.1016/j.istruc.2021.03.049

Google Scholar

[8] M. Vafaei and S. C. Alih, "Adequacy of first mode shape differences for damage identification of cantilever structures using neural networks," Neural Computing and Applications, vol. 30, no. 8, p.2509–2518, Jan. 2017

DOI: 10.1007/s00521-017-2846-6

Google Scholar

[9] M. Gürgöze, "On the representation of a cantilevered beam carrying a tip mass by an equivalent spring–mass system," Journal of Sound and Vibration, vol. 282, no. 1–2, p.538–542, Apr. 2005

DOI: 10.1016/j.jsv.2004.04.006

Google Scholar

[10] O. Çuvalcı, F. Ünker, T. Batuhan Baturalp, U. Gülbulak, and A. Ertaş, "Modal control of cantilever beam using a gyrostabiliser," Sound&Vibration, vol. 55, no. 4, p.281–294, 2021

DOI: 10.32604/sv.2021.015705

Google Scholar

[11] A.I. Sadaf et al., "Harnessing vibrations: A review on structural architecture and design ideology of the cantilever beam based piezoelectric energy harvesters," Applied Energy, vol. 396, p.126286, Oct. 2025

DOI: 10.1016/j.apenergy.2025.126286

Google Scholar

[12] R. K. Dangarwala and K. V. Nagendra Gopal, "Coupled free vibration analysis of rotating non-uniform cantilever beams by an element-wise Ritz method using local hierarchical functions," Computers & Structures, vol. 288, p.107133, Nov. 2023

DOI: 10.1016/j.compstruc.2023.107133

Google Scholar

[13] M. Achenef Eshete, S. A. Adimass, and V. Paramasivam, "Numerical and experimental study of the effect of an edge crack on the vibration characteristics of UD and quasi-isotropic GFRP cantilever composite beam," Scientific Reports, vol. 15, no. 1, Mar. 2025

DOI: 10.1038/s41598-025-93201-3

Google Scholar

[14] A. Joubert, G. Allaire, S. Amstutz, and J. Diani, "Damping optimisation of viscoelastic cantilever beams and plates under free vibration," Computers & Structures, vol. 268, p.106811, Aug. 2022

DOI: 10.1016/j.compstruc.2022.106811

Google Scholar

[15] M.P. Rezaei, G. Kudra, M. Ghodsi, and J. Awrejcewicz, "Overcoming stretching and shortening assumptions in Euler–Bernoulli theory using nonlinear Hencky's beam models: Applicable to partly-shortened and partly-stretched beams," Journal of Sound and Vibration, vol. 597, p.118807, Feb. 2025

DOI: 10.1016/j.jsv.2024.118807

Google Scholar

[16] J.-C. Cortés, E. López-Navarro, P. Martínez-Rodríguez, J.-V. Romero, and M.-D. Roselló, "Extending the analysis of the euler–bernoulli model for a stochastic static cantilever beam: Theory and simulations," Probabilistic Engineering Mechanics, vol. 74, p.103493, Oct. 2023

DOI: 10.1016/j.probengmech.2023.103493

Google Scholar

[17] D. Ahiwale, H. Madake, N. Phadtare, A. Jarande, and D. Jambhale, "Modal analysis of cracked cantilever beam using ANSYS Software," Materials Today: Proceedings, vol. 56, p.165–170, 2022

DOI: 10.1016/j.matpr.2022.01.055

Google Scholar

[18] F.L. Guan, A.J. Xu, and G.Y. Jiang, "An improved fast camera calibration method for mobile terminals," Journal of Information Processing Systems, vol. 15, no. 5, p.1082–1095, 2019.

Google Scholar

[19] A.S. Ahmed and Q. Al-Gayem, "Three-axes MEMS calibration using Kalman filter and Delaunay triangulation algorithm," Applied Computational Intelligence and Soft Computing, vol. 2023, p.1–12, Nov. 2023

DOI: 10.1155/2023/7658064

Google Scholar

[20] T. Wang, S. Zhong, H. Luo, and N. Kuang, "Drift error calibration method based on Multi-MEMS Gyroscope Data Fusion," International Journal of Precision Engineering and Manufacturing, vol. 24, no. 10, pp.1835-1844, Jul. 2023

DOI: 10.1007/s12541-023-00850-3

Google Scholar
