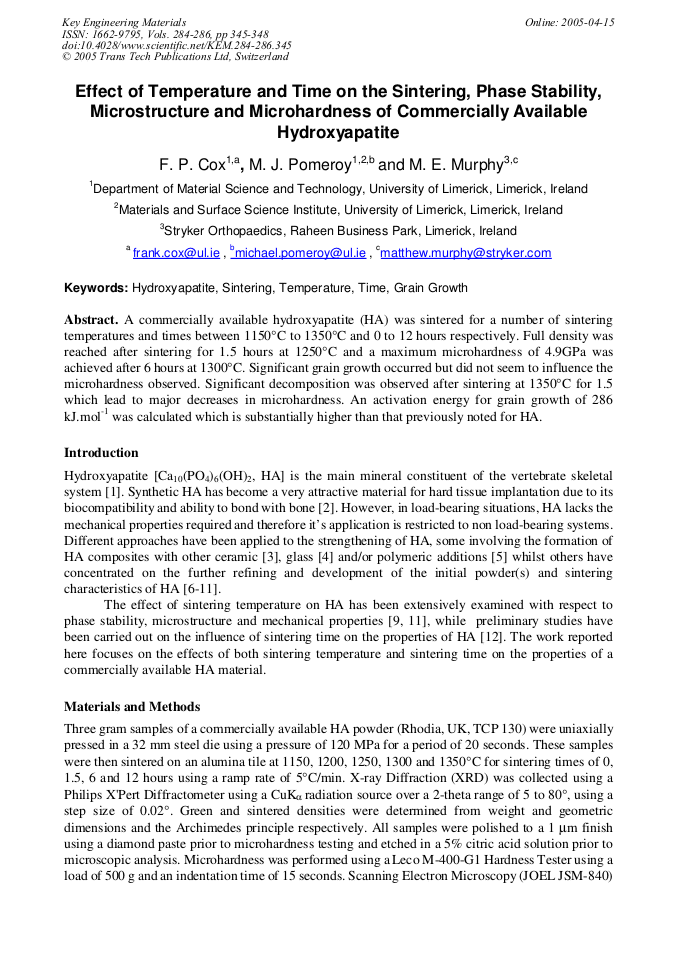

Effect of Temperature and Time on the Sintering, Phase Stability, Microstructure and Microhardness of Commercially Available Hydroxyapatite

Abstract:

A commercially available hydroxyapatite (HA) was sintered for a number of sintering temperatures and times between 1150°C to 1350°C and 0 to 12 hours respectively. Full density was reached after sintering for 1.5 hours at 1250°C and a maximum microhardness of 4.9GPa was achieved after 6 hours at 1300°C. Significant grain growth occurred but did not seem to influence the microhardness observed. Significant decomposition was observed after sintering at 1350°C for 1.5 which lead to major decreases in microhardness. An activation energy for grain growth of 286 kJ.mol-1 was calculated which is substantially higher than that previously noted for HA.

• Periodical: Key Engineering Materials (Volumes 284-286)
• Pages: 345-348
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.284-286.345
• Online since: April 2005
• Authors: F.P. Cox, Michael J. Pomeroy, M.E. Murphy
• Keywords: Grain Growth, Hydroxyapatite (HAP), Sintering, Temperature, Time

References

[1] A. Posner and F. Betts: Acta Chem. Res. Vol. 8 (1975) p.273.

[2] Jarcho, C. H Bolen, M. B Thomas, J. Bobick, J. F Kay and R. H Doremus: J. Mat. Sci. Vol. 11(1976), p.2027-(2035).

DOI: 10.1007/pl00020328

[3] S. Gautier, E. Champion and D. Bernache-Assollant: J. Eur. Ceram. Soc. Vol. 17 (1997) pp.1361-1369.

[4] D. C Tancred, A. J Carr and B. O. McCormack: J. Mat. Sci.: Mat. Med. Vol. 12 (2001), pp.81-93.

[5] N. H Ladizesky, E. M Pirhonen, D.B. Appleyard, I. M Ward and W. Bonfield: Comp. Sci. Tech. Vol. 58 (1998) pp.419-434.

[6] S. M Best and W. Bonfield: J. Mat. Sci.: Mat. Med. Vol. 5 (1994), pp.516-521.

[7] N. Patel, I.R. Gibson, S. Ke, S. M Best and W. Bonfield: J. Mat. Sci.: Mat. Med. Vol. 12 (2001), pp.181-188.

[8] N. Thangamani, K. Chinnakali and F.D. Gnanam: Ceram. Int. Vol. 28 (2002) p.355-362M.

[9] G. Muralithran and S. Ramesh: Ceram. Int. Vol. 26 (2000) pp.221-230.

[10] S. Raynaud, E. Champion and D. Bernache-Assollant: Biomaterials Vol. 23 (2002) pp.1073-1080.

DOI: 10.1016/s0142-9612(01)00219-8

[11] D. Bernache-Assollant, A. Ababou, E. Champion and M. Heughebaert: J. Eur. Ceram. Soc. Vol. 23 (2003) pp.229-241.

[12] K.C. B Yeong, J. Wang and S. C Ng: Mater. Letters Vol. 38 (1999) pp.208-213.

[13] M.I. Mendelson: J. Am. Ceram. Soc. Vol. 52 (1969) p.443.

[14] Van Landuyt, P., Li, F., Kuestermans, J. P., Streydio, J. M., Delannaaay, F. and Munting, E: J. Mat. Sci.: Mat. Med. Vol. 6 (1995), pp.80-13.
