Fabrication of Heat-Resistant Silicon Carbide Ceramics by Controlling Intergranular Phase

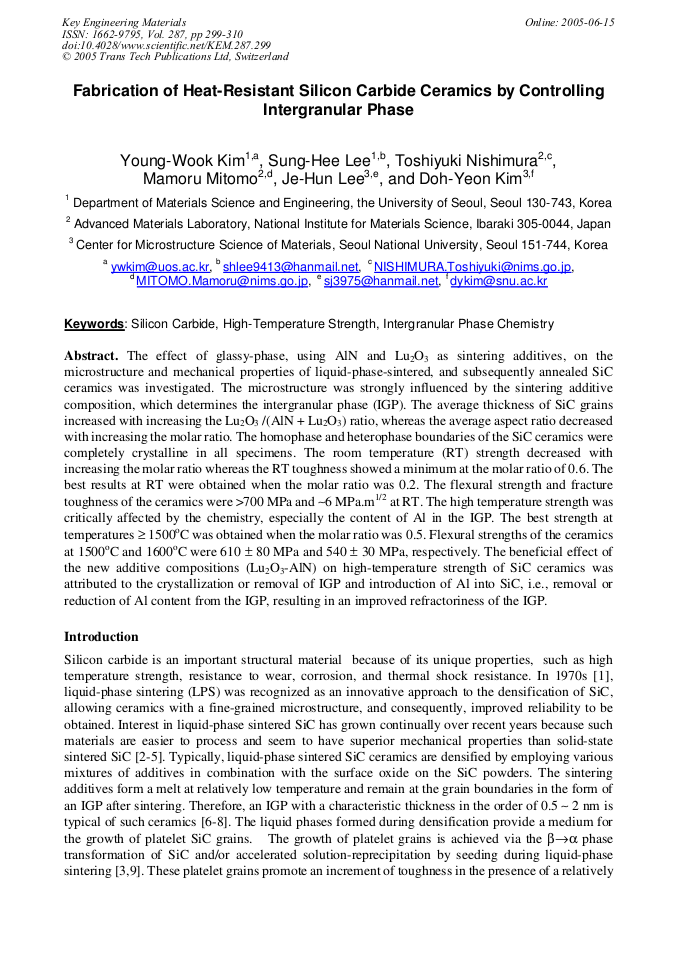

Article Preview

Abstract:

The effect of glassy-phase, using AlN and Lu2O3 as sintering additives, on the microstructure and mechanical properties of liquid-phase-sintered, and subsequently annealed SiC ceramics was investigated. The microstructure was strongly influenced by the sintering additive composition, which determines the intergranular phase (IGP). The average thickness of SiC grains increased with increasing the Lu2O3 /(AlN + Lu2O3) ratio, whereas the average aspect ratio decreased with increasing the molar ratio. The homophase and heterophase boundaries of the SiC ceramics were completely crystalline in all specimens. The room temperature (RT) strength decreased with increasing the molar ratio whereas the RT toughness showed a minimum at the molar ratio of 0.6. The best results at RT were obtained when the molar ratio was 0.2. The flexural strength and fracture toughness of the ceramics were >700 MPa and ~6 MPa.m1/2 at RT. The high temperature strength was critically affected by the chemistry, especially the content of Al in the IGP. The best strength at temperatures ³ 1500oC was obtained when the molar ratio was 0.5. Flexural strengths of the ceramics at 1500oC and 1600oC were 610 ± 80 MPa and 540 ± 30 MPa, respectively. The beneficial effect of the new additive compositions (Lu2O3-AlN) on high-temperature strength of SiC ceramics was attributed to the crystallization or removal of IGP and introduction of Al into SiC, i.e., removal or reduction of Al content from the IGP, resulting in an improved refractoriness of the IGP.

You might also be interested in these eBooks

Advanced Si-Based Ceramics and Composites

Info:

Periodical:

Key Engineering Materials (Volume 287)

Pages:

299-310

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.287.299

Citation:

Cite this paper

Online since:

June 2005

Authors:

Young Wook Kim, Sung Hee Lee, Toshiyuki Nishimura, Mamoru Mitomo, Je Hun Lee, Doh Yeon Kim

Keywords:

High Temperature Strength, Intergranular Phase Chemistry, Silicon Carbide (SiC)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2005 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] F.F. Lange: J. Mater. Sci. Vol. 10 (1975), p.314.

[2] M.A. Mulla and V.D. Krstic: J. Mater. Sci. Vol. 29 (1994), p.934.

[3] N.P. Padture: J. Am. Ceram. Soc. Vol. 77 (1994), p.519.

[4] D. Chen, M.E. Sixta, X.F. Zhang, L.C. De Jonghe and R. O. Ritchie: Acta Mater. Vol. 48 (2000), p.4599.

[5] G. Rixecker, I. Wiedmann, A. Rosinus and F. Aldinger: J. Europ. Ceram. Soc. Vol. 21 (2001), p.1013.

[6] C.M. Wang, X. Pan, M.J. Hoffman, R.M. Cannon and M. Ruhle: J. Am. Ceram. Soc. Vol. 79 (1996), p.788.

[7] G. Pezzotti, K. Ota, Y. Yamamoto and H.T. Lin: J. Am. Ceram. Soc. Vol. 86 (2003), p.471.

[8] Y. -W. Kim, M. Mitomo and T. Nishimura: J. Am. Ceram. Soc. Vol. 84 (2001), p. (2060).

[9] S.G. Lee, Y. -W. Kim and M. Mitomo: J. Am. Ceram. Soc. Vol. 84 (2001), p.1347.

[10] Z.C. Jou, A.V. Virkar and R.A. Cutler: J. Mater. Res. Vol. 6 (1991), p. (1945).

[11] E. Liden, E. Carlstrom, L. Eklund, B. Nyberg and R. Carlsson: J. Am. Ceram. Soc. Vol. 78 (1995), p.1761.

[12] Z. Chen: J. Am. Ceram. Soc. Vol. 79 (1996), p.530.

[13] D. Foster and D.P. Thompson: J. Europ. Ceram. Soc. Vol. 19 (1999), p.2823.

[14] Y. -W. Kim, M. Mitomo and T. Nishimura: J. Am. Ceram. Soc. Vol. 85 (2002), p.1007.

[15] Y. -W. Kim, S.H. Kim, M. Mitomo and T. Nishimura: Key Engineering Mater. Vol. 247 (2003), p.267.

[16] J.Y. Kim, Y. -W. Kim, M. Mitomo, G. D. Zhan and J. G. Lee: J. Am. Ceram. Soc. Vol. 82 (1999), p.441.

[17] Y. Zhou, K. Hirao, Y. Yamauchi and S. Kanzaki: J. Europ. Ceram. Soc. Vol. 22 (2002), p.2689.

[18] P.F. Becher, E.Y. Sun, C.H. Hsueh, K.B. Alexander, S.L. Hwang, S.B. Waters and C.G. Westmoreland: Acta Mater. Vol. 10 (1996), p.3881.

[19] G.R. Anstis, P. Chantikul, B.R. Lawn and D.B. Maeshall: J. Am. Ceram. Soc. Vol. 64 (1981), p.533.

[20] S.S. Shinozaki: MRS Bull. Vol. 20 (1995), p.42.

[21] Y. -W. Kim, K. Ando and M.C. Chu: J. Am. Ceram. Soc. Vol. 86 (2003), p.465.

[22] D.R. Clarke: J. Am. Ceram. Soc. Vol. 70 (1987), p.15.

[23] J.E. Shelby, J.T. Kohli: J. Am. Ceram. Soc. Vol. 73 (1990), p.39.

[24] A.Z. Ditzel: Z. Elektrochem Vol. 48 (1942) p.9.

[25] H.J. Choi, G.H. Kim, J.G. Lee and Y. -W. Kim: J. Am. Ceram. Soc. Vol. 83 (2000) p.2821.

[26] H.J. Choi, Y. -W. Kim, M. Mitomo, T. Nishimura, J.H. Lee and D.Y. Kim: Scripta Mater. Vol. 50 (2004), p.1203.

[27] S.Q. Guo, N. Hirosaki, Y. Yamamoto, T. Nishimura and M. Mitomo: Scripta Mater. Vol. 45 (2001), p.867.

[28] A. Zangvil and R. Ruh: J. Am. Ceram. Soc. Vol. 71 (1988), P. 884.

[29] Y. -W. Kim, M. Mitomo and H. Hirotsuru: J. Am. Ceram. Soc. Vol. 80 (1997), p.99.

[30] Y. -W. Kim, M. Mitomo, H. Emoto and J. G. Lee: J. Am. Ceram. Soc. Vol. 81 (1998), p.3136.
