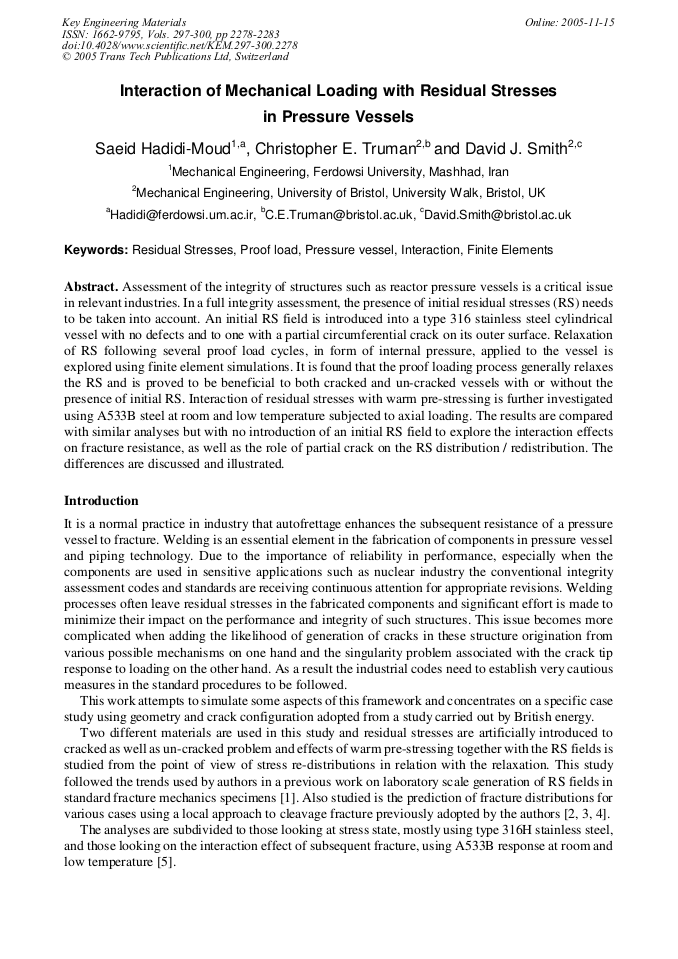

Interaction of Mechanical Loading with Residual Stresses in Pressure Vessels

Abstract:

Assessment of the integrity of structures such as reactor pressure vessels is a critical issue in relevant industries. In a full integrity assessment, the presence of initial residual stresses (RS) needs to be taken into account. An initial RS field is introduced into a type 316 stainless steel cylindrical vessel with no defects and to one with a partial circumferential crack on its outer surface. Relaxation of RS following several proof load cycles, in form of internal pressure, applied to the vessel is explored using finite element simulations. It is found that the proof loading process generally relaxes the RS and is proved to be beneficial to both cracked and un-cracked vessels with or without the presence of initial RS. Interaction of residual stresses with warm pre-stressing is further investigated using A533B steel at room and low temperature subjected to axial loading. The results are compared with similar analyses but with no introduction of an initial RS field to explore the interaction effects on fracture resistance, as well as the role of partial crack on the RS distribution / redistribution. The differences are discussed and illustrated.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 2278-2283
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.2278
• Online since: November 2005
• Authors: Saeid Hadidi-Moud, Christopher E. Truman, David John Smith
• Keywords: Finite Element, Interaction, Pressure Vessel Steel, Proof Load, Residual Stress

References

[1] A.H. Mahmoudi, S. Hadidi-Moud, C.E. Truman and D.J. Smith: Measurement and Prediction of Residual Stress Generated by Local Compression, 5th EUROMECH SOLID MECHANICS CONFERENCE (ESMC), Thessaloniki, GREECE, 17-22 (Aug. 2003).

[2] S. Hadidi-Moud, A. Mirzaee-Sisan, C.E. Truman and D.J. Smith: Predicting How Crack Tip Residual Stresses Influence Brittle Fracture, ASME conference of Pressure Vessels and Piping (PVP02), Vancouver BC, Canada, in Computational Weld Mechanics, 434, PVP2002-1113 (2002).

DOI: 10.1115/pvp2002-1113

[3] S. Hadidi-Moud, A. Mirzaee-Sisan, C.E. Truman and D.J. Smith: A Local Approach to Cleavage Fracture in Ferritic Steels following WPS, Fatigue and Fracture of Engineering materials and Structures (available online) (2004).

DOI: 10.1111/j.1460-2695.2004.00804.x

[4] S. Hadidi-Moud, A.H. Mahmoudi, C.E. Truman and D.J. Smith: Combined Effect of Residual Stress and Loading History on Brittle Fracture, ICM9: 9th Int. Conference on Mechanical Behaviour of Materials, Geneva, Switzerland, 25-29 (May 2003).

[5] D.J. Smith, S. Hadidi-Moud and H. Fowler: The Effects of Warm Pre-Stressing on Cleavage Fracture, Part 1: Evaluation of Experiments, Engineering Fracture Mechanics Vol. 71 Issues 13-14 (2004), p.2015-(2032).

DOI: 10.1016/j.engfracmech.2003.09.003

[6] T.L. Anderson: Fracture Mechanics (2nd edition) (CRC Press, 1994).
