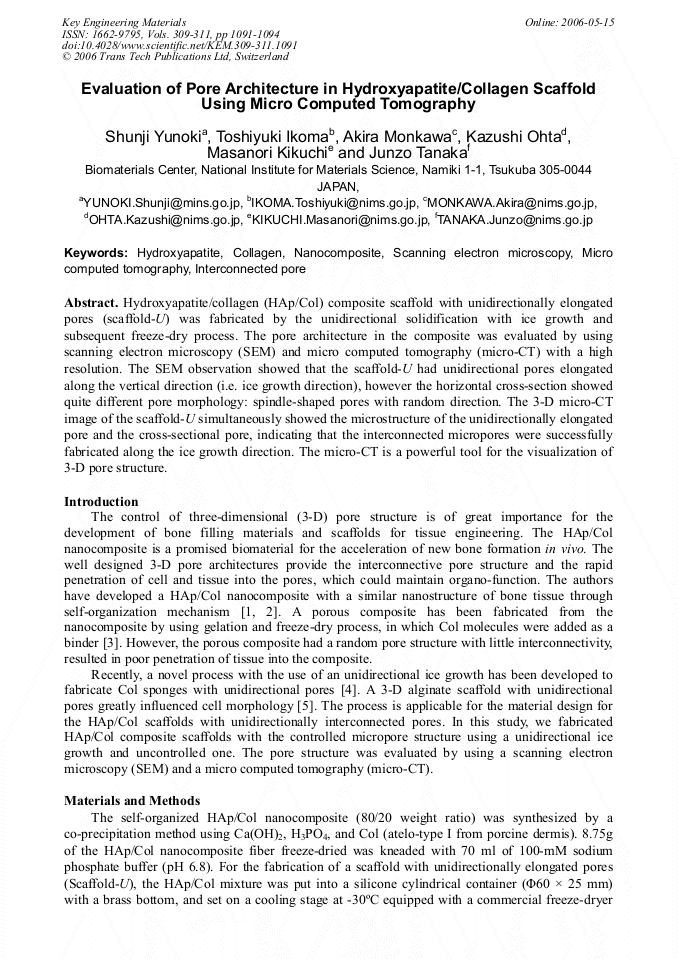

Evaluation of Pore Architecture in Hydroxyapatite/Collagen Scaffold Using Micro Computed Tomography

Abstract:

Hydroxyapatite/collagen (HAp/Col) composite scaffold with unidirectionally elongated pores (scaffold-U) was fabricated by the unidirectional solidification with ice growth and subsequent freeze-dry process. The pore architecture in the composite was evaluated by using scanning electron microscopy (SEM) and micro computed tomography (micro-CT) with a high resolution. The SEM observation showed that the scaffold-U had unidirectional pores elongated along the vertical direction (i.e. ice growth direction), however the horizontal cross-section showed quite different pore morphology: spindle-shaped pores with random direction. The 3-D micro-CT image of the scaffold-U simultaneously showed the microstructure of the unidirectionally elongated pore and the cross-sectional pore, indicating that the interconnected micropores were successfully fabricated along the ice growth direction. The micro-CT is a powerful tool for the visualization of 3-D pore structure.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 309-311)

Pages:

1091-1094

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.309-311.1091

Citation:

Cite this paper

Online since:

May 2006

Authors:

Shunji Yunoki, Toshiyuki Ikoma, Akira Monkawa, Kazushi Ohta, Masanori Kikuchi, M. Tanaka

Keywords:

Collagen, Hydroxyapatite (HAP), Interconnected Pore, Micro Computed Tomography (μ-CT), Nanocomposite, Scanning Electron Microscope (SEM)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Itoh, M. Kikuchi, Y. Koyama, K. Takakuda, K. Shinomiya and J. Tanaka: Biomaterials Vol. 23 (2002), p.3919.

DOI: 10.1016/s0142-9612(02)00126-6

Google Scholar

[2] M. Kikuchi, S. Itoh, S. Ichinose, K. Shinomiya and J. Tanaka: Biomaterials Vol. 22 (2001), p.1705.

Google Scholar

[3] M. Kikuchi, T. Ikoma, D. Syoji, H.N. Matsumoto, Y. Koyama, S. Itoh, K. Takakuda, K. Shinomiya and J. Tanaka: Key Eng. Mater. Vol. 252-4 (2004), p.561.

DOI: 10.4028/www.scientific.net/kem.254-256.561

Google Scholar

[4] H. Schoof, L. Bruns, A. Fischer, I. Heschel and G. Rau: J. Cryst. Growth Vol. 209 (2000), p.122.

Google Scholar

[5] S. Zmora, R. Glicklis and S. Cohen: Biomaterials Vol. 23 (2002), p.4087.

Google Scholar

[6] H. Schoof, J. Apel, I. Heschel and G. Rau: J. Biomed. Mat. Res. Vol. 58 (2001), p.352.

Google Scholar

[7] E.L. Hedberg, H.C. Kroese-Deutman, C.K. Shih, R.S. Crowther, D.H. Carney, A.G. Mikos, J.A. Jansen: Biomaterials Vol. 26 (2005), p.4616.

DOI: 10.1016/j.biomaterials.2004.11.039

Google Scholar

[8] J. Malda, T.B.F. Woodfield, F. van der Vloodt, C. Wilson, D.E. Martens, J. Tramper, C.A. van Blitterswijk and J. Riesle: Biomaterials Vol. 26 (2005).

DOI: 10.1016/j.biomaterials.2004.02.046

Google Scholar
