Preparation of a Bioactive Poly(ε-Caprolactone) Triol/Silica Composite

Sang Hoon Rhee; Yong Keun Lee; Bum Soon Lim

doi:10.4028/www.scientific.net/KEM.309-311.481

Paper Titles

Bioactive Non-Woven Silica Fabric Made Through Electro-Spinning Method
p.465

Osteoblast-Like Cell Behaviors on Non-Woven Silica Fabric
p.469

An Economic Method for Chitosan Production
p.473

Comparison of Apatite Formation on Polyamide Films Containing Carboxyl and Sulfonic Groups in a Solution Mimicking Body Fluid
p.477

Preparation of a Bioactive Poly(ε-Caprolactone) Triol/Silica Composite
p.481

Mineralization of Calcium Carbonate in the Presence of O-Phospho-L-Threonine-Containing Polypeptides
p.485

Apatite Formation on Synthetic Polypeptide with β Sheet Structure in a Solution Mimicking Body Environment
p.489

In Vitro Mineralization and Cell Adhesion on Surface Modified Poly (2 - hydroxy ethyl methacrylate-co-methyl methacrylate
p.493

Biosynthesis of Low Molecular Weight Bacterial Cellulose
p.497

HomeKey Engineering MaterialsKey Engineering Materials Vols. 309-311Preparation of a Bioactive Poly(ε-Caprolactone)...

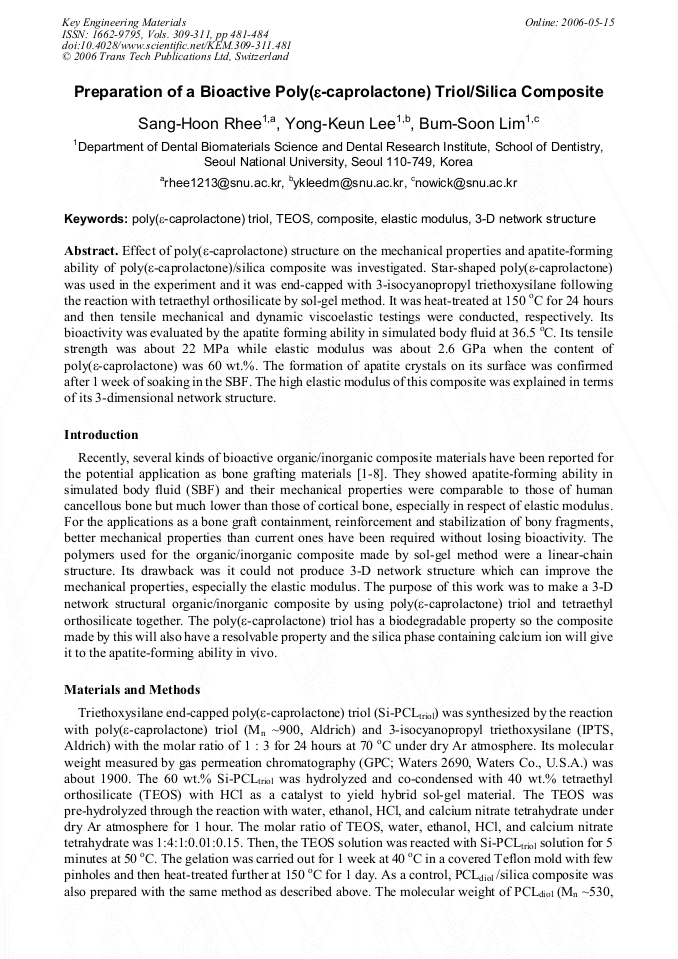

Preparation of a Bioactive Poly(ε-Caprolactone) Triol/Silica Composite

Abstract:

Effect of poly(ε-caprolactone) structure on the mechanical properties and apatite-forming ability of poly(ε-caprolactone)/silica composite was investigated. Star-shaped poly(ε-caprolactone) was used in the experiment and it was end-capped with 3-isocyanopropyl triethoxysilane following the reaction with tetraethyl orthosilicate by sol-gel method. It was heat-treated at 150 oC for 24 hours and then tensile mechanical and dynamic viscoelastic testings were conducted, respectively. Its bioactivity was evaluated by the apatite forming ability in simulated body fluid at 36.5 oC. Its tensile strength was about 22 MPa while elastic modulus was about 2.6 GPa when the content of poly(ε-caprolactone) was 60 wt.%. The formation of apatite crystals on its surface was confirmed after 1 week of soaking in the SBF. The high elastic modulus of this composite was explained in terms of its 3-dimensional network structure.
