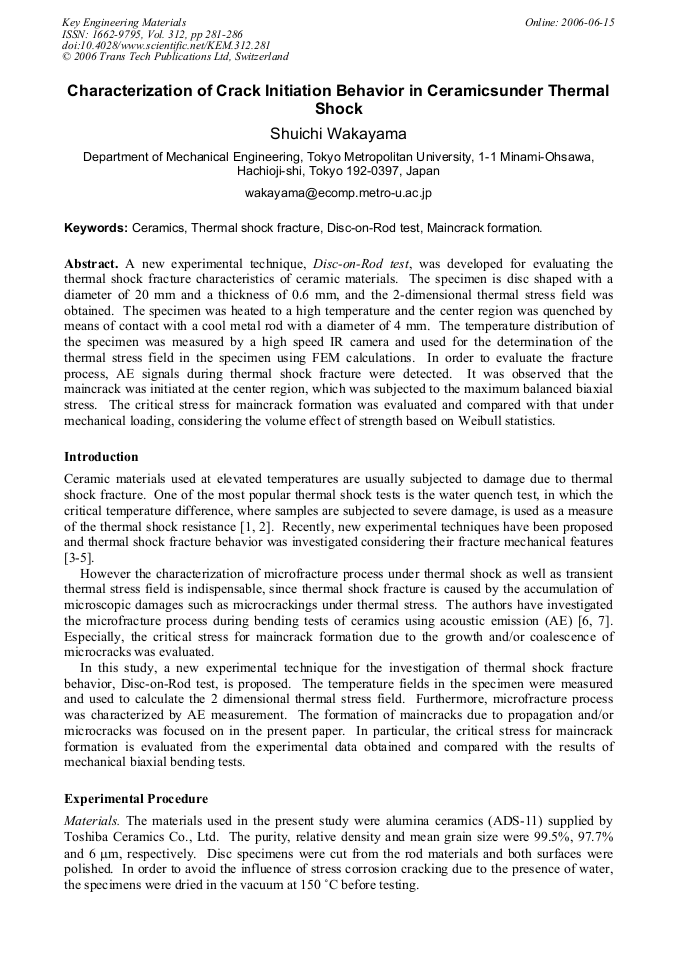

Characterization of Crack Initiation Behavior in Ceramics under Thermal Shock

Abstract:

A new experimental technique, Disc-on-Rod test, was developed for evaluating the thermal shock fracture characteristics of ceramic materials. The specimen is disc shaped with a diameter of 20 mm and a thickness of 0.6 mm, and the 2-dimensional thermal stress field was obtained. The specimen was heated to a high temperature and the center region was quenched by means of contact with a cool metal rod with a diameter of 4 mm. The temperature distribution of the specimen was measured by a high speed IR camera and used for the determination of the thermal stress field in the specimen using FEM calculations. In order to evaluate the fracture process, AE signals during thermal shock fracture were detected. It was observed that the maincrack was initiated at the center region, which was subjected to the maximum balanced biaxial stress. The critical stress for maincrack formation was evaluated and compared with that under mechanical loading, considering the volume effect of strength based on Weibull statistics.

• Periodical: Key Engineering Materials (Volume 312)
• Pages: 281-286
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.312.281
• Online since: June 2006
• Authors: Shuichi Wakayama
• Keywords: Ceramic, Disc-On-Rod Test, Maincrack Formation, Thermal Shock Fracture

References

[1] W.D. Kingery, J. Am. Ceram. Soc.: Vol. 38 (1955), p.3.

[2] D.P.H. Hasselman: J. Am. Ceram. Soc.: Vol. 52 (1969), p.600.

[3] G.A. Schneider and G. Petzow: J. Am. Ceram. Soc. Vol. 74 (1991), p.98.

[4] W.P. Rogers and A.F. Emery: J. Mater. Sci. Vol. 27 (1992), p.146.

[5] Y. Mizutani, N. Nishikawa and M. Takatsu: J. Ceram. Soc. Jpn. Vol. 103 (1995), p.494.

[6] S. Wakayama, T. Koji and H. Nishimura: Trans. Jpn. Soc. Mech. Eng. Vol. 57 (1991), p.504.

[7] S. Wakayama and H. Nishimura: Fracture Mechanics of Ceramics Vol. 10, (Plenum Press, New York 1992), p.59.

[8] W.A. Weibull: J. Appl. Mech. Vol. 18 (1951), p.293.

[9] S.B. Batdorf and J.G. Crose: J. Appl. Mech. Vol. 41 (1974), p.459.

[10] J. Lamon: J. Am. Ceram. Soc. Vol. 71 (1988), p.106.
