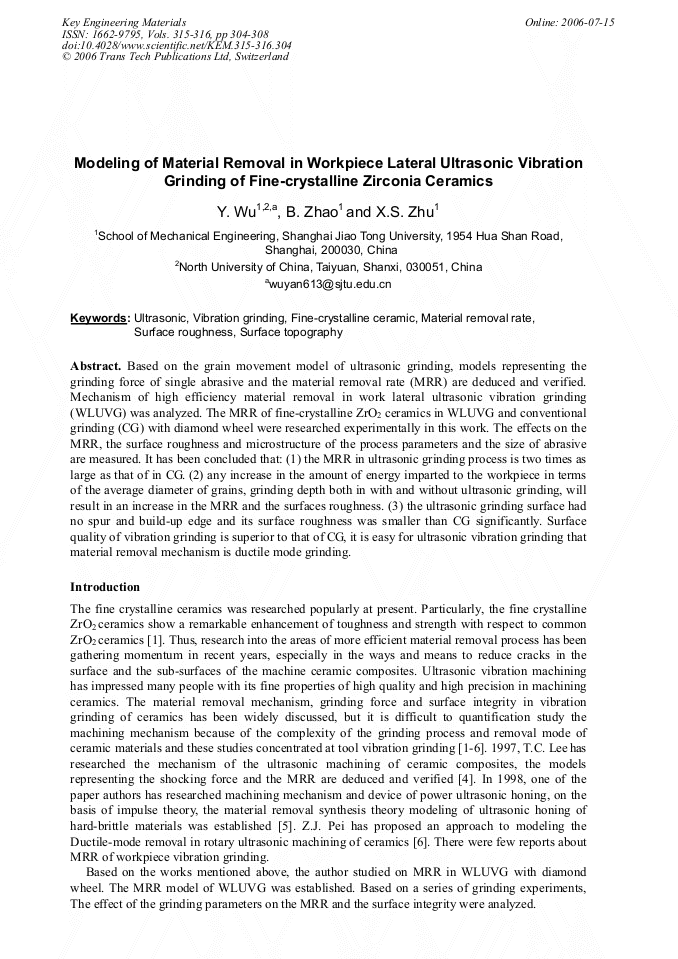

Modeling of Material Removal in Workpiece Lateral Ultrasonic Vibration Grinding of Fine-Crystalline Zirconia Ceramics

Abstract:

Based on the grain movement model of ultrasonic grinding, models representing the grinding force of single abrasive and the material removal rate (MRR) are deduced and verified. Mechanism of high efficiency material removal in work lateral ultrasonic vibration grinding (WLUVG) was analyzed. The MRR of fine-crystalline ZrO2 ceramics in WLUVG and conventional grinding (CG) with diamond wheel were researched experimentally in this work. The effects on the MRR, the surface roughness and microstructure of the process parameters and the size of abrasive are measured. It has been concluded that: (1) the MRR in ultrasonic grinding process is two times as large as that of in CG. (2) any increase in the amount of energy imparted to the workpiece in terms of the average diameter of grains, grinding depth both in with and without ultrasonic grinding, will result in an increase in the MRR and the surfaces roughness. (3) the ultrasonic grinding surface had no spur and build-up edge and its surface roughness was smaller than CG significantly. Surface quality of vibration grinding is superior to that of CG, it is easy for ultrasonic vibration grinding that material removal mechanism is ductile mode grinding.

• Periodical: Key Engineering Materials (Volumes 315-316)
• Pages: 304-308
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.315-316.304
• Online since: July 2006
• Authors: Yan Wu, Bo Zhao, Xun Sheng Zhu
• Keywords: Fine Crystalline Ceramic, Material Removal Rate (MRR), Surface Roughness (SR), Surface Topography, Ultrasonic, Vibration Grinding

References

[1] E. Uhimann: Annals of the CIRP, Vol. 47 (1998) No. 1, pp.249-252.

[2] W. Qu, K. Wang and et al: J. of the Inter. Soc. for Precision Engineering and Nanotechnology, Vol. 24 (2000), pp.329-337.

[3] M. Zhou, X.J. Wang and et al: J. of Mat. Proc. Tech., Vol. 121 (2002), pp.243-251.

[4] T. C. Lee and C .W. Chan: J. of Mat. Proc. Tech., Vol. 71 (1997), pp.195-201.

[5] B. Zhao: J. Acta Armamentar, Vol. 20 (1999), pp.342-346.

[6] Z.J. Pei and P.M. Ferreira: Int. J. of Machine Tools and Manuf., Vol. 8 (1998), pp.1399-1418.

[7] B.R. Lawn and A.G. Evans: J. Mater. Sci., Vol. 7 (1972), pp.2195-2199.

[8] A.G. Evans and et al: Acta Metallurgica (Pergamon Press, Britain 1976), Vol. 24, pp.939-956.

[9] M. Komaraiah and P.N. Reddy: Int. J. Mach. Tools Manuf., Vol. 33 (1993) No. 3, pp.495-505.
