Microstructure and Properties of A Calcium Phosphate Cement Tissue Engineering Scaffold Modified with Collagen and Chitosan

Abstract:

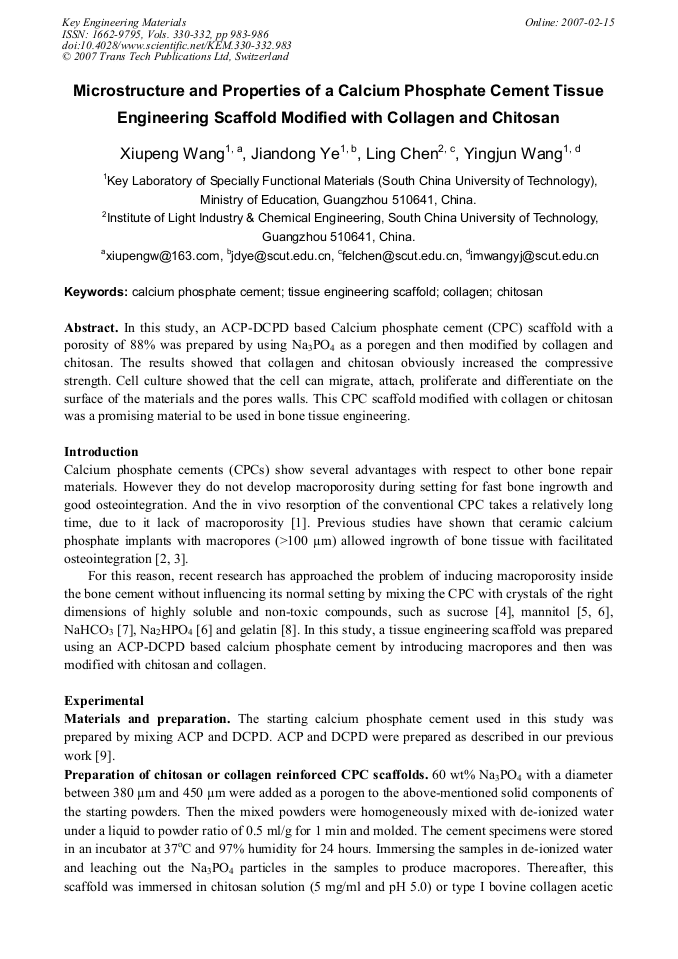

Article Preview

In this study, an ACP-DCPD based Calcium phosphate cement (CPC) scaffold with a porosity of 88% was prepared by using Na3PO4 as a poregen and then modified by collagen and chitosan. The results showed that collagen and chitosan obviously increased the compressive strength. Cell culture showed that the cell can migrate, attach, proliferate and differentiate on the surface of the materials and the pores walls. This CPC scaffold modified with collagen or chitosan was a promising material to be used in bone tissue engineering.

Info:

Periodical:

Key Engineering Materials (Volumes 330-332)

Main Theme:

Edited by:

Xingdong Zhang, Xudong Li, Hongsong Fan, Xuanyong Liu

Pages:

983-986

Citation:

X. P. Wang et al., "Microstructure and Properties of A Calcium Phosphate Cement Tissue Engineering Scaffold Modified with Collagen and Chitosan", Key Engineering Materials, Vols. 330-332, pp. 983-986, 2007

Online since:

February 2007

Export:

Price:

$38.00

[1] S. Sarda, M. Nilsson, M. Balcells, E. Fernández: J Biomed Res. Vol. 65A (2003), p.215.

[2] J.X. Lu, B. Flautre, K. Anselme, P. Hardouin, A. Gallur, M. Descamps, B. Thierry: J Mater Sci Mater Med. Vol. 10 (1999) p.111.

DOI: https://doi.org/10.1023/a:1008973120918

[3] T.M.G. Chu, D.G. Orton, S.J. Hollister, S.E. Feinberg, J.W. Halloran: Biomaterials. Vol. 23 (2002), p.1283.

[4] T. Yoshikawa, Y. Suwa, H. Ohgushi: Biomedical Materials Engineering. Vol. 6 (1996), p.345.

[5] S. Takagi, L. Chow: J Dent Res. Vol. 74 (1995) p.559.

[6] S. Takagi, L Chow: J Mater Sci: Mater Med. Vol., 12 (2001), p.135.

[7] R.P. Del Real, J.G.C. Wolke, M. ValletRegi: Biomaterials, Vol. 23 (2002), p.3673.

[8] Y.J. Yin, F. Ye, S. Cai: J Mater Sci: Mater in Med. Vol. 14 (2003), p.255.

[9] X.P. Wang, J.D. Ye, H. Wang: J Biomed Mater Res. In press and published on line.

Fetching data from Crossref.
This may take some time to load.
