The Influence of Thin Film Thickness on the Characteristics of Bismuth Titanate Oxide

Abstract:

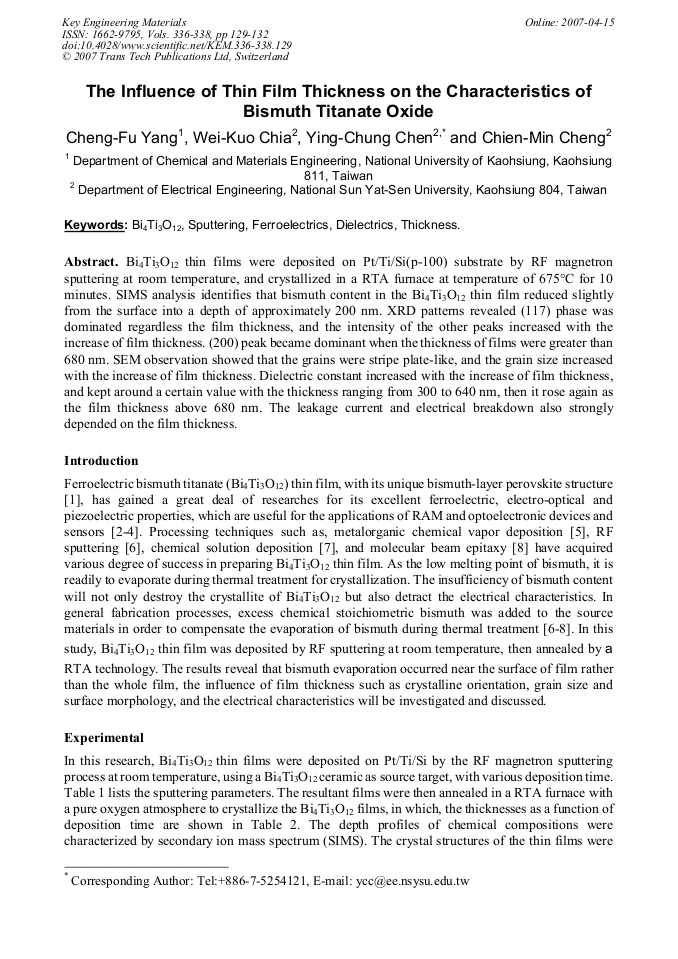

Article Preview

Bi4Ti3O12 thin films were deposited on Pt/Ti/Si(p-100) substrate by RF magnetron sputtering at room temperature, and crystallized in a RTA furnace at temperature of 675°C for 10 minutes. SIMS analysis identifies that bismuth content in the Bi4Ti3O12 thin film reduced slightly from the surface into a depth of approximately 200 nm. XRD patterns revealed (117) phase was dominated regardless the film thickness, and the intensity of the other peaks increased with the increase of film thickness. (200) peak became dominant when the thickness of films were greater than 680 nm. SEM observation showed that the grains were stripe plate-like, and the grain size increased with the increase of film thickness. Dielectric constant increased with the increase of film thickness, and kept around a certain value with the thickness ranging from 300 to 640 nm, then it rose again as the film thickness above 680 nm. The leakage current and electrical breakdown also strongly depended on the film thickness.

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong

Pages:

129-132

DOI:

10.4028/www.scientific.net/KEM.336-338.129

Citation:

C. F. Yang et al., "The Influence of Thin Film Thickness on the Characteristics of Bismuth Titanate Oxide", Key Engineering Materials, Vols. 336-338, pp. 129-132, 2007

Online since:

April 2007

Export:

Price:

$35.00

[1] T. Takenaka and K. Sakata: Japanese Journal of Applied Physics Vol. 19 (1980), p.31.

[2] M. Yamaguchi, T. Nagatomo and O. Omoto: Journal of Applied Physics Vol. 34 (1995), p.5166.

[3] X.S. Wang, J.W. Zhai and L.Y. Zhang: Infrared Physics & Technology Vol� 40 (1999), p.55.

[4] D. Damjananovic, M. Demartin, H. S. Shulman, M. Testorf and N. Setter: Sensors and Actuators Vol. A53 (1996), p.33.

[5] T. Kijima and H. matsunaga: Jpn. J. Appl. Phys Vol. 38 (1999), p.2281.

[6] M. Yamaguchi and T. Nagatomo: Thin Solid films Vol. 348 (1999), p.94.

[7] D. Wu, A. Li and N. Ming: Microelectronic Engineering Vol. 66 (2003), p.773.

[8] S. Migita, H. Ota, H. Fujino and Y. Kasai: Journal of Crystal Growth Vol. 200 (2000), p.161.

[9] T.S. Kim, M.H. Oh and C.H. Kim: Thin Solid Films Vol. 254 (1995), p.273.
