For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Electric and Damping Properties of PU Based IPNs-BaTiO3 Nanocomposites
p.118
Texture Development in Na1/2Bi1/2TiO3-BaTiO3 Ceramics by Reactive-Templated Grain Growth
p.121
Effect of Sr/Ba Ratio on Dielectric Properties of BSTN Ceramics
p.125
The Influence of Thin Film Thickness on the Characteristics of Bismuth Titanate Oxide
p.129
Structure and Dielectric Properties of Homogeneous Srm-3Bi4TimO3m+3 (m = 3, 4, 5, and 6) Ceramics
p.133
The Influence of Precursor on the Microstructure and Characterization for Sr0.5Ba0.5Bi4Ti4O15 Thin Films
p.136
Synthesis and Properties of (Bi0.5Na0.5)TiO3 Powders by Hydrothermal Method
p.140
Fabrication and Properties of SrBi2(Ta1-xNbx)2O9 Ferroelectric Ceramics
p.143
Study on Ferroelectric Properties of Nd-Doped Bi4Ti3O12 Thin Films Prepared by Sol-Gel Method
p.146

Structure and Dielectric Properties of Homogeneous Srm-3Bi4TimO3m+3 (m = 3, 4, 5, and 6) Ceramics

Article Preview

Abstract:

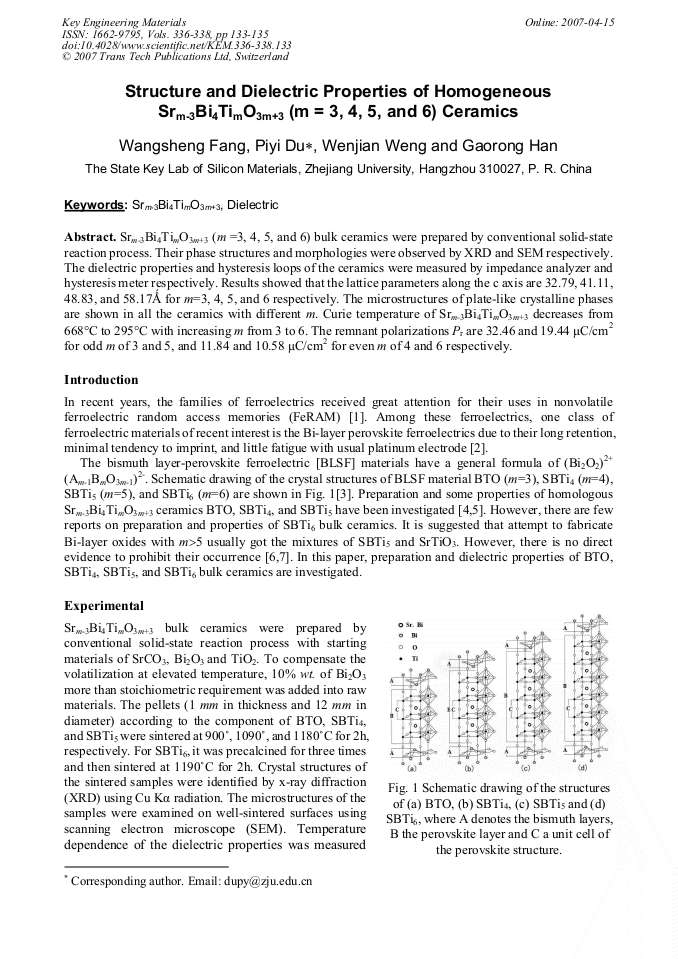

Srm-3Bi4TimO3m+3 (m =3, 4, 5, and 6) bulk ceramics were prepared by conventional solid-state reaction process. Their phase structures and morphologies were observed by XRD and SEM respectively. The dielectric properties and hysteresis loops of the ceramics were measured by impedance analyzer and hysteresis meter respectively. Results showed that the lattice parameters along the c axis are 32.79, 41.11, 48.83, and 58.17Ǻ for m=3, 4, 5, and 6 respectively. The microstructures of plate-like crystalline phases are shown in all the ceramics with different m. Curie temperature of Srm-3Bi4TimO3m+3 decreases from 668°C to 295°C with increasing m from 3 to 6. The remnant polarizations Pr are 32.46 and 19.44 μC/cm2 for odd m of 3 and 5, and 11.84 and 10.58 μC/cm2 for even m of 4 and 6 respectively.

You might also be interested in these eBooks
High-Performance Ceramics IV View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Pages:

133-135

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.336-338.133

Citation:

Cite this paper

Online since:

April 2007

Authors:

Wang Sheng Fang, Pi Yi Du, Wen Jian Weng, Gao Rong Han

Keywords:

Dielectric, Srm-3Bi4TimO3m+3

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] J. F. Scott and C. A. Araujo: Science. Vol. 246 (1989), p.1400.

Google Scholar

[2] C. A. Paz de Araujo, J. D. Cuchlaro, L. D. McMillan, et al.: Nature. Vol. 374 (1995), p.627.

Google Scholar

[3] B. Aurivillius and P. H. Fang: Phys. Rev. Vol. 126 (1962), p.893.

Google Scholar

[4] P. C. Joshi and S. B. Krupanidhi: J. Appl. Phys. Vol. 72 (1992), p.5517.

Google Scholar

[5] Y. Neguchi, M. Miyayama and T. Kudo: Appl. Phys. Lett. Vol. 77 (2000), p.3639.

Google Scholar

[6] S. T. zhang, B. Yang, J. F. Webb, et al.: J. Appl. Phys. Vol. 92 (2002), p.4599.

Google Scholar

[7] B. Aurivillius and P. H. Fang: Phys. Rev. Vol. 126(1962), p.893.

Google Scholar

[8] T. Kikuchi: Mater. Res. Bull. Vol. 14 (1979), p.1561.

Google Scholar

[9] R. L. Withers, J. G. Thompson and A. D. Rae: J. Solid State Chem. Vol. 94 (1991), p.404. -40 -20 0 20 40 -80 -40.

Google Scholar

[40] [80] (a) Electric field ( kV/cm ) Polarization ( µµµµC/cm.

Google Scholar

[2] ) -30 -15 0 15 30 -40 -20.

Google Scholar

[20] [40] (b) -60 -30 0 30 60 -60 -30.

Google Scholar

[30] [60] (c) -30 -15 0 15 30 -60 -30.

Google Scholar

[30] [60] (d) Fig. 6 P-E hysteresis loops of (a) BTO, (b) SBTi4, (c) SBTi5, and (d) SBTi6.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
