Microstructure Control of Porous Alumina Film Using Aqueous Sol Containing Trehalose

Takeshi Miki; Kaori Nishizawa; Kazuyuki Suzuki; Kazumi Kato

doi:10.4028/www.scientific.net/KEM.350.7

Paper Titles

Morphology Control of ZnO Particles in Liquid Phase
p.3

Microstructure Control of Porous Alumina Film Using Aqueous Sol Containing Trehalose
p.7

Sedimentation of Barium Titanate Nanoparticles in a Suspension under Application of an Electric Field
p.11

Magneto-Optical Effects in Superlattice Assemblies of Ferromagnetic Nanosheets
p.15

Liquid-Phase Synthesis of Carbon Nanotubes from Alcohols
p.19

Synthesis of Highly Aligned Carbon Nanotubes in Liquid Phase
p.23

The Characteristics of Fine-Sized LiMn_(12-X)/6Al_x/6O₄(0.05≤x≤2) Powders Prepared by Spray Pyrolysis
p.27

Crystallinity of Barium Titanate Nanoparticles Synthesized by Sol-Gel Method
p.31

Sintering and Dielectric Properties of BaTiO₃ Nano-Particle Prepared by Aerosol Plasma Pyrolysis Process
p.35

HomeKey Engineering MaterialsKey Engineering Materials Vol. 350Microstructure Control of Porous Alumina Film...

Microstructure Control of Porous Alumina Film Using Aqueous Sol Containing Trehalose

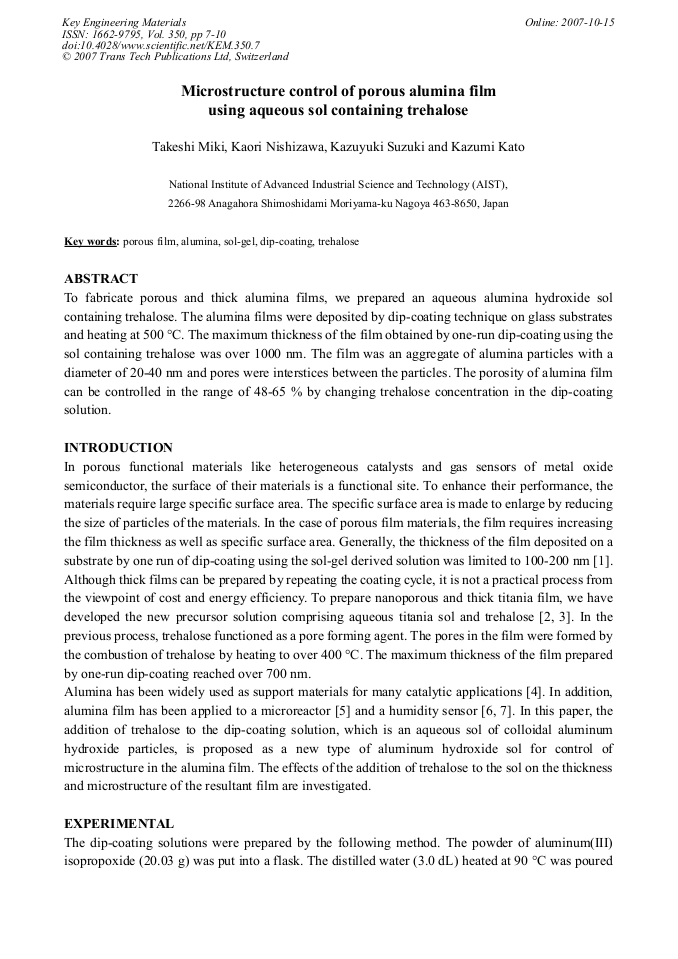

Abstract:

To fabricate porous and thick alumina films, we prepared an aqueous alumina hydroxide sol containing trehalose. The alumina films were deposited by dip-coating technique on glass substrates and heating at 500 °C. The maximum thickness of the film obtained by one-run dip-coating using the sol containing trehalose was over 1000 nm. The film was an aggregate of alumina particles with a diameter of 20-40 nm and pores were interstices between the particles. The porosity of alumina film can be controlled in the range of 48-65 % by changing trehalose concentration in the dip-coating solution.
