Microstructure and Tensile Properties of a Mg-Zn-Y-Zr Alloy Containing Quasicrystal Phase Processed by Equal Channel Angular Pressing

Shi Wei Xu; Ming Yi Zheng; Xiao Guang Qiao; Wei Min Gan; Kun Wu; Shigeharu Kamado; Yo Kojima

doi:10.4028/www.scientific.net/KEM.353-358.595

Paper Titles

Texture Evolution of Rolled AA3003 Alloy Sheets after Annealing
p.579

Long Wavelength Buckling of Cubic Open-Cell Foams Subjected to Uniaxial Compression
p.583

Stiffness and Thermal Conductivity of Carbon Nanotube Containing Aluminum
p.587

A Thermal Damage Model of UHMWPE
p.591

Microstructure and Tensile Properties of a Mg-Zn-Y-Zr Alloy Containing Quasicrystal Phase Processed by Equal Channel Angular Pressing
p.595

An Experimental Investigation on the Tensile Behavior of Silane-Modified MMT/Epoxy Nanocomposites
p.599

Failure Analysis of Al1060 Sheets under Double-Sided Pressure Deformation Conditions
p.603

Surface Morphological Changes in CP-Ti and SUS316L under Pure Tensile Loading and Creep
p.607

Development of Constitutive Equation for Infinite Body of Impact Problem
p.611

HomeKey Engineering MaterialsKey Engineering Materials Vols. 353-358Microstructure and Tensile Properties of a...

Microstructure and Tensile Properties of a Mg-Zn-Y-Zr Alloy Containing Quasicrystal Phase Processed by Equal Channel Angular Pressing

Abstract:

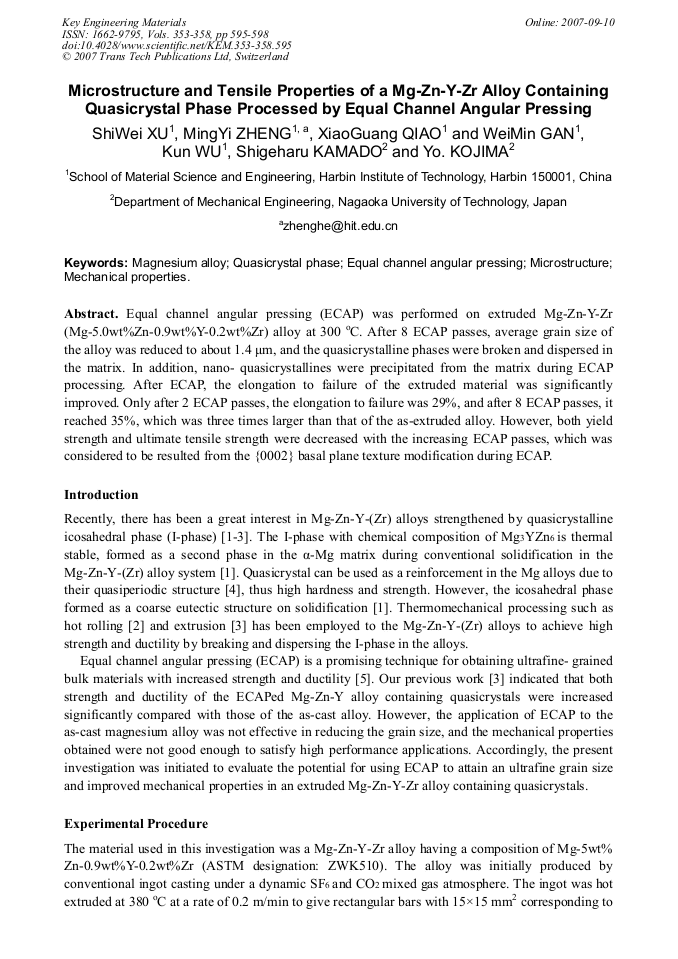

Equal channel angular pressing (ECAP) was performed on extruded Mg-Zn-Y-Zr (Mg-5.0wt%Zn-0.9wt%Y-0.2wt%Zr) alloy at 300 oC. After 8 ECAP passes, average grain size of the alloy was reduced to about 1.4 μm, and the quasicrystalline phases were broken and dispersed in the matrix. In addition, nano- quasicrystallines were precipitated from the matrix during ECAP processing. After ECAP, the elongation to failure of the extruded material was significantly improved. Only after 2 ECAP passes, the elongation to failure was 29%, and after 8 ECAP passes, it reached 35%, which was three times larger than that of the as-extruded alloy. However, both yield strength and ultimate tensile strength were decreased with the increasing ECAP passes, which was considered to be resulted from the {0002} basal plane texture modification during ECAP.
