Preparation of Bioactive Poly(Lactic-Co-Glycolic)Acid and Silica Gel Fibers Mixed Non-Woven Fabric

Abstract:

Article Preview

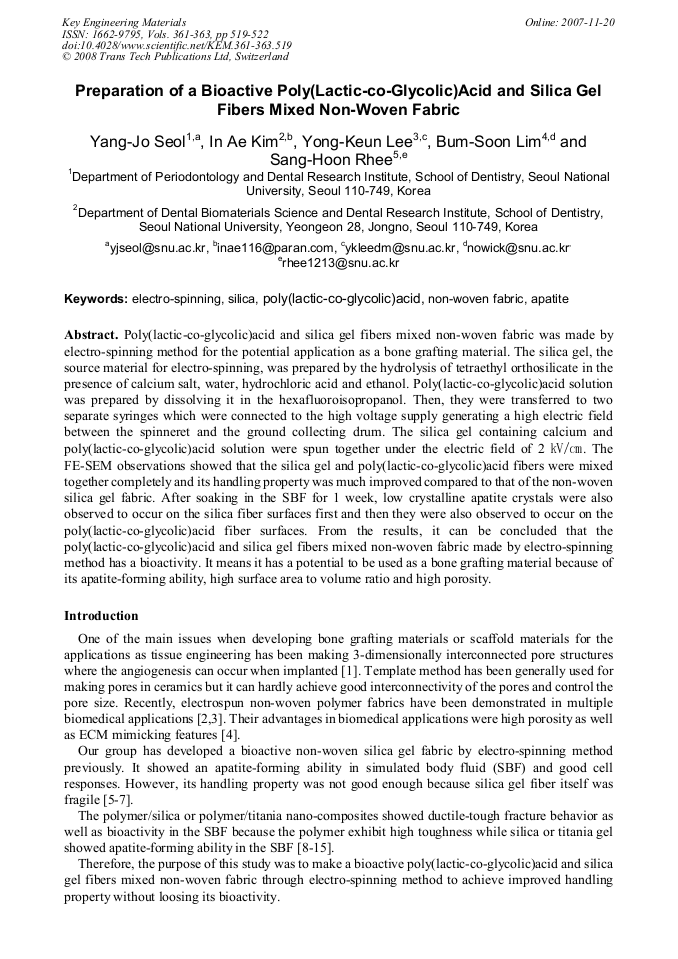

Poly(lactic-co-glycolic)acid and silica gel fibers mixed non-woven fabric was made by electro-spinning method for the potential application as a bone grafting material. The silica gel, the source material for electro-spinning, was prepared by the hydrolysis of tetraethyl orthosilicate in the presence of calcium salt, water, hydrochloric acid and ethanol. Poly(lactic-co-glycolic)acid solution was prepared by dissolving it in the hexafluoroisopropanol. Then, they were transferred to two separate syringes which were connected to the high voltage supply generating a high electric field between the spinneret and the ground collecting drum. The silica gel containing calcium and poly(lactic-co-glycolic)acid solution were spun together under the electric field of 2 ㎸/㎝. The FE-SEM observations showed that the silica gel and poly(lactic-co-glycolic)acid fibers were mixed together completely and its handling property was much improved compared to that of the non-woven silica gel fabric. After soaking in the SBF for 1 week, low crystalline apatite crystals were also observed to occur on the silica fiber surfaces first and then they were also observed to occur on the poly(lactic-co-glycolic)acid fiber surfaces. From the results, it can be concluded that the poly(lactic-co-glycolic)acid and silica gel fibers mixed non-woven fabric made by electro-spinning method has a bioactivity. It means it has a potential to be used as a bone grafting material because of its apatite-forming ability, high surface area to volume ratio and high porosity.

Info:

Periodical:

Key Engineering Materials (Volumes 361-363)

Main Theme:

Edited by:

Guy Daculsi and Pierre Layrolle

Pages:

519-522

Citation:

Y. J. Seol et al., "Preparation of Bioactive Poly(Lactic-Co-Glycolic)Acid and Silica Gel Fibers Mixed Non-Woven Fabric", Key Engineering Materials, Vols. 361-363, pp. 519-522, 2008

Online since:

November 2007

Export:

Price:

$38.00

[1] Sung H. -J., Meredith C., Johnson C., Galis Z. S.: Biomaterials 25 (2004), p.5735.

[2] Kim K., Luu Y. K., Chang C., Fang D., Hsiao B. S., Chu B., Hadjiargyrou M.: J. Controll. Rel. 98 (2004), p.47.

[3] Kwon I. K., Kidoaki S., Matsuda T.: Biomaterials 26 (2005), p.3929.

[4] Li M., Mondrinos M. J., Gandhi M. R., Ko F. K., Weiss A. S., Lelkes P. I.: Biomaterials 26 (2005), p.5999.

[5] Hwang M., Rhee S. -H., Lee Y. -K., Lim B. -S.: Key Eng. Mater. 309-311 (2006), p.469.

[6] Rhee S. -H., Chung I. -Y., Lee Y. -K., Lim B. -S., Seol Y. -J.: Key Eng. Mater. 330-332 (2007), p.699.

[7] Rhee S. -H., Lee Y. -K., Lim B. -S.: Key Eng. Mater. 309-311 (2006), p.465.

[8] Chen Q., Miyaji F., Kokubo T., Nakamura T.: Biomaterials 20 (1999), p.1127.

[9] Kamitakahara M., Kawashita M., Miyata N., Kokubo T., Nakamura T.: J Mater Sci Mater Med 13 (2002), p.1015.

[10] Rhee S. H.: J Biomed Mater Res 67A (2003), p.1131.

[11] Rhee S. H.: Biomaterials 24 (2003), p.1721.

[12] Rhee S. H.: Biomaterials 25 (2004), p.1167.

[13] Rhee S. H., Choi J. Y., Kim H. M.: Biomaterials 23 (2002), p.4915.

[14] Rhee S. H., Lee Y. K., Lim B. S., Yoo J. J., Kim H. J.: Biomacromolecules 5 (2004), p.1575.

[15] Yoo J. J., Rhee S. H.: J Biomed Mater Res 68A (2004), p.401.

[16] Kokubo T., Kushitani H., Sakka S., Kitsugi T., Yamamuro T.: J Biomed Mater Res 24 (1990), p.721.

[17] Kokubo T., Kushitani H., Ohtsuki C., Sakka S., Yamamuro T.: J Mater Sci: Mater Med 3 (1992), p.79.

[18] Ohtsuki C., Kokubo T., Yamamuro T.: J Non-Cryst Solids 143 (1992), p.84.

[19] Tanahashi M., Kokubo T., Nakamura T., Katsura Y., Nagano M.: Biomaterials 17 (1996), p.47.
