For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Preparation of Porous Polycaprolactone Scaffolds by Using Freeze-Drying Combined Porogen-Leaching Methods
p.1224
Effect of Carbonate on the Properties of Bone Cement Containing PCCP and DCPA
p.1227
Improved Principal Component Analysis on the Comprehensive Hemocompatibility Evaluation of Biomaterials
p.1231
Reconstruction of Cranial Bone Defects Using a Compound of Bone Marrow Stromal Cells and Hydroxyapatite-Tricalcium Phosphate
p.1235
Preparation of Hydroxyapatite Coatings on Carbon/Carbon Composites by a Hydrothermal Electrodeposition Process
p.1238
Residual Stress and Reliability of Glass/Alumina Dental Bi-Layer Ceramics
p.1241
Effect of Multiple Firing on Wear Behavior of Dental Veneering Ceramic
p.1245
Strength and Fracture Mode for Dental Colored ZrO2 Ceramics Coated with Dental Porcelain
p.1248
Mechanical Properties and Microstructure of Partially Sintered Zirconia Ceramics
p.1252

Preparation of Hydroxyapatite Coatings on Carbon/Carbon Composites by a Hydrothermal Electrodeposition Process

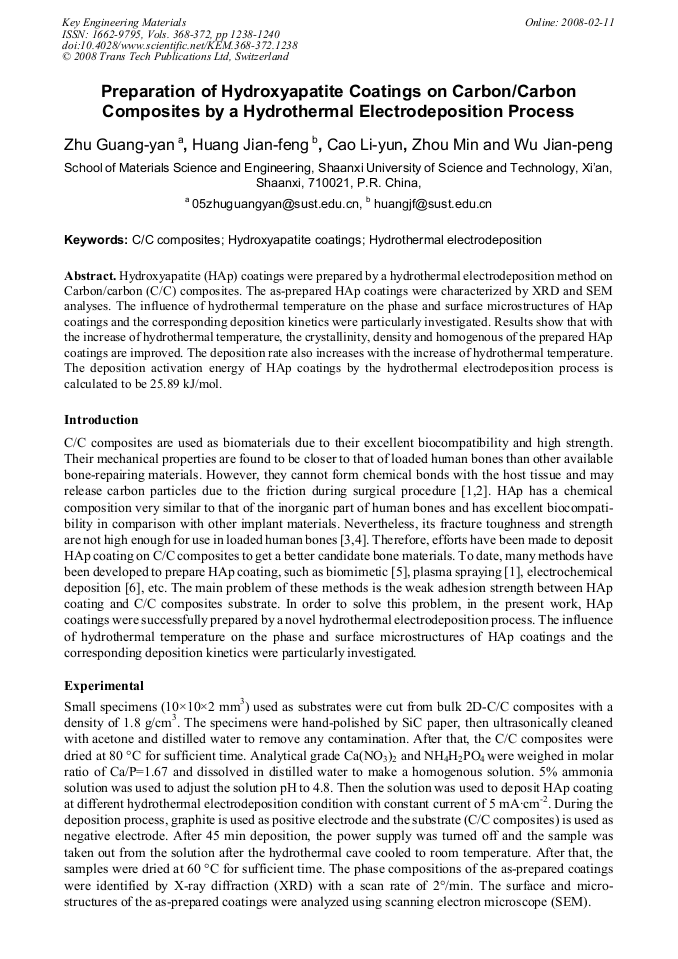

Article Preview

Abstract:

Hydroxyapatite (HAp) coatings were prepared by a hydrothermal electrodeposition method on Carbon/carbon (C/C) composites. The as-prepared HAp coatings were characterized by XRD and SEM analyses. The influence of hydrothermal temperature on the phase and surface microstructures of HAp coatings and the corresponding deposition kinetics were particularly investigated. Results show that with the increase of hydrothermal temperature, the crystallinity, density and homogenous of the prepared HAp coatings are improved. The deposition rate also increases with the increase of hydrothermal temperature. The deposition activation energy of HAp coatings by the hydrothermal electrodeposition process is calculated to be 25.89 kJ/mol.

You might also be interested in these eBooks
High-Performance Ceramics V View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 368-372)

Pages:

1238-1240

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.368-372.1238

Citation:

Cite this paper

Online since:

February 2008

Authors:

Guang Yan Zhu, Jian Feng Huang, Li Yun Cao, Min Zhou, Jian Peng Wu

Keywords:

C/C Composite, Hydrothermal Electrodeposition, Hydroxyapatite Coating

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2008 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] J.L. Sui, M.S. Li, Y.P. Lu, et al.: Surf. Coat. Technol. Vol. 176 (2004), p.188.

Google Scholar

[2] J.L. Sui, M.S. Li, Y.P. Lu, et al.: Surf. Coat. Technol. Vol. 190 (2005), p.287.

Google Scholar

[3] A. Stoch, A. Brozeka, S. Błazewicz, et al.: J. Mol. Strucr. Vol. 651-653 (2003), p.389.

Google Scholar

[4] W. Z. Zhao, G. Zhang, H.G. Li: J. Cent. Sout. Univ. Technol. Vol. 11.

Google Scholar

[2] (2004), p.147.

Google Scholar

[5] X.B. Xiong, J.H. Li. J.F. Huang, et al.: Rare Mater. Eng. Vol. 33.

Google Scholar

[3] (2004), p.313.

Google Scholar

[6] R.C. R, L.M. A, G.M. J, et al.: J. Eup. Ceram. Soc. Vol. 18.

Google Scholar

[9] (1998), p.1351.

Google Scholar

[7] X.C. Fu, W.X. Shen, T.Y. Yao: Physical Chemistry (Higher Education Press, Beijing, China, 1990), p.747.

Google Scholar

[8] X.B. Xiong, J.H. Li. X.R. Zeng, et al.: Rare Mater. Eng. Vol. 35.

Google Scholar

[9] (2006), p.1418. 2. 3 2. 4 2. 5 -3. 0 -2. 5 R 2=0. 99 y=4. 620-3. 114X lnK 1/T×10-3( 1/K) Ea=25. 89KJ/mol Fig. 4 Relationship between lnK and 1/T.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
