Effect of Strain-Induced Martensitic Transformation on Coaxing Effect of Austenitic Stainless Steels

Article Preview

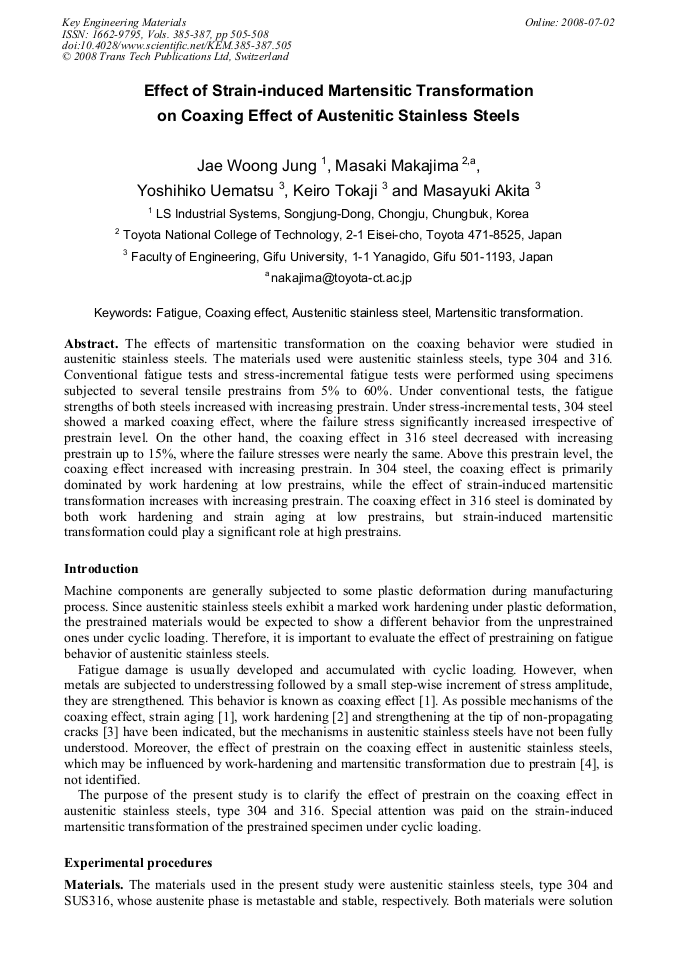

Abstract:

The effects of martensitic transformation on the coaxing behavior were studied in austenitic stainless steels. The materials used were austenitic stainless steels, type 304 and 316. Conventional fatigue tests and stress-incremental fatigue tests were performed using specimens subjected to several tensile prestrains from 5% to 60%. Under conventional tests, the fatigue strengths of both steels increased with increasing prestrain. Under stress-incremental tests, 304 steel showed a marked coaxing effect, where the failure stress significantly increased irrespective of prestrain level. On the other hand, the coaxing effect in 316 steel decreased with increasing prestrain up to 15%, where the failure stresses were nearly the same. Above this prestrain level, the coaxing effect increased with increasing prestrain. In 304 steel, the coaxing effect is primarily dominated by work hardening at low prestrains, while the effect of strain-induced martensitic transformation increases with increasing prestrain. The coaxing effect in 316 steel is dominated by both work hardening and strain aging at low prestrains, but strain-induced martensitic transformation could play a significant role at high prestrains.

You might also be interested in these eBooks

Info:

Periodical:

Key Engineering Materials (Volumes 385-387)

Pages:

505-508

Citation:

Online since:

July 2008

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2008 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] G.M. Sinclair: Proc. ASTM, 52 (1952), pp.743-758.

Google Scholar

[2] H. Nisitani and S. Nishida: Transactions of the JSME, 39-321 (1973), pp.1385-1394.

Google Scholar

[3] H. Nisitani and Y. Yamaguchi: Transactions of the JSME, 45-391 (1979), pp.260-266.

Google Scholar

[4] A. Oda: J. Soc. Mater. Sci., Japan, 23-247 (1974), pp.279-285.

Google Scholar

[5] T. Ogawa and K. Tokaji: Proceedings of the VHCF-3, Kusatsu, Japan, (2004), pp.366-373. Fig. 4 Variation in volume fraction of martensite phase with cyclic loading in 304 steel. 300 400 500 600 700.

Google Scholar

[5] [10] [15] [20] [25] Stress amplitude σa (MPa) Volume fraction of martensite phase Vα (%) SUS304 Unprestrain 30%Prestrain 60%Prestrain 400 500 600.

Google Scholar

[5] [10] [15] Stress amplitude σa (MPa) Volume fraction of martensite phase Vα (%) SUS316 25%Prestrain 58%Prestrain Fig. 5 Variation in volume fraction of martensite phase with loading amplitude under stress-incremental test: (a) Type304, (b) Type316. (a) Type 304 (b) Type 316.

Google Scholar

[10] [4] [10] [5] [10] [6] [10] [7] [0] [10] [20] [30] Number of cycles N Volume fraction of martensite SUS304 Unprestrain 30% prestrain 60% prestrain Before test phase Vα (%).

Google Scholar
