Stochastic Characteristics of Fatigue Crack Propagation for TA15 Titanium Alloy

Rui Bao; Jian Yu Zhang; Hong Qin Yang; Bin Jun Fei

doi:10.4028/www.scientific.net/KEM.417-418.873

Paper Titles

Analytical Solution of Elastic-Plastic Buckling of an H-Shaped Steel Column under Axial Compressive Load and Bending Moment
p.857

Damage Investigation and Design of Woven Composite Bonded Joint
p.861

Stress Concentration Positions Determination of Ferromagnetic Material Based on Magnetic Test Method
p.865

Dynamic Anti-Plane Characteristic of Two Dissimilar Piezoelectric Media with an Interfacial Crack
p.869

Stochastic Characteristics of Fatigue Crack Propagation for TA15 Titanium Alloy
p.873

The Effect of Stress Amplitude on Multi-Axial High-Cycle Fatigue Failure under Constant Amplitude Loading
p.877

Modified Swift Criteria for Residual Strength of Multiple Site Damage Structure
p.881

3D Numerical Simulation and Fatigue Life Prediction of High Strength Threaded Bolt
p.885

Seismic Damage Analysis of the Teaching Buildings in Leigu Town in the Wenchuan Earthquake
p.889

HomeKey Engineering MaterialsKey Engineering Materials Vols. 417-418Stochastic Characteristics of Fatigue Crack...

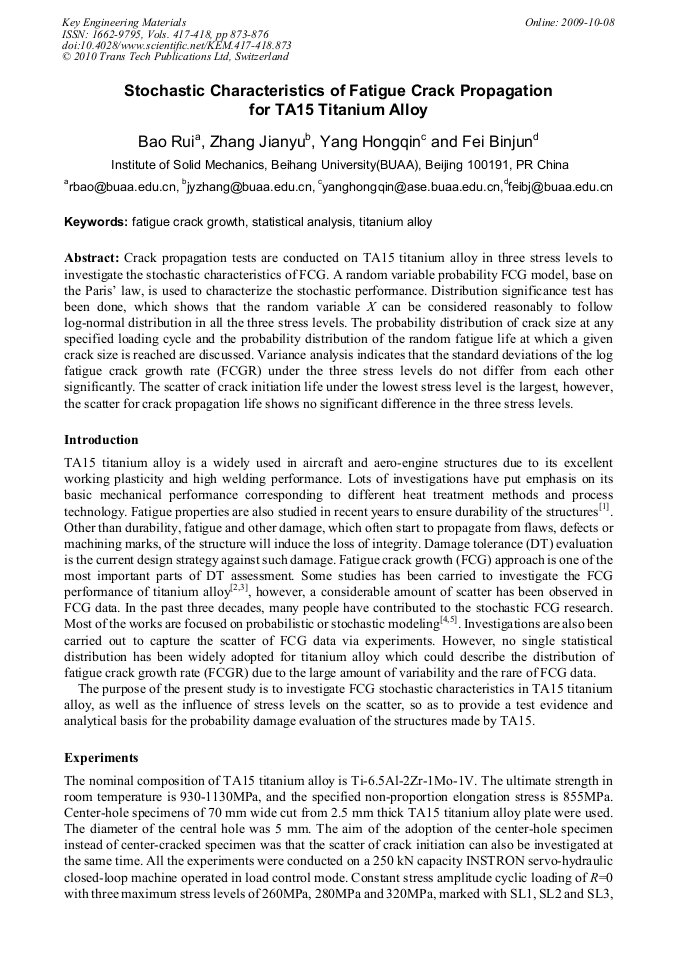

Stochastic Characteristics of Fatigue Crack Propagation for TA15 Titanium Alloy

Abstract:

Crack propagation tests are conducted on TA15 titanium alloy in three stress levels to investigate the stochastic characteristics of FCG. A random variable probability FCG model, base on the Paris’ law, is used to characterize the stochastic performance. Distribution significance test has been done, which shows that the random variable X can be considered reasonably to follow log-normal distribution in all the three stress levels. The probability distribution of crack size at any specified loading cycle and the probability distribution of the random fatigue life at which a given crack size is reached are discussed. Variance analysis indicates that the standard deviations of the log fatigue crack growth rate (FCGR) under the three stress levels do not differ from each other significantly. The scatter of crack initiation life under the lowest stress level is the largest, however, the scatter for crack propagation life shows no significant difference in the three stress levels.

You might also be interested in these eBooks

Advances in Fracture and Damage Mechanics VIII

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 417-418)

Pages:

873-876

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.417-418.873

Citation:

Cite this paper

Online since:

October 2009

Authors:

Rui Bao, Jian Yu Zhang, Hong Qin Yang, Bin Jun Fei

Keywords:

Fatigue Crack Growth (FCG), Statistical Analysis, TiAl

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R.G. Tryon, T.A. Cruse: J Eng Mater Tech Vol. 122( 2000) pp.209-214.

Google Scholar

[2] J.P. Thomas: Scripta Materialia Vol. 39(1998), pp.1647-1652.

Google Scholar

[3] A.L. Pilchak, A. Bhattacharjee, et al: Int J Fatigue Vol. 31(2009), pp.989-994.

Google Scholar

[4] J.N. Yang, S.D. Manning: Eng. Fract. Mech. Vol. 37(1990), pp.1105-1124.

Google Scholar

[5] N. Malésys, L. Vincent, F. Hild: Int. J. Fatigue Vol. 31(2009), pp.565-574.

Google Scholar

[6] P. Paris, F. Erdogan: Trans ASME J. Basic Eng. Vol. 85(1963), pp.528-534.

Google Scholar

[7] Y.K. Lin, J.N. Yang: AIAA Journal Vol. 23(1985), pp.117-124.

Google Scholar

[8] C.J. Stone: A Course in Probability and Statistics. (China Machine Press, China 2003). Table 4 statistic characteristics of log FCG life SL1 SL2 SL3 mma 2= µ 5. 24624 5. 14099 4. 87242 σ 0. 14212 0. 10061 0. 1051 mma 16= µ 4. 4229 4. 33478 4. 14321 σ 0. 0678 0. 08201 0. 06744.

Google Scholar
