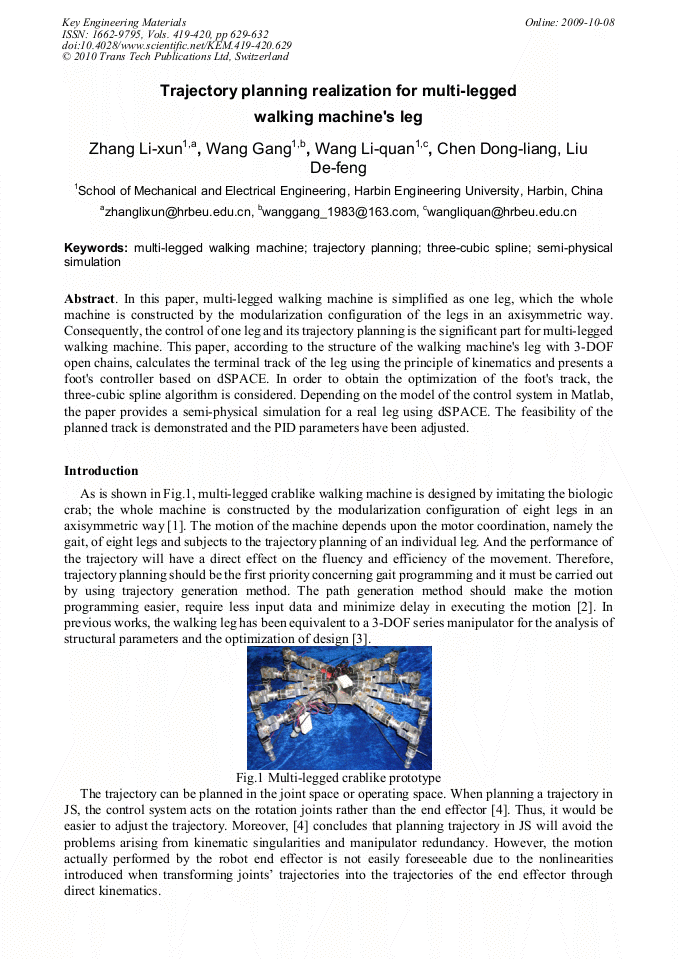

Trajectory Planning Realization for Multi-Legged Walking Machine's Leg

Abstract:

In this paper, multi-legged walking machine is simplified as one leg, which the whole machine is constructed by the modularization configuration of the legs in an axisymmetric way. Consequently, the control of one leg and its trajectory planning is the significant part for multi-legged walking machine. This paper, according to the structure of the walking machine's leg with 3-DOF open chains, calculates the terminal track of the leg using the principle of kinematics and presents a foot's controller based on dSPACE. In order to obtain the optimization of the foot's track, the three-cubic spline algorithm is considered. Depending on the model of the control system in Matlab, the paper provides a semi-physical simulation for a real leg using dSPACE. The feasibility of the planned track is demonstrated and the PID parameters have been adjusted.

• Periodical: Key Engineering Materials (Volumes 419-420)
• Pages: 629-632
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.419-420.629
• Online since: October 2009
• Authors: Li Xun Zhang, Gang Wang, Li Quan Wang, Dong Liang Chen, De Feng Liu
• Keywords: Multi-Legged Walking Machine, Semi-Physical Simulation, Three-Cubic Spline, Trajectory Planning

References

[1] Wang Gang, Meng Qing-xin and Chen Dong-liang: Mechanical Engineer (2008), pp.132-133.

[2] Shafaat Ahmed Bazaz and Bertrand Tond: AMC '98-COIMBRA, pp.493-498.

[3] Wang Gang, Zhang Li-xun and Chen Dong-liang: submitted to ICMTMA (2009).

[4] A. Gasparetto, V. Zanotto: Mechanism and Machine Theory (2007), pp.455-471.

[5] Zhang Rui-feng, Ni Shi-hong and Yu Ying-xiao: Aircraft Design (2005), pp.37-39.

[6] Li Qing-yang, Wang Neng-chao, in: �umerical Analysis, edited by East China Normal University, chapter, 2 (2006), pp.35-40.
