FEM of Saw Tooth Chip Formation under Different Cutting Edge

Abstract:

The generation procedure of saw tooth chip when PCBN tools orthogonal cutting hard steel GCr15 is emulated by FEM software ABAQUS in this study. The model effectively overcomes serious element distortions and cell singularity in high strain domain caused by large material deformation. The effects of cutting edge preparation on cutting force, cutting temperature and residual stress are analyzed. Results of FEM show that cutting edge preparation has a great impact on cutting procedure. Under the same cutting condition, cutting force, temperature and residual stress of sharp edge, honed edge and chamfered edge increases in turn, and three kinds of cutting edge have the same change rule in residual stress. Chamfered edge has a good temperature distributing, and it is the best edge preparation in hard cutting.

You might also be interested in these eBooks

Machining and Advanced Manufacturing Technology X

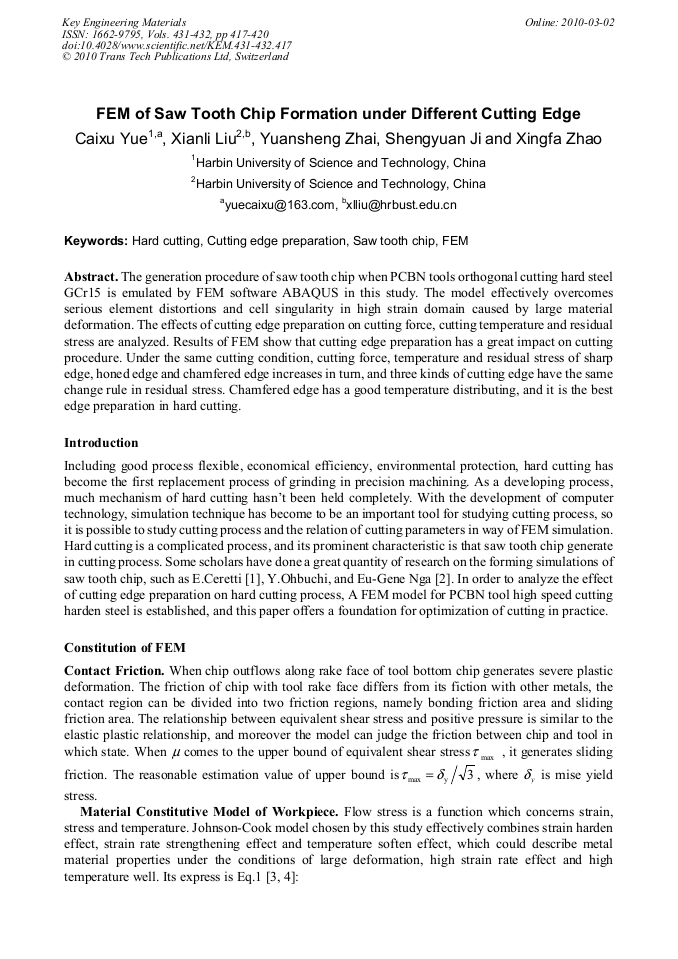

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 431-432)

Pages:

417-420

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.431-432.417

Citation:

Cite this paper

Online since:

March 2010

Authors:

Cai Xu Yue, Xian Li Liu, Yuan Sheng Zhai, Sheng Yuan Ji, Xing Fa Zhao

Keywords:

Cutting Edge Preparation, Finite Element Model (FEM), Hard Cutting, Saw Tooth Chip

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] E. Cerettia, M. Lucchia and T. Altanb: Journal of Materials Processing Technology (1999), pp.17-26.

Google Scholar

[2] E.G. Nga and K. Aspinwall: Journal of Materials Processing Technology, Vol. 127 (2002), pp.222-229.

Google Scholar

[3] H.A. Kishawy and M.A. Elbestawi: International Journal of Machine Tools and Manufacture, Vol. 39 (1999), pp.1017-1030.

DOI: 10.1016/s0890-6955(98)00084-4

Google Scholar

[4] Y.B. Guo, Q. Wen and K.A. Woodbury: Journal of Manufacturing Science and Engineering, Vol. 128(2006), pp.749-759. Fig. 7 Residual stress simulation results under three cutting conditions c chemferd tool b honed tool a sharp tool.
