Characterization of Microwave Ceramics with Low Permittivity and High Quality Factors

Zhao Xian Xiong; M.Y. Zhou; Hao Xue; Hong Qiu; F. Xiao

doi:10.4028/www.scientific.net/KEM.434-435.244

Paper Titles

Microstructure and Leakage Current Characteristics of ZrTiO₄ Thin Films by Sol-Gel Method
p.228

Preparation and Microwave-Absorption Property of SiO₂-SiC-Based Composites
p.231

Microstructures and Microwave Properties of CaTiO₃ Doped (ZnMg)TiO₃ Dielectrics with CaO-B₂O₃-SiO₂ Addition
p.235

Magnetic Properties of Manganese-Titanium Substituted Barium Ferrite Ba(TiMn)_xFe_12-2xO₁₉(x=0.0, 0.5, 1.0, 1.5, 2.0) Prepared by the Molten Salt Method
p.240

Characterization of Microwave Ceramics with Low Permittivity and High Quality Factors
p.244

Fabrication of Barium Titanate Inverse Opals by Sol-Gel Electrophoretic Deposition Process
p.247

Dielectric Properties of CaCu₃Ti₄O₁₂ Ceramics
p.253

Sol-Gel Process for the Synthesis of Single-Phased BaTi₂O₅ Powder
p.256

Develop Single-Phase High Dielectric Constant SiO₂-Based Composite Gate Dielectric
p.259

HomeKey Engineering MaterialsKey Engineering Materials Vols. 434-435Characterization of Microwave Ceramics with Low...

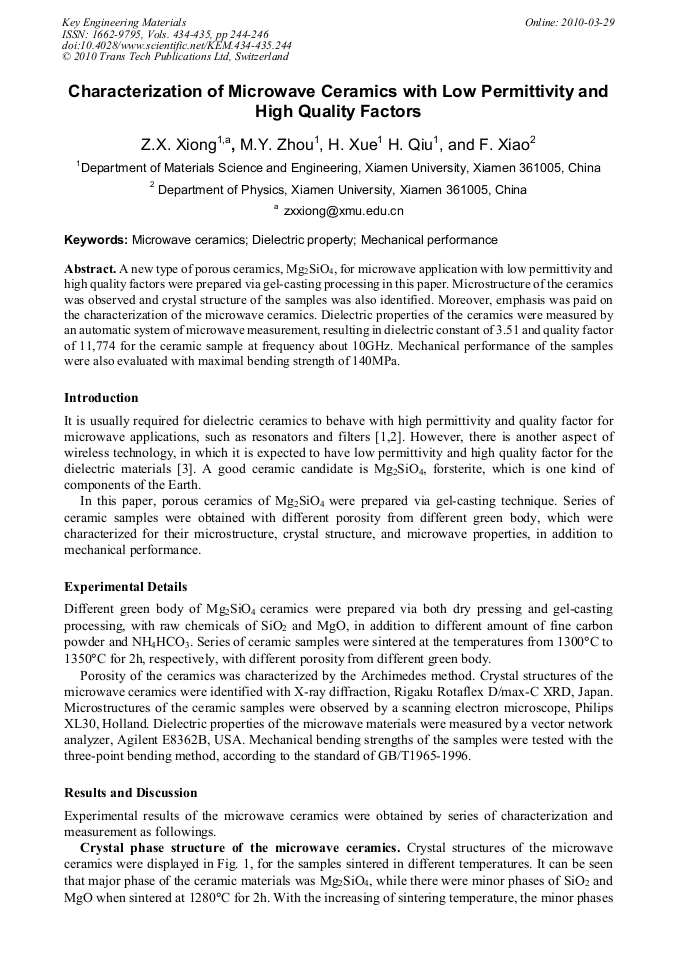

Characterization of Microwave Ceramics with Low Permittivity and High Quality Factors

Abstract:

A new type of porous ceramics, Mg2SiO4, for microwave application with low permittivity and high quality factors were prepared via gel-casting processing in this paper. Microstructure of the ceramics was observed and crystal structure of the samples was also identified. Moreover, emphasis was paid on the characterization of the microwave ceramics. Dielectric properties of the ceramics were measured by an automatic system of microwave measurement, resulting in dielectric constant of 3.51 and quality factor of 11,774 for the ceramic sample at frequency about 10GHz. Mechanical performance of the samples were also evaluated with maximal bending strength of 140MPa.
