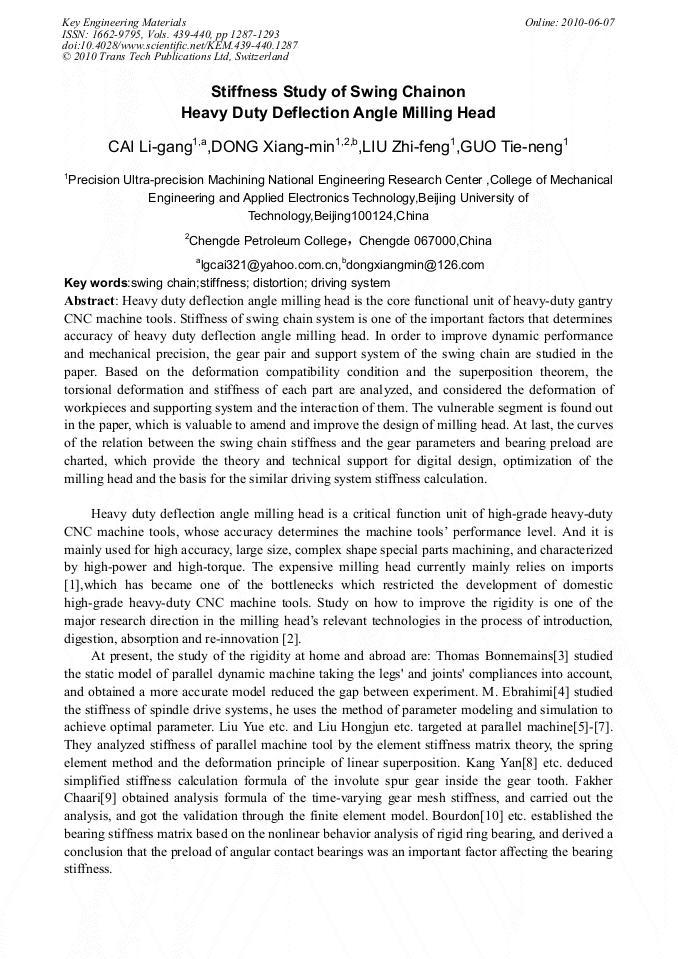

Stiffness Study of Swing Chainon Heavy Duty Deflection Angle Milling Head

Abstract:

Heavy duty deflection angle milling head is the core functional unit of heavy-duty gantry CNC machine tools. Stiffness of swing chain system is one of the important factors that determines accuracy of heavy duty deflection angle milling head. In order to improve dynamic performance and mechanical precision, the gear pair and support system of the swing chain are studied in the paper. Based on the deformation compatibility condition and the superposition theorem, the torsional deformation and stiffness of each part are analyzed, and considered the deformation of workpieces and supporting system and the interaction of them. The vulnerable segment is found out in the paper, which is valuable to amend and improve the design of milling head. At last, the curves of the relation between the swing chain stiffness and the gear parameters and bearing preload are charted, which provide the theory and technical support for digital design, optimization of the milling head and the basis for the similar driving system stiffness calculation.

• Periodical: Key Engineering Materials (Volumes 439-440)
• Pages: 1287-1293
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.439-440.1287
• Online since: June 2010
• Authors: Li Gang Cai, Xiang Min Dong, Zhi Feng Liu, Tie Neng Guo
• Keywords: Distortion, Driving System, Stiffness, Swing Chain

References

[1] Wang Nan. The analysis of development and application of numerical control technology. Equipment Manufacturing Technology, 2008, 4: 20-122.

[2] Koren, Y. Design of a digital loop for numerical control. IEEE Trans. on Ind. Elec. &Cont. Inst., IECI(3), 1978: 212-217.

DOI: 10.1109/tieci.1978.351554

[3] Thomas Bonnemains, Hélène Chanal, Belhassen-Chedli, Bouzgarrou, Pascal Ray. Stiffness computation and identification of parallel kinematic machine tools. Trans ASME, Journal of Manufacturing Science and Engineering, 2009, 131: 1-7.

DOI: 10.1115/1.3160328

[4] M. Ebrahimi, Analysis, modeling and simulation of stiffness in machine tool drives. Computers & Industrial Engineering, 2000, 38: 93-105.

DOI: 10.1016/s0360-8352(00)00031-0

[5] Liu Yue, Wang Jin-song, Wang Li-ping. Static stiffness research of a hybrid machine tool based on the element stiffness matrix. China Mechanical Engineering, 2008, 19(24): 2899-2902.

[6] LIU Yue, WANG Jin-song. Static stiffness research and optimization on a hybrid machine tool considering the stiffnesses of bearings and guideways. Chinese Journal of Mechanical Engineering, 2007, 43(9) : 151-155.

DOI: 10.3901/jme.2007.09.151

[7] LIU Hong-jun, JIANG Chun-ying, FANG Li-jin, et al. Stiffness analysis and experiment of a parallel kinematic planer. Robot, 2006, 28(1) : 10-13, 24.

[8] KANG Yan, SHI Zhao-yao, YAO Wen-xi , et al. Simplified calculation of tooth stiffness of the involute internal spur gear. Journal of Beijing University of Technology, 2007, 33(12) : 1246-1251.

[9] Fakher Chaari, Tahar Fakhfakh, Mohamed Haddar. Analytical modelling of spur gear tooth crack and influence on gearmesh stiffness. European Journal of Mechanics A/Solids, 2009, 28: 461-468.

DOI: 10.1016/j.euromechsol.2008.07.007

[10] A Bourdon, J F Rigal, D Play. Static Rolling Bearing Models in a CAD Environment for the Study of Complex System. Trans ASME, Journal of Tribology, 1999, 121 (2): 205-214.

DOI: 10.1115/1.2833923

[11] ZHU Xiao-lu, E Zhong-kai. Load capacity analysis of gear. beijing: Higher Education Press, 1992: 26-34.

[12] Wang Jian-jun, Zhang Yong-zhong, Wei Ren-zhi. The methods of determining the elastic deformation of gear teeth reviews. Mechanical Science and Technology, 1996, 15(6) : 863-870.

[13] Machine Design Manual》Writing Group. Machine Design Manual [M]. beijing: Machinery Industry Press, 1979: 588-591.
