Effect of Metal-Dielectric Interfaces on Tunability in Barium Strontium Titanate Thin-Film Capacitor

Abstract:

We investigated an influence of interface layer on a tunability of parallel plate (Ba, Sr)TiO3 thin film capacitors. BST thin film capacitors with top electrode of Pt, Au and Ag were fabricated. BST films had thickness of 40, 60, 80 and 120nm. The tunability increased with increasing the BST film thickness. Considering the interfaces between BST films and electrodes as Schottky junctions, depletion layers were formed in the interfaces depending on the difference of the work function of metal electrodes. Larger external bias voltages were applied to the depletion layer than interior BST film, because the permittivity in the depletion layer was smaller than that in interior BST film. Therefore, the depletion layer lowered the tunability. Tunability decreased with increasing the thickness of the depletion layers.

You might also be interested in these eBooks

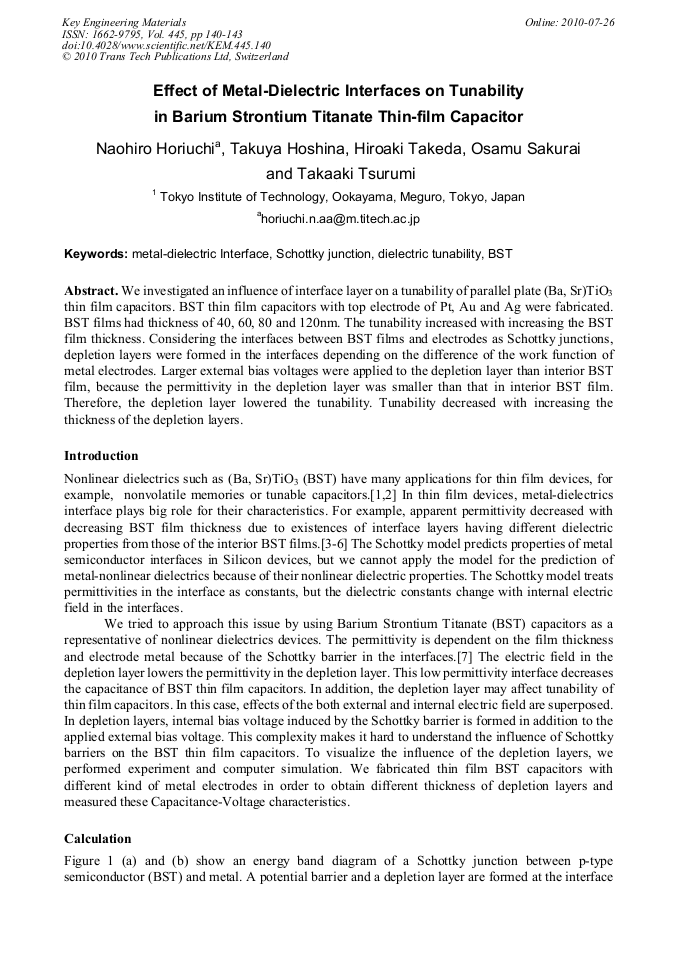

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 445)

Pages:

140-143

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.445.140

Citation:

Cite this paper

Online since:

July 2010

Authors:

Naohiro Horiuchi, Takuya Hoshina, Hiroaki Takeda, Osamu Sakurai, Takaaki Tsurumi

Keywords:

BST, Dielectric Tunability, Metal-Dielectric Interface, Schottky Junction

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] P. Bao, T. J. Jackson, X. Wang and M. J. Lancaster, J. Phys. D: Appl. Phys., 41, 063001 (2008).

Google Scholar

[2] A. K. Tagantsev, V. O. Sherman, K. F. Astafiev, J. Venkatesh, and N. Setter, J. Electroceram., 5 (2003) 11.

Google Scholar

[3] D. S. Boesch, J. Son, J. M. LeBeau, J. Cagnon, and S. Stemmer, Appl. Phys. Exp., 1, 091602 (2008).

Google Scholar

[4] N. H. Finstorm, J. Cagnon, and S. Stemmer, J. Appl. Phys., 101, 034109 (2007).

Google Scholar

[5] L. J. Sinnamon, R. M. Bowman, and J. M. Gregg, Appl. Phys. Lett., 78, 1724 (2001).

Google Scholar

[6] C. S. Hwang, B. T. Lee, C. S. Kang, K. H. Lee, H. J. Cho, H. Hideki, W. D. Kim, S. I. Lee, and M. Y. Lee, J. Appl. Phys., 85, 287 (1999).

Google Scholar

[7] N. Horiuchi, T. Matsuo, T. Hoshina, H. Kakemoto and T. Tsurumi, Appl. Phys. Lett., 94, 102904 (2009).

DOI: 10.1063/1.3098069

Google Scholar

[8] S. M. Sze: Physics of Semiconductor Device, 2nd ed. (wiley, New York, 1981).

Google Scholar

[9] O. G. Vendik and S. P. Zubko, J. Appl. Phys., 82, 4475 (1987).

Google Scholar

[10] H. Chen, C. Yang, C. Fu, U. Zhang, J. Liao, L. Hu, Appl. Surf. Sci., 254, 3175 (2008).

Google Scholar
