Influence of Strain Rate on the Yielding Behavior and on the Self Heating of Thermoplastic Polymers Loaded under Tension

Article Preview

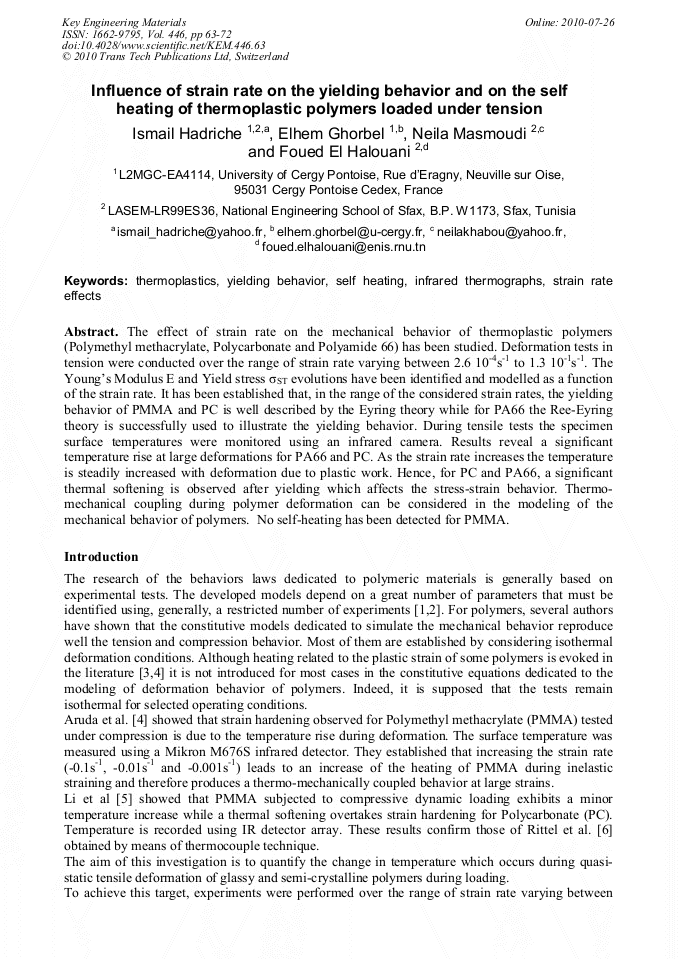

Abstract:

The effect of strain rate on the mechanical behavior of thermoplastic polymers (Polymethyl methacrylate, Polycarbonate and Polyamide 66) has been studied. Deformation tests in tension were conducted over the range of strain rate varying between 2.6 10-4s-1 to 1.3 10-1s-1. The Young’s Modulus E and Yield stress σST evolutions have been identified and modelled as a function of the strain rate. It has been established that, in the range of the considered strain rates, the yielding behavior of PMMA and PC is well described by the Eyring theory while for PA66 the Ree-Eyring theory is successfully used to illustrate the yielding behavior. During tensile tests the specimen surface temperatures were monitored using an infrared camera. Results reveal a significant temperature rise at large deformations for PA66 and PC. As the strain rate increases the temperature is steadily increased with deformation due to plastic work. Hence, for PC and PA66, a significant thermal softening is observed after yielding which affects the stress-strain behavior. Thermo-mechanical coupling during polymer deformation can be considered in the modeling of the mechanical behavior of polymers. No self-heating has been detected for PMMA.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

63-72

Citation:

Online since:

July 2010

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] E. Ghorbel: Int J of Plast Vol. 24 (2008), p. (2032).

Google Scholar

[2] Y. Tomita: Int J of Plast Vol. 42 (2000) , p.1455.

Google Scholar

[3] I. Hadriche, N. Masmoudi, E. Ghorbel and F. El Halouani: Experimental characterisation of the deformation behaviour of thermoplastic polymers under torsion, Proceedings of the 4th Int. Conference on Advances in Mechanical Engineering and Mechanics, MATE21 (2008).

Google Scholar

[4] E.M. Arruda, M.C. Moyce and R. Jayachandran: Mecha. of Mater. Vol. 19 (1995), p.193.

Google Scholar

[5] Z. Li, J. Lambros: Int. J. of Solids and Struct. Vol. 38 (2001), p.3549.

Google Scholar

[6] D. Rittel: Mecha. of Mater. Vol. 31 (1999), p.131.

Google Scholar

[7] M. Clark, D. Mc Cann and M. Forde: NDT&E Int. Vol. 36 No. 4 (2003), p.265.

Google Scholar

[8] L. Li, B. Li and F. Tang: Eur. Polyme. J. Vol. 43 (2007), p.2604.

Google Scholar

[9] X. Zhang, Y. Li, G. Lv, Y. Zuo and Y. Mu: Polyme. Degrad. and Stab. Vol. 91 (2006) , p.1202.

Google Scholar

[10] C. G'Sell, J.M. Hiver and A. Dahoun: Int. J. of Solids and Struct. Vol. 39 Issues 13-14 , JuneJuly (2002) , p.3857.

Google Scholar

[11] C. Bauwens-Crowet and J. C. Bauwens: J. of Mater. Sci. Vol. 14 (1979), p.1817.

Google Scholar

[12] I. Ghorbel, F. Thominette, P. Spiteri and J. Verdu: J. App. Polyme. Sci. Vol. 55 (1995), p.163.

Google Scholar

[13] G.F. Shan, W. Yang, M. Yang, B. Xie, J. Feng and Q. Fu: Polyme. Vol. 48 (2007), p.2958.

Google Scholar

[14] F. Rietsch and B. Bouette: Eur. Polym. J. Vol. 26 No. 10 (1990), p.1071.

Google Scholar

[15] J. Richeton, S. Ahzi, L. Daridon and Y. Rémond: Polyme. Vol. 46 (2005), p.6035.

Google Scholar

[16] S. Deschanel, B.P. Greviskes, K. Bertoldi, S.S. Sarva, W. Chen, S.L. Samuels, R.E. Cohen and M.C. Boyce: Polyme. Vol. 50 (2009) , p.227.

DOI: 10.1016/j.polymer.2008.10.049

Google Scholar

[17] F. Povolo, G. Schwartz and É. B. Hermida: J. of Polyme. Sci. Part A: Polymer Chemistry Vol. 34 Issue 7 (1998), p.1257.

Google Scholar

[18] C.M. Chaléat, G. Michel-Amadry, P.J. Halley and R.W. Truss: Carbohydr. Polyme. Vol. 74 (2008), p.366.

Google Scholar
