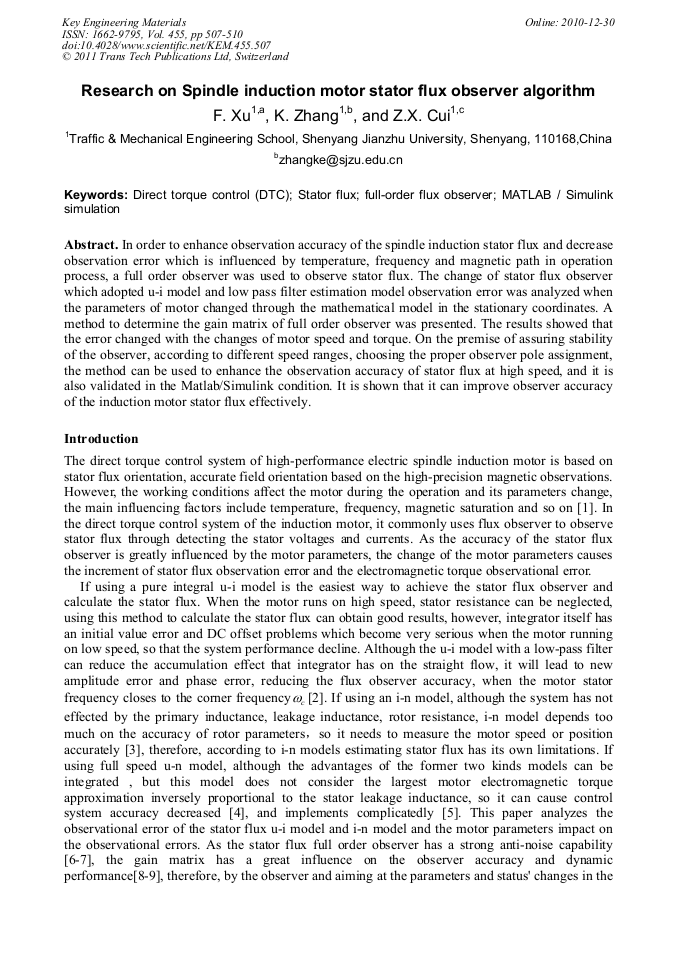

Research on Spindle Induction Motor Stator Flux Observer Algorithm

Abstract:

In order to enhance observation accuracy of the spindle induction stator flux and decrease observation error which is influenced by temperature, frequency and magnetic path in operation process, a full order observer was used to observe stator flux. The change of stator flux observer which adopted u-i model and low pass filter estimation model observation error was analyzed when the parameters of motor changed through the mathematical model in the stationary coordinates. A method to determine the gain matrix of full order observer was presented. The results showed that the error changed with the changes of motor speed and torque. On the premise of assuring stability of the observer, according to different speed ranges, choosing the proper observer pole assignment, the method can be used to enhance the observation accuracy of stator flux at high speed, and it is also validated in the Matlab/Simulink condition. It is shown that it can improve observer accuracy of the induction motor stator flux effectively.

• Periodical: Key Engineering Materials (Volume 455)
• Pages: 507-510
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.455.507
• Online since: December 2010
• Authors: F. Xu, Ke Zhang, Zheng Xing Cui
• Keywords: Direct Torque Control (DTC), Full-Order Flux Observer, MATLAB, Simulink Simulation, Stator Flux

References

[1] LI Han-qiang. The analysis of equivalent circuit and parameters variations of vector control ininduction motor[J]. Journal of Wuhan Transportation University, 1999, 23(5), pp.469-472.

[2] WAN Yu-bin, HU Chan-juan and WAN Shu-yun. Stator flux linkage estimator and parameterdesign method based on voltage model[J]. Electric Drive, 2006, 36(3), pp.15-18.

[3] Habetler T G. Stator resistance tuning in a stator flux-oriented drive using an instantaneous hybrid flux estimator[J]. IEEE Trans Power Electron, 1998, 13(1), pp.125-132.

DOI: 10.1109/63.654966

[4] FAN Shuang-ying, ZHANG Ai-ling. Study of asynchronous machine with an improved of stator flux observatory[J]. Electric Machines and Control, 2005, 9(6), pp.547-549.

[5] WEI Li-xiang, LIU Cong-wei and SUN Xu-dong, et al. New integra error correction method for rotor flux identification of AC drives[J]. Journal of Tsinghua University ， Science and Technology, 2001, 41(9), pp.51-54.

[6] Marko H, Jorma L. Parameter sensitivity of full-order flux observers for induction motors[J]. IEEE Trans Ind Application 2003, 39(4), pp.1127-1135.

DOI: 10.1109/tia.2003.814560

[7] XIE Hong-ming, CHEN Bo-shi. Indirect stator flux linkage calculation methods of induction motor[J]. Electric Drive, 1999 29(1), pp.11-15.

[8] Tajima H, Guidi G and Umida H. Consideration about problems and solutions of speed estimation method and parameter tuning for speed sensorless vector control of induction motor drives[J] IEEE Trans on Industry Application, 2002, 38(5), pp.1282-1289.

DOI: 10.1109/tia.2002.802893

[9] LI Jian-jun, SHENG Jie-bo and GUI Wei-hua, et al. Research on parameter identification method for induction motor[J] Transactions of China Electrotechnical Society, 2006, 21(1), pp.70-74.
