Influence of Iron Powder Addition on the Structure Characteristics of Hypereutectic Grey Cast Iron

Abstract:

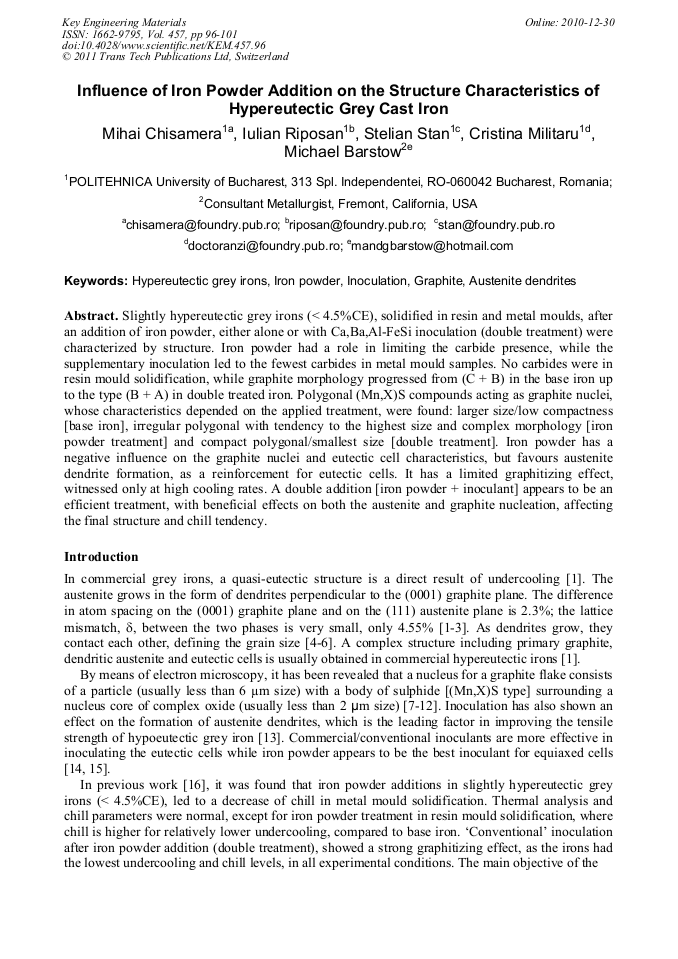

Slightly hypereutectic grey irons (< 4.5%CE), solidified in resin and metal moulds, after an addition of iron powder, either alone or with Ca,Ba,Al-FeSi inoculation (double treatment) were characterized by structure. Iron powder had a role in limiting the carbide presence, while the supplementary inoculation led to the fewest carbides in metal mould samples. No carbides were in resin mould solidification, while graphite morphology progressed from (C + B) in the base iron up to the type (B + A) in double treated iron. Polygonal (Mn,X)S compounds acting as graphite nuclei, whose characteristics depended on the applied treatment, were found: larger size/low compactness [base iron], irregular polygonal with tendency to the highest size and complex morphology [iron powder treatment] and compact polygonal/smallest size [double treatment]. Iron powder has a negative influence on the graphite nuclei and eutectic cell characteristics, but favours austenite dendrite formation, as a reinforcement for eutectic cells. It has a limited graphitizing effect, witnessed only at high cooling rates. A double addition [iron powder + inoculant] appears to be an efficient treatment, with beneficial effects on both the austenite and graphite nucleation, affecting the final structure and chill tendency.

• Periodical: Key Engineering Materials (Volume 457)
• Pages: 96-101
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.457.96
• Online since: December 2010
• Authors: Mihai Chisamera, Iulian Riposan, Stelian Stan, Cristina Militaru, Michael Barstow
• Keywords: Austenite Dendrite, Graphite, Hypereutectic Grey Iron, Inoculation, Iron Powder

References

[1] J. Zhou: CHINA FOUNDRY, Vol. 6 (3) (2009), p.255.

[2] X. Chen: Growth Mechanism of Spheroidal Graphite in Primary Crystallization of Cast Iron. (Harbin Institute of Technology Press, Harbin, China, 1978).

[3] T. Mizoguchi, J.H. Perepezko and C.R. Loper Jr: AFS Trans., Vol. 105 (1997), p.89.

[4] G.L. Rivera, R.E. Boeri and J.A. Sikora: AFS Trans., Vol. 111 (2003), p.979.

[5] G.L. Rivera, R.E. Boeri and J.A. Sikora: Int. J. Cast Met. Res., Vol. 16 (1-3), (2003), p.23.

[6] G.L. Rivera, P.R. Calvilo, R.E. Boeri and J.A. Sikora: Mat. Charact. Vol. 59 (2008), p.1342.

[7] R. Gundlach: The Honorary Cast Iron Lecture, AFS Metalcast. Congr., 2008, Atlanta, 08-158.

[8] I. Riposan, M. Chisamera, S. Stan, T. Skaland and M.I. Onsoien: AFS Trans., Vol. 109 (2001), 1151.

[9] I. Riposan, M. Chisamera, S. Stan and T. Skaland: Int. J. Cast Met. Res., Vol. 16 (1-3) (2003), p.105.

[10] I. Riposan, M. Chisamera, S. Stan, T. Skaland: AFS Iron Inoc. Conf., 2005, Schaumburg, p.31.

[11] M. Chisamera, I. Riposan, S. Stan, D. White and G. Grasmo: Int. J. Cast Met. Res., 21 (2008), 39.

DOI: 10.1179/136404608x361639

[12] I. Riposan, M. Chisamera, S. Stan, C. Hartung and D. White: Mat. Sci. Techn., Vol. 26 (2010).

[13] G.X. Sun, X.M. Zhu and H. Yan: Int. J. Cast Met. Res., Vol. 11 (5), (1999), p.363.

[14] A. Dioszegi, K.Z. Liu and I.L. Svensson: SPCI8 Conference, 2006, Beijing, China, p.74.

[15] L. Elmquist and A. Dioszegi: Research Report 2008: 1 (ISSN 1404-0018, www. hj. divaportal. org).

[16] M. Chisamera, I. Riposan, S. Stan, I. Anton, M. Barstow: SPCI9, 2010, Luxor, Egypt.
