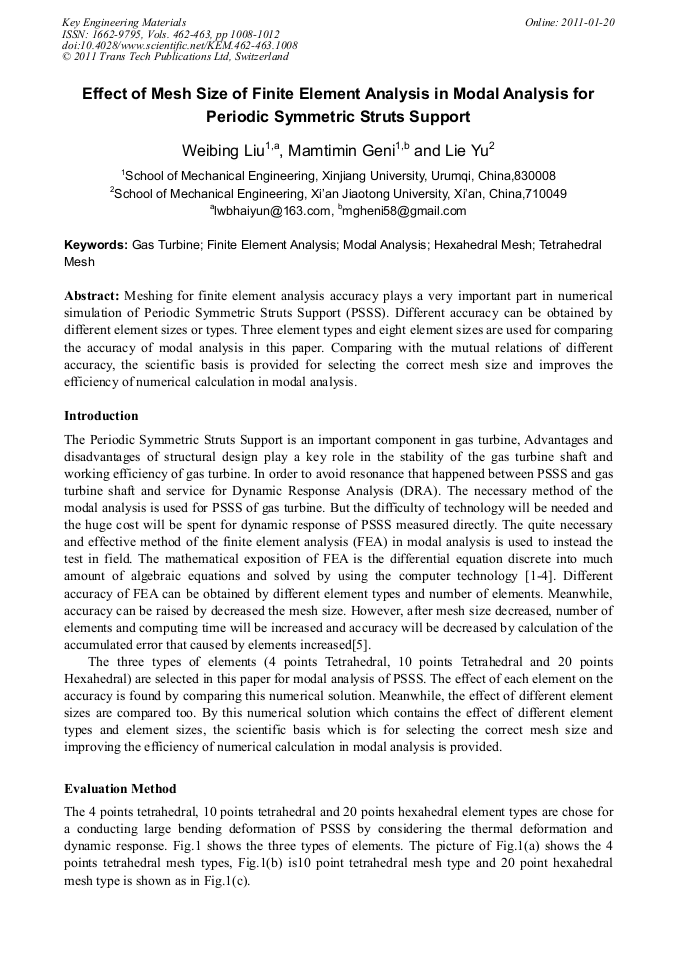

Effect of Mesh Size of Finite Element Analysis in Modal Analysis for Periodic Symmetric Struts Support

Abstract:

Meshing for finite element analysis accuracy plays a very important part in numerical simulation of Periodic Symmetric Struts Support (PSSS). Different accuracy can be obtained by different element sizes or types. Three element types and eight element sizes are used for comparing the accuracy of modal analysis in this paper. Comparing with the mutual relations of different accuracy, the scientific basis is provided for selecting the correct mesh size and improves the efficiency of numerical calculation in modal analysis.

• Periodical: Key Engineering Materials (Volumes 462-463)
• Pages: 1008-1012
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.462-463.1008
• Online since: January 2011
• Authors: Wei Bing Liu, Mamtimin Gheni, Lie Yu
• Keywords: Finite Element Analysis (FEA), Gas Turbine, Hexahedral Mesh, Modal Analysis, Tetrahedral Mesh

References

[1] S.M. Beden, S. Abdullah, A.K. Ariffin, M.M. Rahman and N. A. Al-Asady: (Engineering Mathematics Group, 2008).

[2] A. Turon ,C.G. Davila , P.P. Camanho , J. Costa: Engineering Fracture Mechanics (2007).

[3] C.A. Felippa: Advanced finite element analysis. Department of Aerospace. Engineering Sciences, (2001).

[4] Y. Fukuizumi et. al, Journal of Engineering for Gas Turbines and Power, Vol. 127 (2005), p.369.

[5] Suhe Gao: Mesh density and Finite Element Analysis of Accuracy (Heavy Industry Science and Technology, 2006).
