Study on Joint Deflection of Existing Joint Plain Concrete Pavement upon Adoption of Hot Mixture Asphalt Overlay

Abstract:

When HMA (hot mixture asphalt) is used to remedy functional or structural deficiencies of existing JPCP (joint plain concrete pavement), reflection cracking is a major distress mode in HMA overlay. The basic mechanism of reflection cracking is the propagation of cracks through the overlay due to deflection difference in the joints vicinity of the existing pavements. In this paper the model of JPCP is created by three finite element method and the relationship between joint deflection difference and effects such as base modulus, elastic coefficient of spring elements is discussed. Based on the model of JPCP, the finite element model of asphalt overlay is created then and shear stress concentration phenomenon is found at the bottom of HMA where is just above the joint of JPCP. So, the rule of the shear stress at the bottom of HMA with deflection difference at the joint of JPCP is studied.

You might also be interested in these eBooks

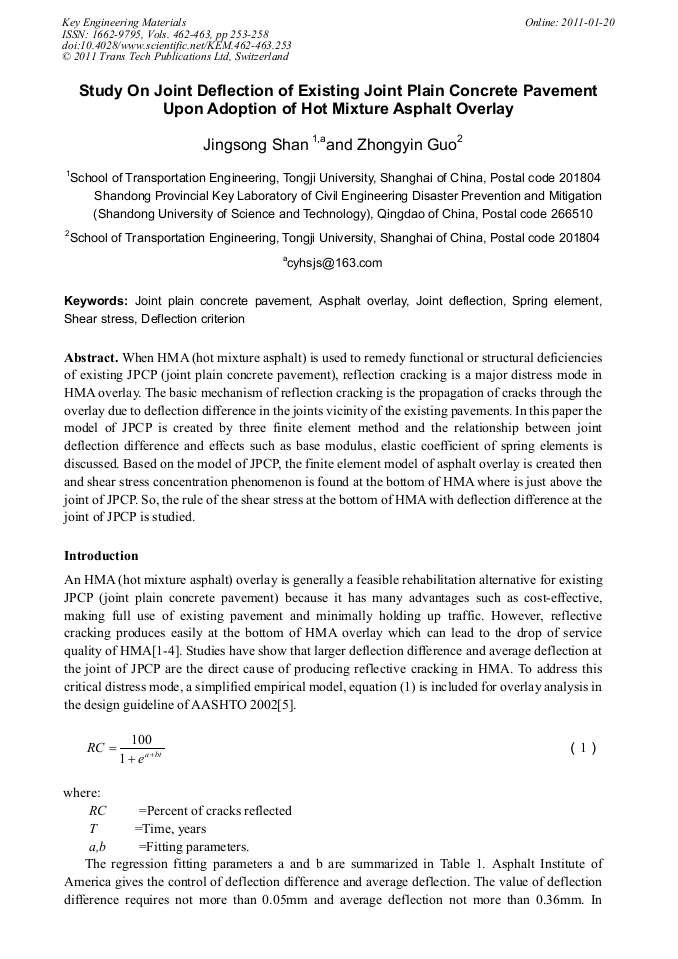

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 462-463)

Pages:

253-258

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.462-463.253

Citation:

Cite this paper

Online since:

January 2011

Authors:

Jing Song Shan, Zhong Yin Guo

Keywords:

Asphalt Overlay, Deflection Criterion, Joint Deflection, Joint Plain Concrete Pavement, Shear Stress, Spring Element

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Z. Zhou: A Research on the Fatigue Damage Cracking in Asphalt Pavement under Traffic Load. ChangSha: Central South University (2003).

Google Scholar

[2] B. Yang: Research on Structure of Asphalt Overlay on Old Concrete Pavement. Xi An: Chang'an University (2005).

Google Scholar

[3] F. Zhou and L. Sun: China Civil Engineering Journal, Vol. 34, (2001) p.45.

Google Scholar

[4] X. Deng: The subbase and pavement construction. China Communications Press (2005).

Google Scholar

[5] NCHRP. Guide for Mechanistic-Empirical Design of New and Rehabilitated Pavement Structures, Project 1-37A. Washington DC: National Cooperative Highway Research Program, Transportation Research Board, National Research Council (2004).

DOI: 10.17226/23219

Google Scholar

[6] Ministry of Transport of the People's Republic of China. Specifications for Design of Highway Asphalt Pavement. China Communications Press (2006).

Google Scholar

[7] C. Zhang: Structural application and example of ANSYS 11. 0. China Machine Press (2008).

Google Scholar
