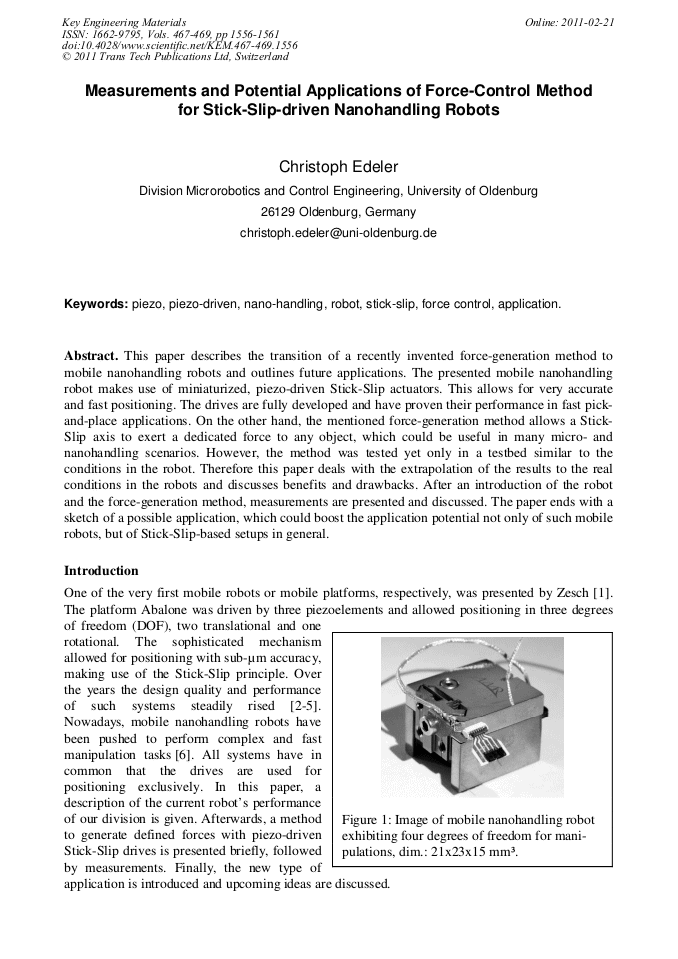

Measurements and Potential Applications of Force-Control Method for Stick-Slip-Driven Nanohandling Robots

Abstract:

This paper describes the transition of a recently invented force-generation method to mobile nanohandling robots and outlines future applications. The presented mobile nanohandling robot makes use of miniaturized, piezo-driven Stick-Slip actuators. This allows for very accurate and fast positioning. The drives are fully developed and have proven their performance in fast pickand- place applications. On the other hand, the mentioned force-generation method allows a Stick- Slip axis to exert a dedicated force to any object, which could be useful in many micro- and nanohandling scenarios. However, the method was tested yet only in a testbed similar to the conditions in the robot. Therefore this paper deals with the extrapolation of the results to the real conditions in the robots and discusses benefits and drawbacks. After an introduction of the robot and the force-generation method, measurements are presented and discussed. The paper ends with a sketch of a possible application, which could boost the application potential not only of such mobile robots, but of Stick-Slip-based setups in general.

• Periodical: Key Engineering Materials (Volumes 467-469)
• Pages: 1556-1561
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.467-469.1556
• Online since: February 2011
• Authors: Christoph Edeler
• Keywords: Application, Force Control, Nano-Handling, Piezo, Piezo-Driven, Robot, Stick-Slip

References

[1] Wolfgang Zesch, Roland Buechi, Alain Codourey, and Roland Y. Siegwart. Inertial drives for micro- and nanorobots: Two novel mechanisms. Proc. SPIE, 2593(80), (1995).

DOI: 10.1117/12.228638

[2] S. Martel, A. Saraswat, and I. Hunter. Fundamentals of piezo-ceramic actuation for micrometer and sub-micrometer motions for the nanowalker robot. In SPIE2000, (2000).

DOI: 10.1117/12.403688

[3] W. Driesen, T. Varidel, S. Regnier, and J. -M. Breguet. Micro manipulation by adhesion with two collaborating mobile micro robots. Journal of Micromechanics and Microengineering, 15: 259–267, (2005).

DOI: 10.1088/0960-1317/15/10/s02

[4] J. -M. Breguet, R. Perez, A. Bergander, C. Schmitt, R. Clavel, and H. Bleuler. Piezoactuators for motion control from centimeter to nanometer. International Conference on Intelligent Robots and Systems, (2000).

DOI: 10.1109/iros.2000.894652

[5] F. Schmoeckel and S. Fatikow. Smart flexible microrobots for SEM applications. Journal of Intelligent Material Systems and Structures, (2000).

DOI: 10.1106/cfw1-96et-3qvn-yv86

[6] C. Edeler, D. Jasper, C. Diederichs, and S. Fatikow. Fast and accurate pick-and-place automation with nanorobots. ACTUATOR 2010, Bremen, Germany, (2010).

[7] C. Edeler. Simulation and experimental evaluation of laser-structured actuators for a mobile microrobot. International Conference on Robotics and Automation, (2008).

DOI: 10.1109/robot.2008.4543685

[8] D. Jasper and C. Edeler. Characterization, optimization and control of a mobile platform. International Workshop on Microfactories, IWMF, (2008).

[9] C. Edeler. Dynamic-mechanical analysis of piezoactuators for mobile nanorobots. ACTUATOR 2010, Bremen, Germany, (2010).

[10] J. -M. Breguet. Stick and Slip actuators. PhD thesis, Ecole Polytechnique Federale De Lausanne, (EPFL), Switzerland, (1998).

DOI: 10.3940/rina.innovsail.2010.14

[11] C. Edeler, I. Meyer, and S. Fatikow. Simulation and measurements of stick-slip-microdrives for nanorobots. European Conference on Mechanism Science, EUCOMES, (2010).

DOI: 10.1007/978-90-481-9689-0_13

[12] C. Edeler and S. Fatikow. Open loop force control of piezo-actuated stick-slip drives. International Journal on Intelligent Mechanisms and Robots, in press.

DOI: 10.4018/978-1-4666-3634-7.ch001
