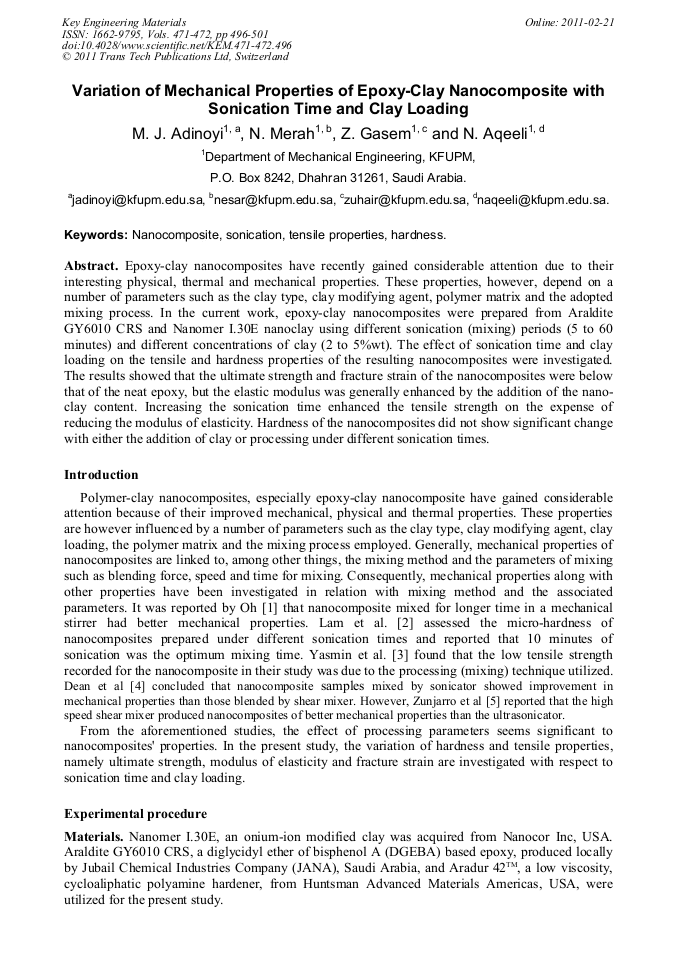

Variation of Mechanical Properties of Epoxy-Clay Nanocomposite with Sonication Time and Clay Loading

Abstract:

Epoxy-clay nanocomposites have recently gained considerable attention due to their interesting physical, thermal and mechanical properties. These properties, however, depend on a number of parameters such as the clay type, clay modifying agent, polymer matrix and the adopted mixing process. In the current work, epoxy-clay nanocomposites were prepared from Araldite GY6010 CRS and Nanomer I.30E nanoclay using different sonication (mixing) periods (5 to 60 minutes) and different concentrations of clay (2 to 5%wt). The effect of sonication time and clay loading on the tensile and hardness properties of the resulting nanocomposites were investigated. The results showed that the ultimate strength and fracture strain of the nanocomposites were below that of the neat epoxy, but the elastic modulus was generally enhanced by the addition of the nano-clay content. Increasing the sonication time enhanced the tensile strength on the expense of reducing the modulus of elasticity. Hardness of the nanocomposites did not show significant change with either the addition of clay or processing under different sonication times.

• Periodical: Key Engineering Materials (Volumes 471-472)
• Pages: 496-501
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.471-472.496
• Online since: February 2011
• Authors: M.J. Adinoyi, Necar Merah, Zuhair M. Gasem, N. Al-Aqeeli
• Keywords: Hardness, Nanocomposite, Sonication, Tensile Properties

References

[1] T.K. Oh: Effect of Shear Force on Microstructure and Mechanical Property of Epxy/Clay.

[2] Nanocomposite, Master thesis, University of Florida (2004).

[3] C.K. Lam, K.T. Lau, H.Y. Cheung and H.Y. Ling: Materials Letters 59 (2005), pp.1369-1372.

[4] Yasmin, J.L. Abot and I. M. Daniel: Scripta Materialia Vol. 49 (2003), pp.81-86.

[5] K. Dean, J. Krstina, W. Tian and R. J. Varley: Macromolecular Material and Engineering. Vol.

[6] 292 (2007), p.415–427.

[7] S.C. Zunjarrao, R. Sriraman and R.P. Singh: Journal of Mater. Sci. Vol. 41 (200), p.2219.

[8] 2228.

[9] Annual Book of ASTM Standards, Designation: Plastic, D638M-93, vol. 8 (1995).

[10] F. Hassan, J. Chen and M. Hojjati: Mater. Sci. and Eng. Part A, 445–446 (2007), p.467–476.

[11] B. Qi., Q.X. Zhang, M. Bannister and Y. -W Mai: Composite Structures, Vol. 75 (2006), p.

[12] 514-519.

[13] K. Wang, L. Chen, J. Wu, M. L. Toh, C. He and A. F. Yee: Macromolecules, Vol. 38 (2005), p.

[14] 788-800.

[15] M. J. Adinoyi, N. Merah, Z. Gasem and N. Aqeeli: Submitted to 8th International Conference.

[16] on Composite Science and Technology (2010).
