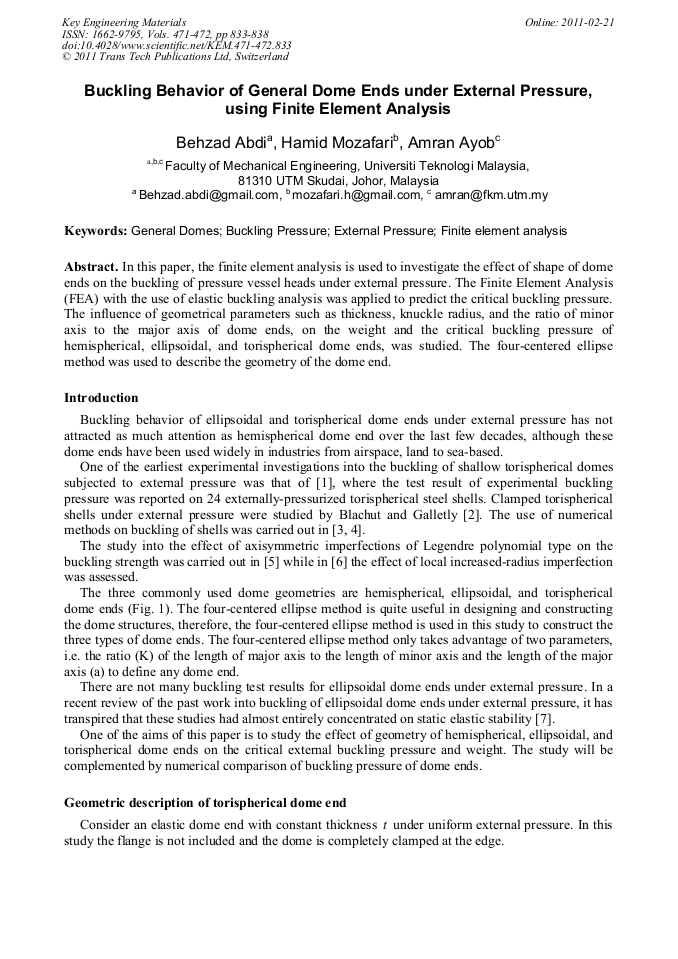

Buckling Behavior of General Dome Ends under External Pressure, Using Finite Element Analysis

Abstract:

In this paper, the finite element analysis is used to investigate the effect of shape of dome ends on the buckling of pressure vessel heads under external pressure. The Finite Element Analysis (FEA) with the use of elastic buckling analysis was applied to predict the critical buckling pressure. The influence of geometrical parameters such as thickness, knuckle radius, and the ratio of minor axis to the major axis of dome ends, on the weight and the critical buckling pressure of hemispherical, ellipsoidal, and torispherical dome ends, was studied. The four-centered ellipse method was used to describe the geometry of the dome end.

• Periodical: Key Engineering Materials (Volumes 471-472)
• Pages: 833-838
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.471-472.833
• Online since: February 2011
• Authors: Behzad Abdi, Hamid Mozafari, Ayob Amran
• Keywords: Buckling Pressure, External Pressure, Finite Element Analysis (FEA), General Domes

References

[1] G. D. Galletly, J. Kruzelecki, D. G. Moffat, and B. Warrington, Buckling of shallow torispherical domes subjected to external pressure – a comparison of experiment, theory, and design codes. The Journal of Strain Analysis for Engineering Design, Vol 22, No 3, pp.163-175, (1987).

DOI: 10.1243/03093247v223163

[2] J. Blachut and G. D. Galletly, Clamped torispherical shells under external pressure. The Journal of Strain Analysis for Engineering Design, Vol 23, No 1, pp.9-24, (1988).

DOI: 10.1243/03093247v231009

[3] D. Bushnell, Computerized buckling analysis of shells in mechanics of elastic stability (Edited by H. H. E. Leipholtz and A. E. Oravus). Martinus Nijhoff, Netherlands (1985).

[4] D. Bushnell, BOSOR 5-Program for buckling of elastic-plastic complex shells of revolution including large deflections and creep. Comput. Struct. 6, 221-239, (1976).

DOI: 10.1016/0045-7949(76)90034-1

[5] G. D. Galletly, J. Blachut and J. Kruielecki, Plastic buckling of externally pressurised dome ends'. Advances in Marine Structures (Edited by C. S. Smith and J. D. Clarke), pp.238-261 (1986).

[6] J. Blachut and G. 'D. Galletly, Externally pressurized hemispheres and shallow torispheres. Proc. ECCS Co11 on Stability of Plate and Shell Structures, Ghent (Edited by P. Dubas and D. Vandepitte), pp.361-366, (1987).

[7] G.D. Galletly, J. Blachut, Stability of complete circular and non-circular toroidal shells. Proc IMechE: C, 209: 245±55, (1995).

DOI: 10.1243/pime_proc_1995_209_151_02

[8] M. F. Yang, C. C. Liang, and C. H. Chen, a rotational shape design of externally pressurized torispherical dome ends under buckling constraints, Computers & Structures, vol. 43, No. 5, pp.839-851, (1992).

DOI: 10.1016/0045-7949(92)90298-e
