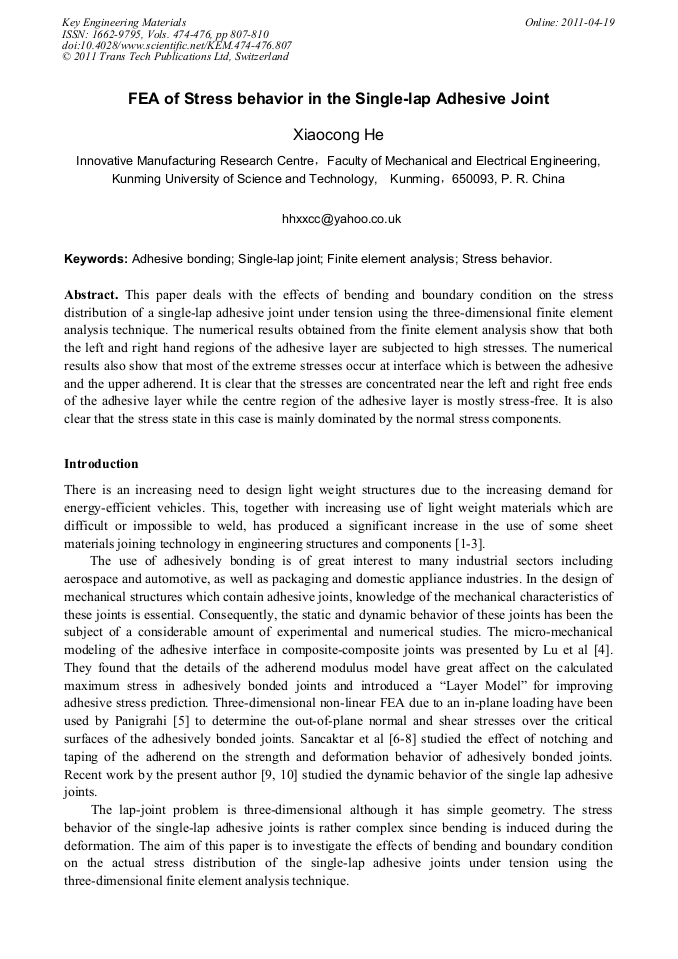

FEA of Stress behavior in the Single-Lap Adhesive Joint

Abstract:

This paper deals with the effects of bending and boundary condition on the stress distribution of a single-lap adhesive joint under tension using the three-dimensional finite element analysis technique. The numerical results obtained from the finite element analysis show that both the left and right hand regions of the adhesive layer are subjected to high stresses. The numerical results also show that most of the extreme stresses occur at interface which is between the adhesive and the upper adherend. It is clear that the stresses are concentrated near the left and right free ends of the adhesive layer while the centre region of the adhesive layer is mostly stress-free. It is also clear that the stress state in this case is mainly dominated by the normal stress components.

• Periodical: Key Engineering Materials (Volumes 474-476)
• Pages: 807-810
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.474-476.807
• Online since: April 2011
• Authors: Xiao Cong He
• Keywords: Adhesive Bonding, Finite Element Analysis (FEA), Single-Lap Joint, Stress Behavior

References

[1] X. He, I. Pearson, K. Young: J Mater Process Technol, Vol. 199, (2008), p.27.

[2] X. He: Int J Adv Manuf Technol, Vol. 48, (2010), p.607.

[3] X. He: Adv Mater Res, Vols. 129-131, (2010), p.411.

[4] M. Lu, C.H. Jenkins and R.M. Winter: Struct Dyna Mater Conf 2003, Vol. 5, (2003), P. 3291.

[5] S.K. Panigrahi: Appl Compos Mater, Vol. 16, (2009), p.211.

[6] E. Sancaktar and S.R. Simmons: J Adhes Sci Technol, Vol. 14, (2000), p.1363.

[7] P. Nirantar and E. Sancaktar: Proc. ASME Des Eng Divis DE, Vol. 115, (2002), p.575.

[8] E. Sancaktar and P. Nirantar: J Adhes Sci Technol, Vol. 17, (2003), p.655.

[9] X. He: Key Eng Mater, Vols. 413-414, (2009), p.733.

[10] X. He: Adv Mater Res, Vols. 97-101, (2010), p.3920.
