Numerical Simulation of Electromagnetic Actuator for Impedance Pumping

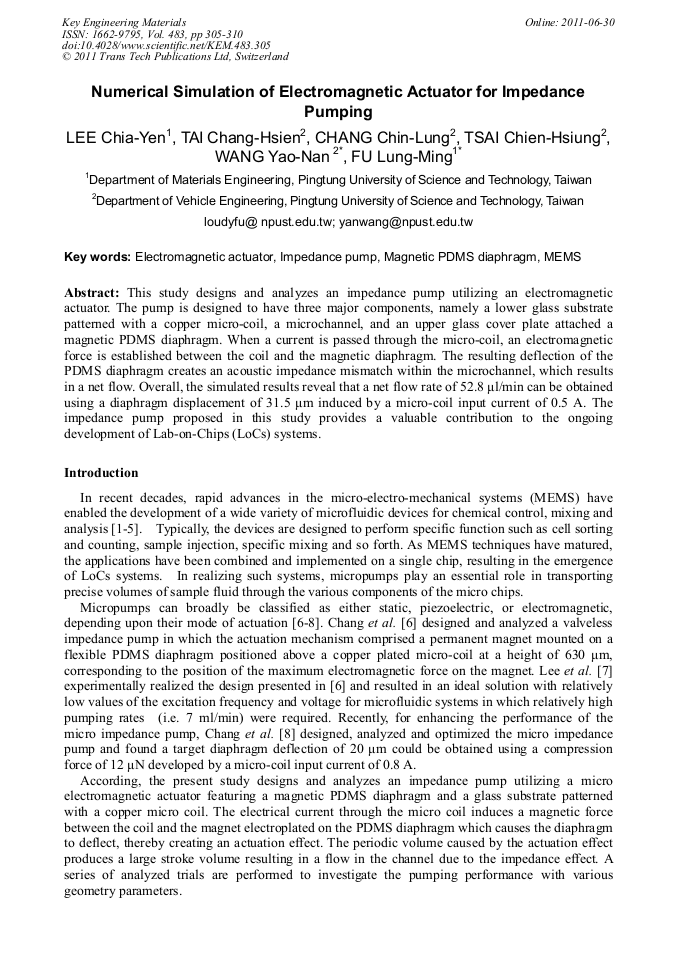

Article Preview

Abstract:

This study designs and analyzes an impedance pump utilizing an electromagnetic actuator. The pump is designed to have three major components, namely a lower glass substrate patterned with a copper micro-coil, a microchannel, and an upper glass cover plate attached a magnetic PDMS diaphragm. When a current is passed through the micro-coil, an electromagnetic force is established between the coil and the magnetic diaphragm. The resulting deflection of the PDMS diaphragm creates an acoustic impedance mismatch within the microchannel, which results in a net flow. Overall, the simulated results reveal that a net flow rate of 52.8 μl/min can be obtained using a diaphragm displacement of 31.5 μm induced by a micro-coil input current of 0.5 A. The impedance pump proposed in this study provides a valuable contribution to the ongoing development of Lab-on-Chips (LoCs) systems.

You might also be interested in these eBooks
MEMS/NEMS Nano Technology View Preview

Info:

Periodical:

Key Engineering Materials (Volume 483)

Pages:

305-310

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.483.305

Citation:

Cite this paper

Online since:

June 2011

Authors:

Chia Yen Lee, Chang Hsien Tai, Chin Lung Chang, Chien Hsiung Tsai, Yao Nan Wang, Lung Ming Fu

Keywords:

Electromagnetic Actuator, Impedance Pump, Magnetic PDMS Diaphragm, Micro-Electromechanical System (MEMS)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] L.M. Fu and C.H. Lin: Biomed. Microdevices Vol. 9 (2007), p.277.

Google Scholar

[2] L.M. Fu, C.H. Tsai and C.H. Lin: Electrophoresis Vol. 29 (2008), p.1874.

Google Scholar

[3] L.M. Fu, R.J. Yang, C.H. Lin, Y.J. Pan and G.B. Lee: Anal. Chim. Acta Vol. 507 (2004, ) p.163.

Google Scholar

[4] C.H. Lin, C.Y. Lee, C.H. Tsai and L.M. Fu: Microfluid. Nanofluid. Vol. 7 (2009), p.499.

Google Scholar

[5] T.F. Hong, W.J. Ju, J.C. Leong, C.H. Tai, C.H. Tsai and L.M. Fu: Microfluid. Nanofluid. Vol. 9 (2010), p.1125.

Google Scholar

[6] H.T. Chang, C.Y. Lee, C.Y. Wen and B.S. Hong: Microelectron. J. Vol. 38 (2007), p.791.

Google Scholar

[7] C.Y. Lee, H.T. Chang and C.Y. Wen: J. Micromech. Microeng. Vol. 18 (2008), 035044.

Google Scholar

[8] H.T. Chang, C.Y. Wen and C.Y. Lee: J. Micromech. Microeng. Vol. 19 (2009), 085026.

Google Scholar
