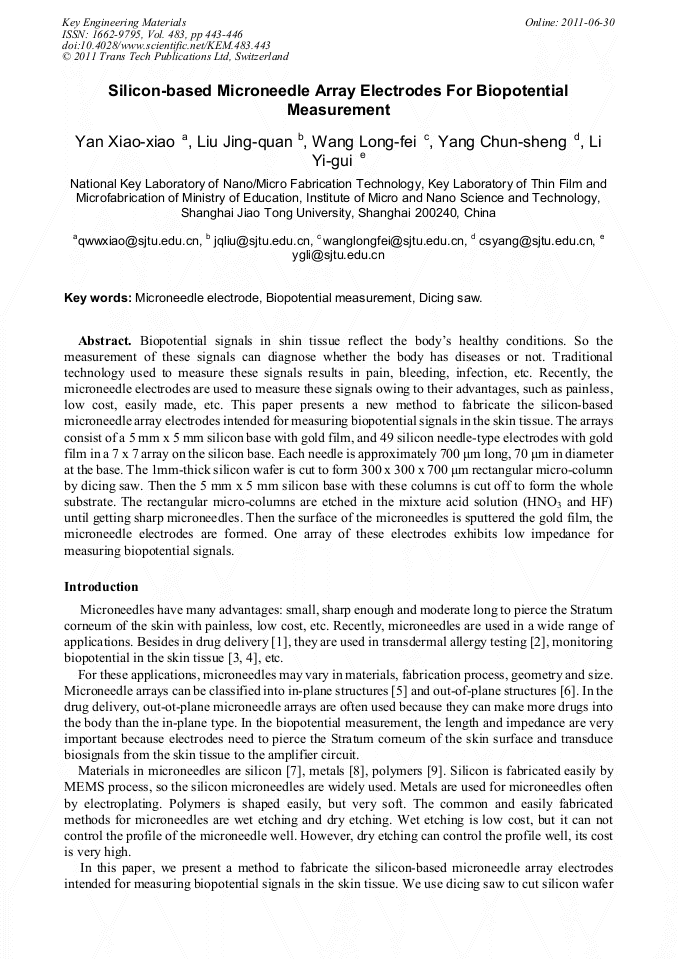

Silicon-Based Microneedle Array Electrodes for Biopotential Measurement

Abstract:

Biopotential signals in shin tissue reflect the body’s healthy conditions. So the measurement of these signals can diagnose whether the body has diseases or not. Traditional technology used to measure these signals results in pain, bleeding, infection, etc. Recently, the microneedle electrodes are used to measure these signals owing to their advantages, such as painless, low cost, easily made, etc. This paper presents a new method to fabricate the silicon-based microneedle array electrodes intended for measuring biopotential signals in the skin tissue. The arrays consist of a 5 mm x 5 mm silicon base with gold film, and 49 silicon needle-type electrodes with gold film in a 7 x 7 array on the silicon base. Each needle is approximately 700 μm long, 70 μm in diameter at the base. The 1mm-thick silicon wafer is cut to form 300 x 300 x 700 μm rectangular micro-column by dicing saw. Then the 5 x 5 mm silicon base with these columns is cut off to form the whole substrate. The rectangular micro-columns are etched in the mixture acid solution (HNO₃ and HF) until getting sharp microneedles. Then the surface of the microneedles is sputtered the gold film, the microneedle electrodes are formed. One array of these electrodes exhibits low impedance for measuring biopotential signals.

• Periodical: Key Engineering Materials (Volume 483)
• Pages: 443-446
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.483.443
• Online since: June 2011
• Authors: Xiao Xiao Yan, Jing Quan Liu, Long Fei Wang, Chun Sheng Yang, Yi Gui Li
• Keywords: Biopotential Measurement, Dicing Saw, Microneedle Electrode

References

[1] B. Stoeber, D. Liepmann: submitted to Journal of microelectromechanical systems (2005).

[2] A. Trautmann, R Denfeld, F Heuck, P. Ruther and O. Paul: submitted to MEMS 2006 Istanbul, 19th IEEE MEMS Conference on digital identifier.

[3] P. S. Motta, J. W. Judy: submitted to IEEE Transactions on biomedical engineering (2005).

[4] C. T. Lin, L. W. Ko, J. C. Chiou, J. R. Duan, etal: submitted to Proceedings of the IEEE, (2008).

[5] S. J. Paik, S. Byun, J. M. Lim, S. Chung, etal: submitted to Sensors and Actuators (2004).

[6] P. Griss, G. Stemme: submitted to Journal of microelectromechanical systems (2003).

[7] N. Wilke, A. Mulcahy, S. R. Ye, etal: submitted to Microelectronics Journal (2005).

[8] S. P. Davis, W. Martanto, M. G. Allen, etal: submitted to IEEE Transactions on Biomedical Engineering (2005).

[9] S. C. Kuo, Y. Chou: submitted to Tamkang Journal of Science and Engineering (2004).

[10] P. K. Campbell, K. E. Jones etal: submitted to IEEE Transactions on biomedical engineering (2002).

[11] R. Bhandari, S. Negi, R. A. Normann, etal: submitted to Electronic Components and Technology Conference, IEEE (2007).

[12] H. Robbins, B. Schwartz: submitted to Journal of the electrochemical society (1960).
