Wire-EDM of ZTA-TiC Composites with Variable Content of Electrically Conductive Phase

Abstract:

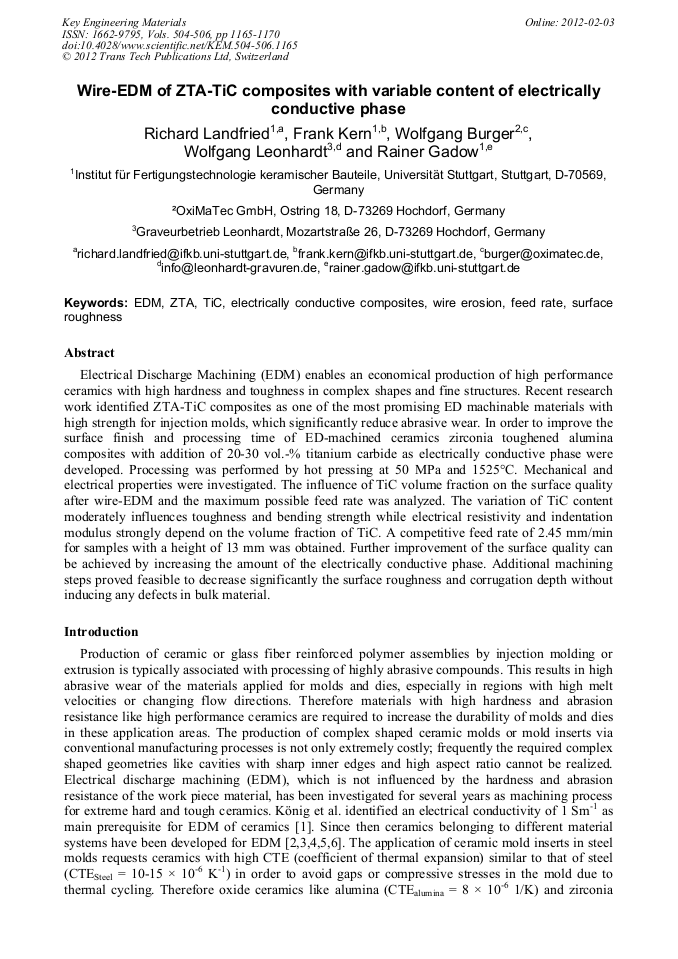

Electrical Discharge Machining (EDM) enables an economical production of high performance ceramics with high hardness and toughness in complex shapes and fine structures. Recent research work identified ZTA-TiC composites as one of the most promising ED machinable materials with high strength for injection molds, which significantly reduce abrasive wear. In order to improve the surface finish and processing time of ED-machined ceramics zirconia toughened alumina composites with addition of 20-30 vol.-% titanium carbide as electrically conductive phase were developed. Processing was performed by hot pressing at 50 MPa and 1525°C. Mechanical and electrical properties were investigated. The influence of TiC volume fraction on the surface quality after wire-EDM and the maximum possible sample feed rate was analyzed. The variation of TiC content moderately influences toughness and bending strength while electrical resistivity and indentation modulus strongly depend on the volume fraction of TiC. A competitive feed rate of 2.45 mm/min for samples with a height of 13 mm was obtained. Further improvement of the surface quality can be achieved by increasing the amount of the electrically conductive phase. Additional machining steps proved feasible to decrease significantly the surface roughness and corrugation depth without inducing any defects in bulk material.

• Periodical: Key Engineering Materials (Volumes 504-506)
• Pages: 1165-1170
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.504-506.1165
• Online since: February 2012
• Authors: Richard Landfried, Frank Kern, Wolfgang Burger, Wolfgang Leonhardt, Rainer Gadow
• Keywords: EDM, Electrically Conductive Composites, Sample Feed Rate, Surface Roughness (SR), TiC, Wire Erosion, ZTA

References

[1] W. König, D.F. Dauw, G. Levy and U. Panten, "EDM - future steps towards the machining of ceramics", CIRP Annals - Manufacturing Technology, 37 [2], 623–631 (1988)

DOI: 10.1016/s0007-8506(07)60759-8

[2] B. Lauwers, J.P. Kruth, W. Liu, W. Eeraerts, B. Schacht and P. Bleys, "Investigation of material removal mechanisms in EDM of composite ceramic materials", Journal of Material Processing Technology, 149, 347-352 (2004)

DOI: 10.1016/j.jmatprotec.2004.02.013

[3] K. Liu, "Influence of the pulse shape on the EDM performance of Si3N4-TiN ceramic composite", CIRP Annals – Manufacturing Technology, 58, 217-220, (2009)

DOI: 10.1016/j.cirp.2009.03.002

[4] K. Bonny, P. De Baets, J. Vleugels, A. Salehi, O. Van der Biest, B. Lauwers and W. Liuc, "Influence of secondary electro-conductive phases on the electrical discharge machinability and frictional behavior of ZrO2-based ceramic composites", Journal of Materials Processing Technology, 208, 423-430, (2008)

DOI: 10.1016/j.jmatprotec.2008.01.020

[5] K. Bonny, P. De Baets, J. Vleugels, O. van der Biest, A. Salehi, W. Liu and B. Lauwers, "Reciprocating sliding friction and wear behavior of electrical discharge machined zirconia-based composites against WC-Co cemented carbide", International Journal of Refractory Metals & Hard Materials, 27, 449-457, (2009)

DOI: 10.1016/j.ijrmhm.2008.07.004

[6] K.M. Patel, P. M. Pandey and P.V. Rao, "Surface integrity and material removal mechanisms associated with EDM of Al2O3 ceramic composite", International Journal of Refractory Metals & Hard Materials, 27 , 892-899, (2009)

DOI: 10.1016/j.ijrmhm.2009.05.003

[7] C.-C. Liu, "Microstructure and tool electrode erosion in EDMed of TiN/Si3N4 composites", Materials Science and Engineering, A363, 221-227, (2003)

DOI: 10.1016/s0921-5093(03)00630-0

[8] F.F. Lange, "Transformation toughening – Part 4 Fabrication, fracture toughness and strength of Al2O3-ZrO2 composites", Journal of Materials Science, 17,247-254, (1982)

DOI: 10.1007/bf00809060

[9] W. Burger and H. G. Richter, "High Strength and Toughness Alumina Matrix Composites by Transformation Toughening and 'In situ' Platelet Reinforcement (ZPTA) – The New Generation of Bioceramics", Key engineering Materials, Vols. 192-195, 545-548, (2001)

DOI: 10.4028/www.scientific.net/kem.192-195.545

[10] B. Basu, J. Vfleugels and O. Van der Biest, "Toughness tailoring of yttria-doped zirconia ceramics", Materials Science and Endineering, A380, 215-221, (2004)

DOI: 10.1016/j.msea.2004.03.065

[11] K. Niihara, "A fracture mechanics analysis of indentation-induced Palmqvist crack in ceramics", Journal of Materials Science Letters, Vol. 2, 221-223, (1983)

DOI: 10.1007/bf00725625

[12] G.R. Anstis, P. Chantikul, B.R. Lawn and D.B. Marshall, "A Critical Evaluation of Indentation Techniques for Measuring Fracture Toughness: I, Direct Crack Measurements", Journal of American Ceramic Society, Vol. 64, No. 9, (1981)

DOI: 10.1111/j.1151-2916.1981.tb10320.x

[13] P. Chantikul, G.R. Anstis, B.R. Lawn and D.B. Marshall, "A Critical Evaluation of Indentation Techniques for Measuring Fracture Toughness: II, Strength Method", Journal of American Ceramic Society, Vol. 64, No. 9, (1981)

DOI: 10.1111/j.1151-2916.1981.tb10321.x

[14] C.-C. Liu, and J.-L. Huang, "Effect of the electrical discharge machining on strength and reliability of TiN/Si3N4 composites", Ceramics International, 29, 679-687, (2003)

DOI: 10.1016/s0272-8842(02)00217-1
