Microwave Properties in BaO-TiO₂ System Added by ZrO₂ and WO₃

Abstract:

Both BaTi₄O₉ and Ba₂Ti₉O₂₀ have the best microwave properties among many compounds in BaO-TiO₂ system. The microwave performance of the ceramics in BaO-TiO₂ system, which were prepared by conventional solid state method, was investigated in this paper. The study indicates that the (Ti,Zr)/Ba ratio has a great effect on the dielectric properties of the ceramic due to different BaTi₄O₉/Ba₂Ti₉O₂₀ ratio. The pure BaTi₄O₉ ceramic exhibits the most outstanding microwave properties, with ε_r=35.55 and Q×f=43300GHz. On the contrary, the dielectric property of the pure Ba₂Ti₉O₂₀ ceramic was not good enough, which should be doped with some additive additions. WO₃ was incorporated into the system and the sintering temperature was adjusted to improve the microwave dielectric property. The Q×f was increased to 38000GHz by adding 1.35mol% WO₃ due to the formation of a little BaWO₄ phase. When sintered at a higher temperature (1380°C), the BaO-TiO₂ system ceramic has ε_r =37.04 and Q×f =44874GHz.

You might also be interested in these eBooks

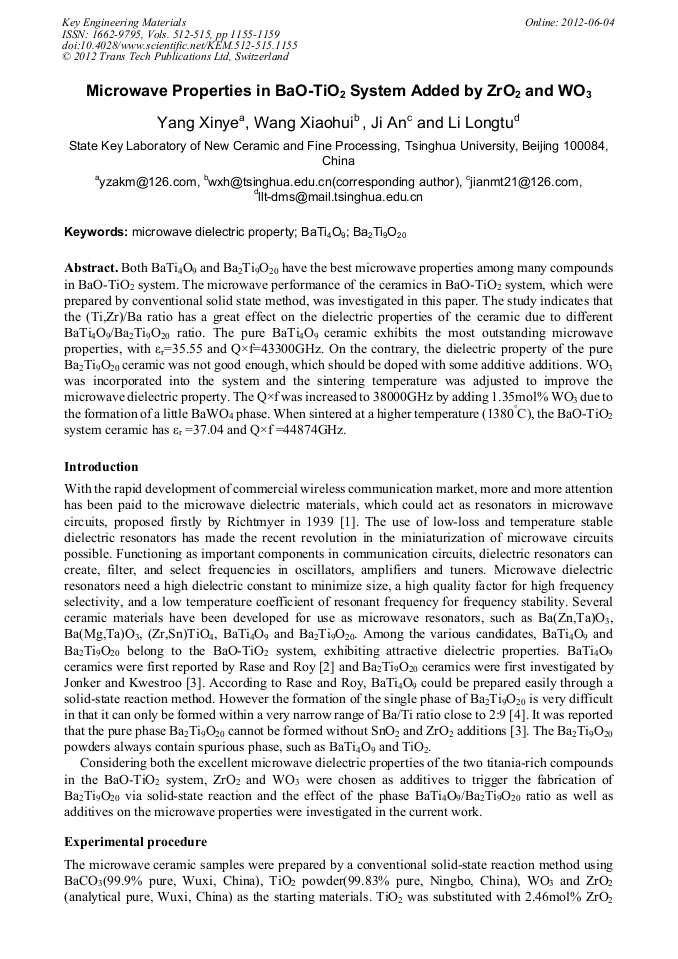

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 512-515)

Pages:

1155-1159

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.512-515.1155

Citation:

Cite this paper

Online since:

June 2012

Authors:

Xin Ye Yang, Xiao Hui Wang, An Ji, Long Tu Li

Keywords:

Ba₂Ti₉O₂₀, BaTi₄O₉, Microwave Dielectric Properties

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R.D. Richtmyer, Dielectric resonators, J. Appl. Phys. 10 (1939) 391-398

Google Scholar

[2] D.E. Rase, R. Roy, Phase equilibria in the system BaO-TiO2, J. Am. Ceram. Soc. 38 (1955) 102-113

Google Scholar

[3] G.H. Jonker, W. Kwestroo, The ternary systems BaO-TiO2-SnO2 and BaO-TiO2-ZrO2, J. Am. Ceram. SoC. 41 (1958) 390-394

DOI: 10.1111/j.1151-2916.1958.tb13509.x

Google Scholar

[4] H.M. O'Bryan, J. Thomson ,J.K. Plourde, A new BaO-TiO2 compound with temperature-stable high permittivity and low microwave Loss, J. Am. Ceram. Soc. 57 (1974) 450-453.

DOI: 10.1111/j.1151-2916.1974.tb11380.x

Google Scholar

[5] W.E. Courteny, Analysis and evaluation of a method of measuring the complex permittivity and permeability microwave insulators, IEEE Trans. Microwave Theor Tech. 18 (1970) 476-485

DOI: 10.1109/tmtt.1970.1127271

Google Scholar

[6] A. Baumgarte, R. Blachnik, Phase relations in the system titaniumdioxide-diniobium-zinc- hexoxide, Mater. Res. Bull. 27 (1992) 1287–1293

DOI: 10.1016/0025-5408(92)90093-f

Google Scholar

[7] T.Y. Wu, W.J. Wei, Transformation kinetics of Ba2Ti9O20 with ZrO2 additiv. J. Am.Ceram. Soc. 89 (2006) 3846-3849

Google Scholar
