Synthesis of Bismuth Titanate Thin Films by Liquid-Phase Self-Assembled Monolayers

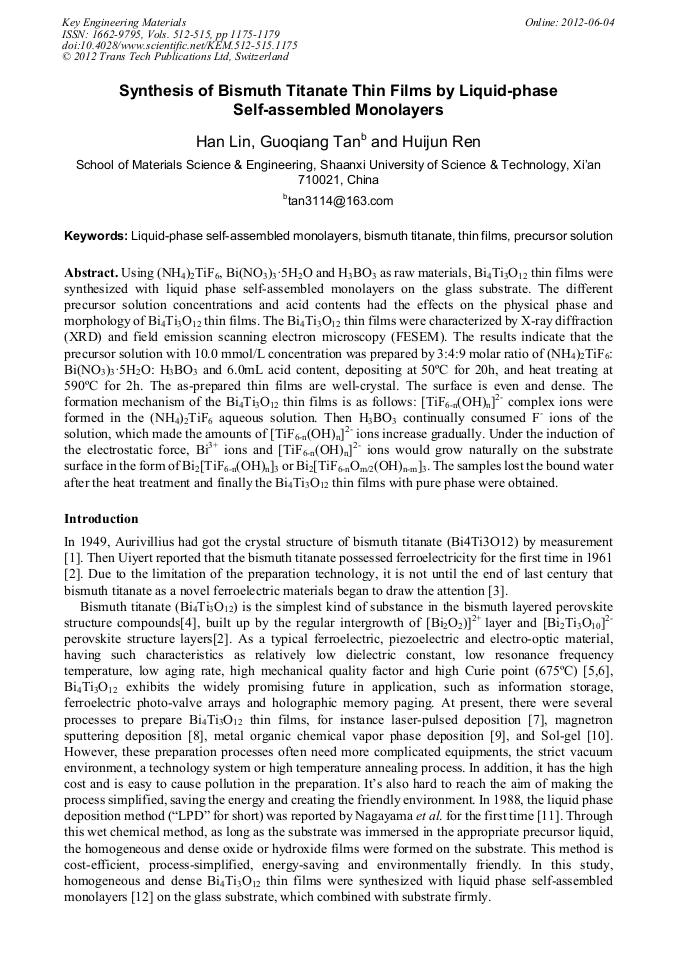

Article Preview

Abstract:

Using (NH4)2TiF6, Bi(NO3)3•5H2O and H3BO3 as raw materials, Bi4Ti3O12 thin films were synthesized with liquid phase self-assembled monolayers on the glass substrate. The different precursor solution concentrations and acid contents had the effects on the physical phase and morphology of Bi4Ti3O12 thin films. The Bi4Ti3O12 thin films were characterized by X-ray diffraction (XRD) and field emission scanning electron microscopy (FESEM). The results indicate that the precursor solution with 10.0 mmol/L concentration was prepared by 3:4:9 molar ratio of (NH4)2TiF6: Bi(NO3)3•5H2O: H3BO3 and 6.0 ml acid content, depositing at 50°C for 20h, and heat treating at 590°C for 2h. The as-prepared thin films are well-crystal. The surface is even and dense. The formation mechanism of the Bi4Ti3O12 thin films is as follows: [TiF6-n(OH)n]2- complex ions are formed in the (NH4)2TiF6 aqueous solution. Then H3BO3 continually consumed F- ions of the solution, which made the amounts of [TiF6-n(OH)n]2- ions increase gradually. Under the induction of the electrostatic force, Bi3+ ions and [TiF6-n(OH)n]2- ions would grow naturally on the substrate surface in the form of Bi2[TiF6-n(OH)n]3 or Bi2[TiF6-nOm/2(OH)n-m]3. The samples lost the bound water after the heat treatment and finally the Bi4Ti3O12 thin films with pure phase were obtained.

You might also be interested in these eBooks
High-Performance Ceramics VII View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 512-515)

Pages:

1175-1179

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.512-515.1175

Citation:

Cite this paper

Online since:

June 2012

Authors:

Han Lin, G.Q. Tan, Hui Jun Ren

Keywords:

Bismuth Titanate, Liquid-Phase Self-Assembled Monolayers, Precursor Solution, Thin Film

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] W. Wang, Y. Zhou, F. Ye, et al, Progress in the structure and properties of ferroelectric SrBi2Ta2O9 thin films, J. Mater. Eng. 8 (2001) 44-47.

Google Scholar

[2] K.H. Hellwege, Landolt-Börnstein-Group III Condensed Matter. Springer, Berllin, 1981.

Google Scholar

[3] R.M. Zhang, B. Yang, N. Wei, et al, Progress in studies on BIT-based ferroelectric thin films, J. Funct. Mater. 37 (2006), pp.351-357.

Google Scholar

[4] L. Shen, D.Q. Xiao, et al, A study of ferroelectric (Bi4-xLax)Ti3O12 ceramic properties, Piezoelectrics & Acoustooptics (in Chinese). 24 (2002) 199-201.

Google Scholar

[5] K. Shoji, Y. Uehara, K. Sakata, Grain-oriented ceramics in bismuth layer-structure compounds for capacitor material, Jpn. J. Appl. Phys. Part 1. 31 (1996) 5126-5128.

DOI: 10.1143/jjap.35.5126

Google Scholar

[6] C. Jovalekic, M. Pavlovoc, P. Osmokrovic, et al, X-ray photoelectron spectroscopy study of Bi4Ti3O12 ferroelectric ceramics, Appl. Phys. Lett. 72 (1998) 1051-1053.

DOI: 10.1063/1.120961

Google Scholar

[7] J. Wang, J.B. Neaton, H. Zheng, et al, Epitaxial BiFeO3 multiferroic thin film heterostructures, J. Science. 299 (2003) 1719-1722.

Google Scholar

[8] B.U.M. Rao, G. Srinivasan, Effects of high-temperature annealing on amorphous BiFeO3 with nonmagnetic substitutions, Appl. Phys Lett. 59 (1991) 2441-2443.

DOI: 10.1063/1.104867

Google Scholar

[9] P.C. Joshi, S.B. Krupanidhi, Structural and electrical studies on rapid thermally processed ferroelec- tric Bi4Ti3O12 thin films by metallo-oraganic solution deposition, J.Appl. Phys. 72 (1992) 5827-5833.

DOI: 10.1063/1.351938

Google Scholar

[10] F. Hou, M.R. Shen, W.W. Cao, Ferroelectric properties of neodymium-doped Bi4Ti3O12 thin films crystallized in different environments, Thin Solid Films. 471 (2005) 35-39.

DOI: 10.1016/j.tsf.2004.03.030

Google Scholar

[11] H. Nagayama, H. Honda, H. Kawahara, A new process for silica coating. Electrochem, Soc. 135 (1988) 2013-2016.

DOI: 10.1149/1.2096198

Google Scholar

[12] Y.F. Gao, Y. Masuda, K. Koumoto, Bio-inspired ceramic thin film processing: present status and future perspectives, Cryst. Growth. Des. 5 (2005) 1983-2017.

DOI: 10.1021/cg049624x

Google Scholar

[13] G.Q. Tan, H.Y. Bo, H.Y. Miao, et al, Self-assembled monolayers preparation and characterization of BiFeO3 thin films, J. Inorg. Mater. 25 (2010) 83-86.

Google Scholar

[14] Y.F. Gao, Y. Masuda, K. Koumoto, Micropatterning of TiO2 thin film in an aqueous peroxotitanate solution, Chem. Mater. 16 (2004) 1062-1067.

DOI: 10.1021/cm030543i

Google Scholar
