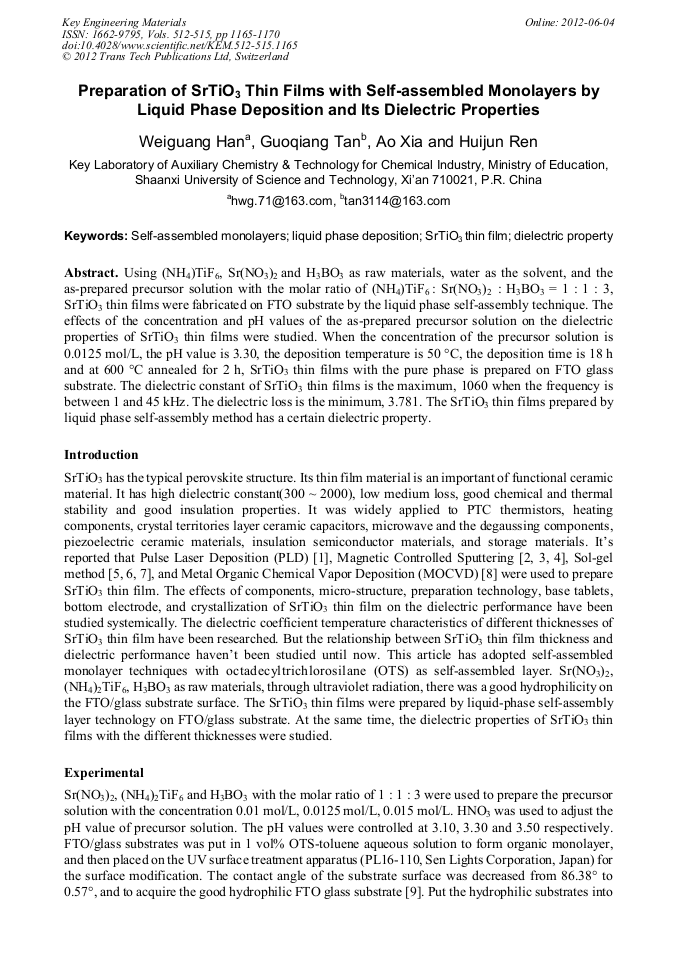

On Preparation of SrTiO₃ Thin Films with Self-Assembled Monolayers by Liquid Phase Deposition and its Dielectric Properties

Abstract:

In this paper, titanium ammonium fluoride ((NH₄)TiF₆), strontium nitrate (Sr(NO₃)₂) and boric acid (H₃BO₃) were used as raw materials, the precursor solution was prepared with molar ratio of AHFT/SN/BA=1/1/3. SrTiO₃ dielectric thin films were deposited with the self-assembled monolayers (SAMs) by the liquid-phase deposition on FTO substrate. X-ray diffraction (XRD), scanning election microscopy (SEM) and Agilent E4980A precision LCR Meter were used to characterize the SrTiO₃ films. The precursor solution concentration and the pH values of precursor solution had the effects on the dielectric properties of the as-prepared thin films. When the precursor concentration was 0.0125mol/L, the crystallization of as-prepared SrTiO₃ thin films was high and the grain sizes on the film surface were even and dense. When the frequency was 15~100KHz, the optimal dielectric constant was up to 1060, the minimal dielectric loss was 4.053. As pH=3.30, the frequency of the as-prepared SrTiO₃ thin films was 15~100KHz. The optimal dielectric constant was up to 1060, too. The minimal dielectric loss was 1.914. The optimal dielectric constants were 346.3 and 424.1 when the pH was 3.1 and below 3.5 respectively. The minimal dielectric losses were respectively 18.10 and 54.82.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1165-1170
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1165
• Online since: June 2012
• Authors: Wei Guang Han, G.Q. Tan, Ao Xia, Hui Jun Ren
• Keywords: Dielectric Property, Liquid Phase Deposition (LPD), Self-Assembled Monolayer (SAM), SrTiO₃ Thin Film

References

[1] S.A. Warnke, S.Y. Chen, D.L. Wyse, et al. Effect of rotation crops on hatch, viability, and development of Heterodera glycines, Nematology, 10 (2008) 869 - 882.

DOI: 10.1163/156854108786161391

[2] P.K. Baumann, D.Y. Kaufman, S.K. Streiffer, et al. MOCVD growth and characterization of (BaxSr1-x) Ti1+yO3+z thin films for high frequency devices, Mater. Res. Soc. Symp. Proc. 603 (2000) 169 - 174.

DOI: 10.1016/s0040-6090(02)00348-6

[3] N.S. Lee, D.S. Chung, I.T. Han, et al. Application of carbon nanotubes to field emission displays, Diamond Relat. Mater. 10 (2001) 265.

[4] W.H. Chen, C.L. Fu, L. Zhao, et al. Study on dielectric properties of barium strontium titanate thin films. J. Functional Mater. 596 (2000) 43 - 48.

[5] Z. Yang, C. Ke, L.L. Sun, et al. Growth and structure investigation of multiferroic superlattices: [(La0.8Sr0.2MnO3)4n/(BaTiO3)3n]m. Solid State Commun. 150 (2010) 1432.

[6] O.K. Tan, X.F. Chen, W.G. Zhu, (Ba, Sr)TiO3 Thin films by RF multitarget Co-sputtering and hydrogen gas sensing properties ferroelectrics. Ferroelectr. 225 (1999) 295 - 302.

DOI: 10.1080/00150199908015773

[7] S.U. Adikary, H.L.W. Chan, Ferroelectric and dielectric properties of Sol-gel derived BaxSr1-xTiO3 thin films, Thin Solid Films, 424 (2003) 70 - 74.

DOI: 10.1016/s0040-6090(02)00918-5

[8] B.H. Park, Y. Gim, Y. Fan, et al. High nonlinearity of Ba0.4Sr0.6TiO3 films heteroepitaxially grown in MgO subatrates, Appl. Phys. Lett. 77 (2000) 2587 - 2589.

DOI: 10.1063/1.1318233

[9] J. Liu, G.Q. Tan, H.Y. Miao, et al. OTS self-assembled monolayer induced directional growth of SrTiO3 functional ceramic films. J. Inorg. Chem. 25 (2009) 517 - 521.
