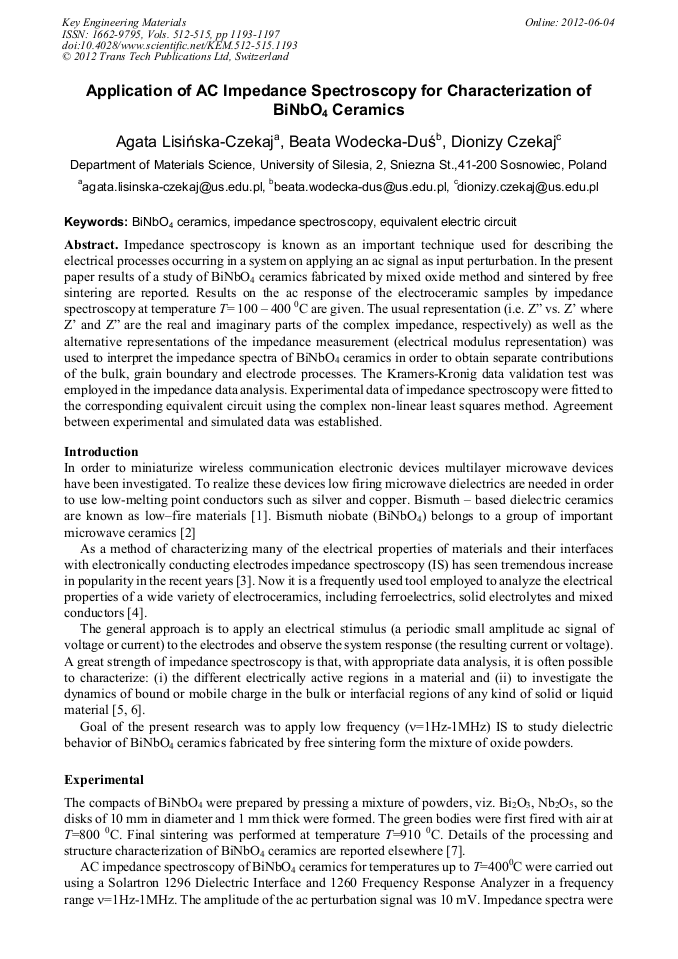

Application of AC Impedance Spectroscopy for Characterization of BiNbO₄ Ceramics

Abstract:

Impedance spectroscopy is known as an important technique used for describing the electrical processes occurring in a system on applying an ac signal as input perturbation. In the present paper results of a study of BiNbO₄ ceramics fabricated by mixed oxide method and sintered by free sintering are reported. Results on the ac response of the electroceramic samples by impedance spectroscopy at temperature T= 100 – 400 °C are given. The usual representation (i.e. Z” vs. Z’ where Z’ and Z” are the real and imaginary parts of the complex impedance, respectively) as well as the alternative representations of the impedance measurement (electrical modulus representation) was used to interpret the impedance spectra of BiNbO4 ceramics in order to obtain separate contributions of the bulk, grain boundary and electrode processes. The Kramers-Kronig data validation test was employed in the impedance data analysis. Experimental data of impedance spectroscopy were fitted to the corresponding equivalent circuit using the complex non-linear least squares method. Agreement between experimental and simulated data was established.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1193-1197
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1193
• Online since: June 2012
• Authors: Agata Lisińska-Czekaj, Beata Wodecka-Duś, Dionizy Czekaj
• Keywords: BiNbO₄ Ceramics, Equivalent Electric Circuit, Impedance Spectroscopy

References

[1] H. Kagata, T. Inoue, J. Kato and I. Kameyama: Low-fire bismuth-based dielectric ceramics for microwave use, Jpn. J. Appl. Phys. Vol. 31 (1992), p.3152

DOI: 10.1143/jjap.31.3152

[2] W.Wersing: Microwave ceramics for resonators and filters, Current Opinion in Solid State and Materials Science Vol. 1 (1996), p.715

DOI: 10.1016/s1359-0286(96)80056-8

[3] E. Barsoukov and J.R. Macdonald (Eds): Impedance Spectroscopy, Theory, Experiment, and Applications (Hoboken, New Jersey: John Wiley & Sons, 2005)

DOI: 10.1002/jrs.1558

[4] E.J. Abram, D.C. Sinclair and A.R. West: A strategy for analysis and modelling of impedance spectroscopy data of electroceramics: doped lanthanum gallate, Journal of Electroceramics Vol.10 (2003), p.165

DOI: 10.1023/b:jecr.0000011215.56084.87

[5] B.A. Boukamp: Electrochemical impedance spectroscopy in solid state ionics: recent advances, Solid State Ionics Vol.169 (2004), p.65

DOI: 10.1016/j.ssi.2003.07.002

[6] B.A. Boukamp: A linear Kronig-Kramers transform test for immitance data validation, J. Electrochem. Soc. Vol.142 (1995), p.1885

DOI: 10.1149/1.2044210

[7] A. Lisinska-Czekaj and D. Czekaj: Fabrication and study of BiNbO4, submitted to Key Engineering Materials, (2011)

[8] D. Czekaj, A. Lisinska-Czekaj, T. Orkisz, J. Orkisz, and G. Smalarz: Impedance spectroscopic studies of sol–gel derived barium strontium titanate thin films, J.Europ.Ceram. Soc. Vol.30 (2010), p.465

DOI: 10.1016/j.jeurceramsoc.2009.06.036

[9] B. Boukamp: A nonlinear least squares fit procedure for analysis of immittance data of electrochemical systems, Solid State Ionics Vol. 20 (1986), p.31

DOI: 10.1016/0167-2738(86)90031-7

[10] D.C. Sinclair and A.R. West: Impedance and modulus spectroscopy of semiconducting BaTiO/sub 3/ showing positive temperature coefficient of resistance, J.Appl.Phys Vol. 66 (1989), p.3850

DOI: 10.1063/1.344049

[11] A. Lasia: in Modern Aspects of Electrochemistry, vol. 32, edited by B. E. Conway, J. O'. M. Bockris and R. E. White, Kluver Academic/Plenum Publishers, New York, (1999), p.143–248.

[12] P.Zoltowski, Non-traditional approach to measurement models for analysis of impedance spectra, Solid State Ionics, 176 (2005) (1979)

DOI: 10.1016/j.ssi.2004.11.022
