Synthesis of Cubic Ni Nanoparticles by Electric Current Heating Method Using Ni Wire

Ikuhisa Tada; Tomoichiro Okamoto; Yuichiro  Kuroki; Takumi Hagizawa; Keiichiro Oh-Ishi; Masasuke Takata

doi:10.4028/www.scientific.net/KEM.512-515.132

Paper Titles

Preparation and Properties of Nano-Hydroxyapatite Derived from Sol-Gel Method for Cu²⁺ Polluted Water
p.115

Reverse Microemulsion Synthesis of Hydroxyapatite Nanoparticles and Adsorption Performance Study
p.119

Phase Behaviors of Talc Minerals in Carbothermal Reduction Process
p.123

Cryomilling and Characterization of Metal/Ceramic Powders
p.127

Synthesis of Cubic Ni Nanoparticles by Electric Current Heating Method Using Ni Wire
p.132

Effects of Different Reducing Agents and Protective Agents on the Preparation of Nano-Silver Powder
p.136

Synthesis and Characterization of Silver-Coated Copper Powder Layer
p.141

Synthesis and Characterization of Nanocrystalline PZT Powders by a Simple Sol-Gel Method
p.147

Effect of Dispersant Content on Nanograined BME MLCC Powder Prepared by Aqueous Chemical Coating Method
p.153

HomeKey Engineering MaterialsKey Engineering Materials Vols. 512-515Synthesis of Cubic Ni Nanoparticles by Electric...

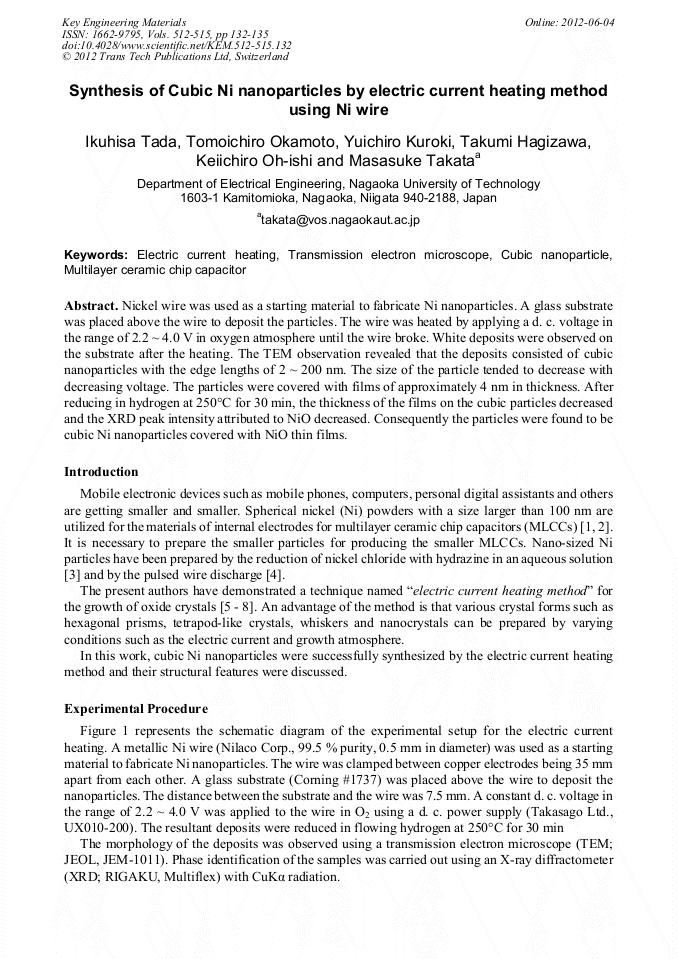

Synthesis of Cubic Ni Nanoparticles by Electric Current Heating Method Using Ni Wire

Abstract:

Nickel wire was used as a starting material to fabricate Ni nanoparticles. A glass substrate was placed above the wire to deposit the particles. The wire was heated by applying a d. c. voltage in the range of 2.2 ~ 4.0 V in oxygen atmosphere until the wire broke. White deposits were observed on the substrate after the heating. The TEM observation revealed that the deposits consisted of cubic nanoparticles with the edge lengths of 2 ~ 200 nm. The size of the particle tended to decrease with decreasing voltage. The particles were covered with films of approximately 4 nm in thickness. After reducing in hydrogen at 250°C for 30 min, the thickness of the films on the cubic particles decreased and the XRD peak intensity attributed to NiO decreased. Consequently the particles were found to be cubic Ni nanoparticles covered with NiO thin films.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 512-515)

Pages:

132-135

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.512-515.132

Citation:

Cite this paper

Online since:

June 2012

Authors:

Ikuhisa Tada, Tomoichiro Okamoto, Yuichiro Kuroki, Takumi Hagizawa, Keiichiro Oh-Ishi, Masasuke Takata

Keywords:

Cubic Nanoparticle, Electric Current Heating, Multilayer Ceramic Chip Capacitor, Transmission Electron Microscope

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D. H. Im, S. H. Hyun, S. Y. Park, B. Y. Lee, Y. H. Kim, Preparation of Ni paste using binary powder mixture for thick film electrodes, Mater. Chem. Phys. 96 (2006) 228-233.

DOI: 10.1016/j.matchemphys.2005.07.047

Google Scholar

[2] K. Sugimura, K Hirao, Effect of a BaTiO3 nanoparticle additive on the quality of thin-film Ni electrodes in MLCC, J. Ceram. Soc. Jpn. 117 (2009) 1039-1043.

DOI: 10.2109/jcersj2.117.1039

Google Scholar

[3] J. Gao, F. Guan, Y. Zhao, W. Yang, Y. Ma, X. Lu, J. Hou and J. Kang, Preparation of ultrafine nickel powder and its catalytic dehydrogenation activity, Mat. Chem. and Phys. 71 (2001) 215-219.

DOI: 10.1016/s0254-0584(01)00275-9

Google Scholar

[4] K. Suwa, T. Nakayama, T. Suzuki, H. Suematsu, W. Jiang and K. Niihara, Synthesis of Ni–Cu Nanoparticles by Pulsed Wire Discharge and their Compositional Distribution, Jpn. J. Appl. Phys. 47 (2008) 775-779.

DOI: 10.1143/jjap.47.775

Google Scholar

[5] D. Nezaki, S. Takano, Y. Kuroki, Y. Kurihara, T. Okamoto and M. Takata, Crystal growth on ZnO ceramics heated by direct current, Trans Mater. Res. Soc. Jpn. Vol. 25 (2000) 205-208.

Google Scholar

[6] K. Suzuki, T. Okamoto and M. Takata, Crystal Growth of β-Ga2O3 by Electric Current Heating, Ceram. International 30 (2004) 1679-1683.

DOI: 10.1016/j.ceramint.2003.12.154

Google Scholar

[7] K. Minato, T. Okamoto and M. Takata, Effect of Atmosphere on Zinc Oxide Crystal Growth by Electric Current Heating with Au Catalyst, Adv. Mater. Res. Vol. 11-12 (2006) 269-272.

DOI: 10.4028/www.scientific.net/amr.11-12.269

Google Scholar

[8] T. Hagizawa, T. Honma, Y. Kuroki, T. Okamoto and M. Takata, Photochromic Characteristics of Tungsten Trioxide Films Prepared by Electric Current Heating Using Tungsten Wire, Key Eng. Mat. Vol. 421-422 (2010) 364-367.

DOI: 10.4028/www.scientific.net/kem.421-422.364

Google Scholar
