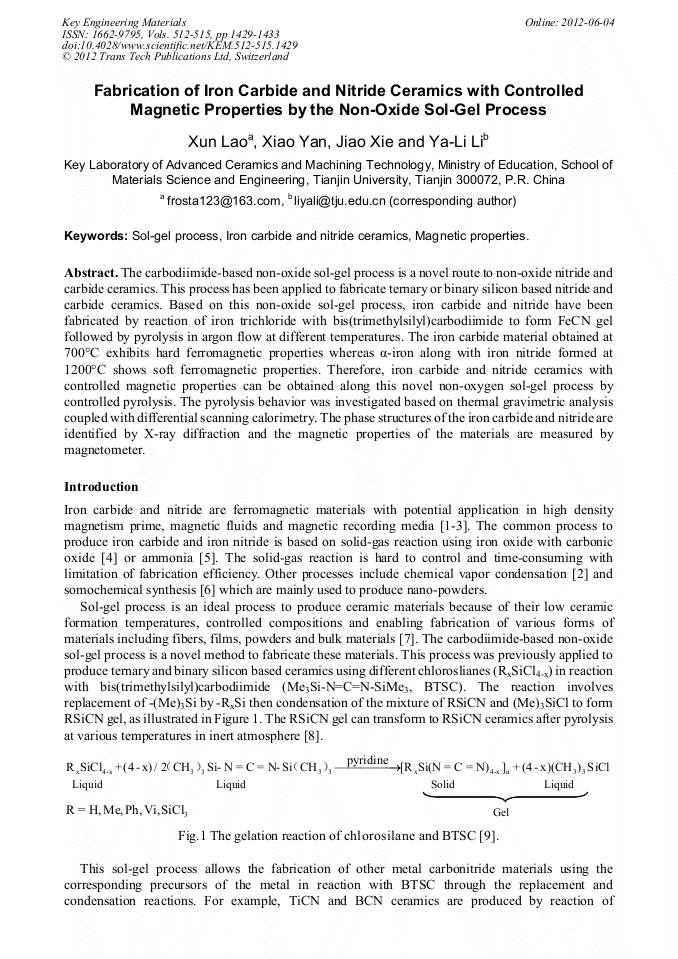

Fabrication of Iron Carbide and Nitride Ceramics with Controlled Magnetic Properties by the Non-Oxide Sol-Gel Process

Abstract:

The carbodiimide-based non-oxide sol-gel process is a novel route to non-oxide nitride and carbide ceramics. This process has been applied to fabricate ternary or binary silicon based nitride and carbide ceramics. Based on this non-oxide sol-gel process, iron carbide and nitride have been fabricated by reaction of iron trichloride with bis(trimethylsilyl)carbodiimide to form FeCN gel followed by pyrolysis in argon flow at different temperatures. The iron carbide material obtained at 700 °C exhibits hard ferromagnetic properties whereas α-iron along with iron nitride formed at 1300 °C shows soft ferromagnetic properties. Therefore, iron carbide and nitride ceramics with controlled magnetic properties can be obtained along this novel non-oxygen sol-gel process by controlled pyrolysis. The pyrolysis behavior was investigated based on thermal gravimetric analysis coupled with differential scanning calorimetry. The phase structures of the iron carbide and nitride are identified by X-ray diffraction and the magnetic properties of the materials are measured by magnetometer.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1429-1433
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1429
• Online since: June 2012
• Authors: Xun Lao, Xiao Yan, Jiao Xie, Ya Li Li
• Keywords: Controlled Magnetic Properties, Iron Carbide, Nitride Ceramics, Non-Oxide Sol-Gel Process

References

[1] X. C. Sun, A. Gutierrez, M. J. Yacaman, et al., Investigations on magnetic properties and structure for carbon encapsulated nanoparticles of Fe, Co, Ni. Mater. Sci. Eng. A, 286 (2000) 157-160.

DOI: 10.1016/s0921-5093(00)00628-6

[2] S. F. Matar, Chemical bonding and magnetic trends within the iron-nitrogen system, J. Alloys Compd., 345 (2002) 72-76.

DOI: 10.1016/s0925-8388(02)00680-1

[3] Z. H. Wang, Z. D. Zhang, C. J. Choi, et al., Structure and magnetic properties of Fe(C) and Co(C) nanocapsules prepared by chemical vapor condensation. J. Alloys compd., 361 (2003) 289-293.

DOI: 10.1016/s0925-8388(03)00441-9

[4] C. Wang, Y.Z. Na, S.L. Liu, et al., Preparation of iron carbide catalysts and their activity for CO hydrogenation. Chinese J. Catal. 7 (2005) 539-541.

[5] Q.L. Meng. Study on the preparation of nitride in high magnetic field and by mechanical alloying. Master Degree Thesis, Northeast University, Shenyang, China. 2010. 17.

[6] Y. Koltypin, X. Cao, R. Prozorov. Sonochemical synthesis of ironnitride nanoparticles. Mater. Chem. 7 (1997) 2453-2456.

DOI: 10.1039/a704008c

[7] E. Kroke, Y.L. Li, R. Riedel, et al., Silazane derived ceramics and related materials. Mater. Sci. Eng., R, 26 (2000) 970-199.

[8] R. Riedel, E. Kroke, A. Greiner, et al., Inorganic solid-state chemistry with main group element carbodiimides. Chem. Mater. 10 (1998) 2964-2979.

DOI: 10.1021/cm980261w

[9] J. Xie, Synthesis of SiCN Ceramics with Tailored Structures via the Non-oxide Sol-Gel Reaction. Master Degree Thesis, Tianjin University, Tianjin, China. 2007. 19.

[10] Kienzle, J. Bill, F. Aldinger, et al., Nanosized Si-C-N powder by pyrolysis of highly cross linked silylcarbodiimide, Nanostruct. Mater. 6 (1995) 349-352.

DOI: 10.1016/0965-9773(95)00068-2

[11] N. Hering, K. Schreiber, R. Riedel, et al., Synthesis of polymeric precursors for the formation of nanocrystalline Ti-C-N/amorphous Si-C-N composites, Appl. Organomet. Chem. 15 (2001) 879-886.

DOI: 10.1002/aoc.241

[12] E. Kroke, K.W. Voger, A. Klonczynski, et al., Eine sol-gel-route zur synthese von B4C, Angew. Chem. 113 (2001) 1751-1753.

DOI: 10.1002/1521-3757(20010504)113:9<1751::aid-ange17510>3.0.co;2-9

[13] K.W. Voger, E. Kroke, C. Gervais, et al., B/C/N materials and B4C synthesized by a non-oxide sol-gel process, Chem. Mater. 15 (2001) 755-764.
