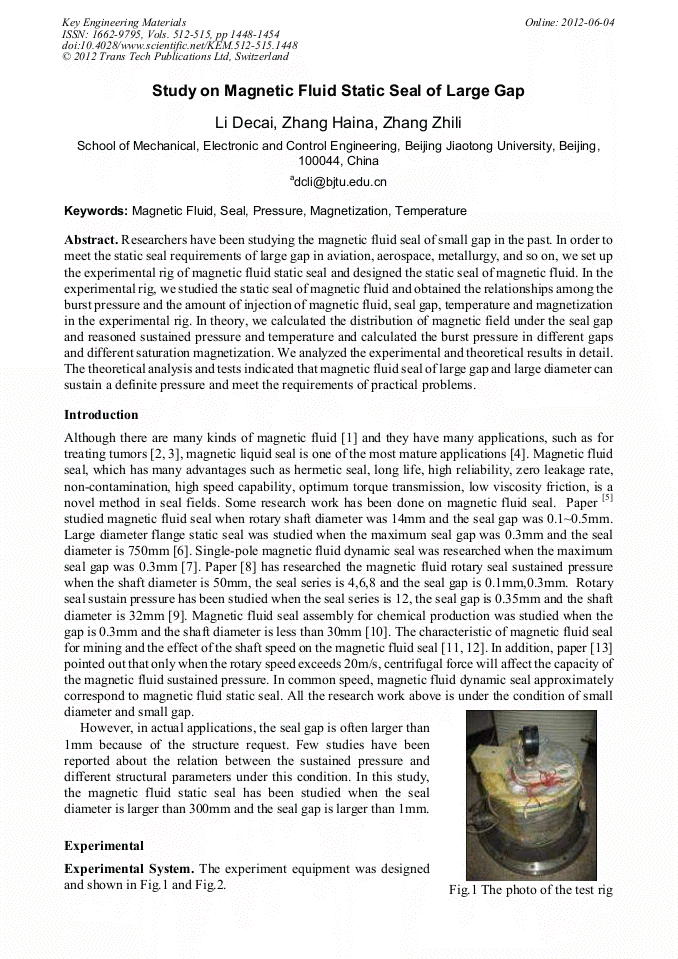

Study on Magnetic Fluid Static Seal of Large Gap

Abstract:

Researchers have been studying the magnetic fluid seal of small gap in the past. In order to meet the static seal requirements of large gap in aviation, aerospace, metallurgy, and so on. We set up the experimental rig of magnetic fluid static seal and designed the static seal of magnetic fluid. In the experimental rig, we studied the static seal of magnetic fluid and obtained the relationships among the burst pressure and the amount of injection of magnetic fluid, seal gap, temperature and magnetization in the experimental rig. In theory, we calculated the distribution of magnetic field under the seal gap and reasoned sustained pressure and temperature and calculated the burst pressure in different gaps and different saturation magnetization. We analyzed the experimental and theoretical results in detail. The theoretical analysis and tests indicated that magnetic fluid seal of large gap and large diameter can sustain a definite pressure and meet the requirements of practical problems.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1448-1454
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1448
• Online since: June 2012
• Authors: De Cai Li, Hai Na Zhang, Zhi Li Zhang
• Keywords: Magnetic Fluid, Magnetization, Pressure, Seal, Temperature

References

[1] J. S. Hong, J. Pyun, Y. W. Park, et al, Oxidation effect in cobalt nanoparticles Magnetic Fluids, IEEE Transactions on magnetics.45 (2009) 2464-2466.

DOI: 10.1109/tmag.2009.2018613

[2] M. Pavel, A. Stancu, Ferromagnetic nanoparticles dose based on tumor size in magnetic fluid hyperthermia cancer therapy, IEEE Transactions on magnetics.45 (2009) 5251-5254.

DOI: 10.1109/tmag.2009.2031076

[3] M. B. Anton Hamler, Determination of the heating effect of magnetic fluid in alternating magnetic field, IEEE Transactions on magnetics. 46 (2010) 552-555.

DOI: 10.1109/tmag.2009.2033944

[4] G. S. Park, S. H. Park, Design of magnetic fluid linear pump, IEEE Transactions on magnetics. 35(1999) 4058-4060.

DOI: 10.1109/20.800754

[5] J.M. Gu, et al, Effect of the gap of magnetic fluid seal on seal capacity, Journal of Shanghai Jiao Tong University. 33 (1999) 380-382.

[6] D. C. Li. A study of static magnetic fluid seal of large flange diameter, Magnetohydrodynamics. 44 (2008) 75-82.

DOI: 10.22364/mhd.44.1.11

[7] M. P. Perry, Dynamic loading of a single-stage ferromagnetic liquid seal, J. Appl. Phys. 49 (1978) 2334-2338.

DOI: 10.1063/1.325119

[8] W. Ochonski, Z. Szydlo, B. Zachara: Proc. Int. Tribology Conf. (2000)

[9] B. F. Li, et al, The study of the capability of magnetic fluid seals at large gap and high rotate speed conditions, Machine tool & hydraulics. 1(2005) 86

[10] A. V. Radionov, A. N. Gurskey: submitted to the 11th international conference on magnetic fluids, Book of abstracts (2007)

[11] A. V. Radionov, L. V. Kosarev: submitted to the 11th international conference on magnetic fluids, Book of abstracts (2007)

[12] M. S. Krakov, L. V. Nikiforov: submitted to the 11th international conference on magnetic fluids, Book of abstracts (2007)

[13] V. E. Fertman, Heat dissipation in high spead magnetic fluid shaft seal, IEEE Transactions on magnetics. 16 (1979)

DOI: 10.1109/tmag.1980.1060626

[14] D. C. Li, Theories and Applications of Magnetic Fluid, Science Press ed., Beijing, (2003)

[15] C. Q. Chi, Z. S. Wang, P. Z. Zhao, Ferrohydr- odynamics, buaapress ed., Beijing,1993.

[16] M. O. Lutset, V. A. Starovoitov, Experimental studies of high-speed cayogenic magnetic fluid seals, IEEE Transactions on magnetics. 16 (1980) 343-346.

DOI: 10.1109/tmag.1980.1060628
