Electrical Conductivity and Characterization of CeO₂ Doped 8YSZ Electrolyte with 2%wt CuO Doping

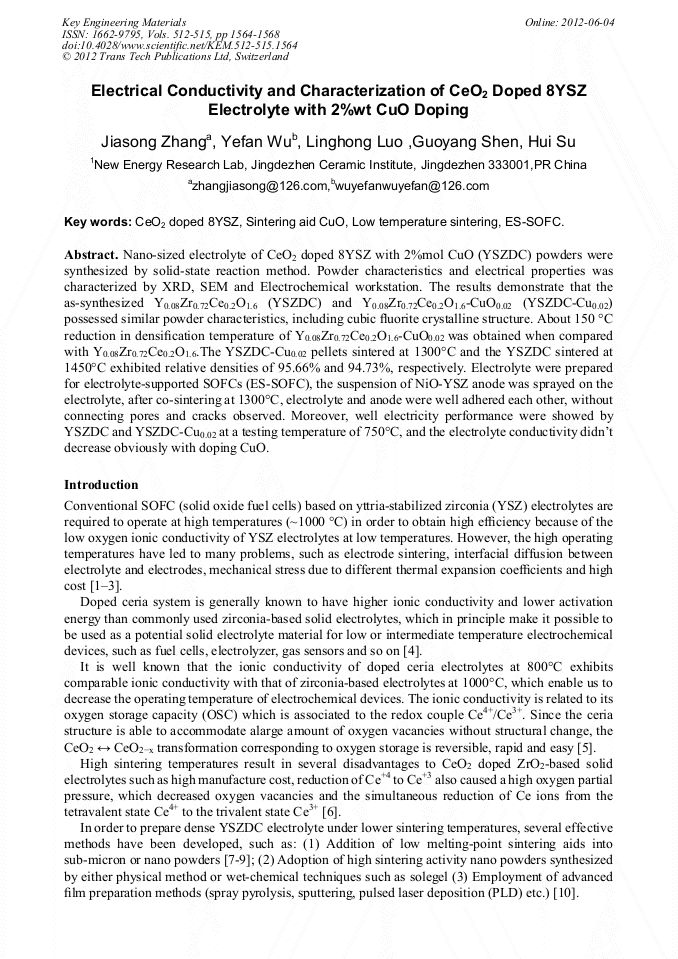

Abstract:

Nano-sized electrolyte of CeO₂ doped 8YSZ with 2%mol CuO (YSZDC)powders were synthesized by solid state reaction method. Powder characteristics and electrical properties was characterized by XRD,SEM and Electrochemical workstation.The results demonstrate that the as-synthesized Y_0.08Zr_0.72Ce_0.2O_1.6 (YSZDC) and Y_0.08Zr_0.72Ce_0.18Cu _0.02O_1.6-δ(YSZDC-Cu_0.02) possessed similar powder characteristics, including cubic fluorite crystalline structure.About 150 °C reduction in densification temperature of Y_0.08Zr_0.72Ce_0.18Cu_0.02O_1.6-δ was obtained when compared with Y_0.08Zr_0.72Ce_0.2O_1.6.The YSZDC-Cu_0.02 pellets sintered at 1300 °C and the YSZDC sintered at 1450 °C exhibited relative densities of 95.66% and 94.73%,respectively.Electrolyte matrixs were prepared for electrolyte-supported SOFCs(ES-SOFC) , the suspension of NiO-YSZ anode was sprayed on the electrolyte, after co-sintering at 1300°C,electrolyte matrixs and anode were well adhered each othert, without connecting pores and cracks observed. Moerover, well electricity performance were showed by YSZDC and YSZDC-Cu_0.02 at a testing temperature of 750°C,And the electrolyte conductivity didn’t decrease obviously with dopping CuO.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1564-1568
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1564
• Online since: June 2012
• Authors: Jia Song Zhang, Ye Fan Wu, Ling Hong Luo, Guo Yang Shen, Hui Su
• Keywords: CeO₂ Doped 8YSZ, ES-SOFC, Low Temperature Sintering, Sintering Aid CuO

References

[1] M. J. Jorgensen, P. Holtappels, C. C. Appel, Durability test of SOFC cathodes, J .Appl. Electrochem. 30 (2000) 411-418.

[2] S. De Souza, S.J. Visco, L. C. D. Jonghe, Thin-film solid oxide fuel cell with high performance at low- temperature, Solid State Ionics.98(1997)57-61.

DOI: 10.1016/s0167-2738(96)00525-5

[3] S.D. Kim, S.H. Hyun, J. Moon, et al., Fabrication and characterization of anode-supported electrolyte thin films for intermediate temperature solid oxide fuel cells, J . Power Sources. 139 (2005) 67-72.

DOI: 10.1016/j.jpowsour.2004.07.013

[4] J.-H. Lee, J. Kim, S.-W. Kim, H.-W. Lee, H. S. Song, Characterisation of the electrical properties of Y2O3-doped CeO2-rich CeO2–ZrO2 solid solutions, Solid State Ionics. 166(2004)45-52.

DOI: 10.1016/j.ssi.2003.10.001

[5] Christine Bozo, François Gaillard, Nolven Guilhaume, Characterisation of ceria–zirconia solid solutions after hydrothermal aging , Appl. Catalysis A: General. 220 (2001) 69–77.

DOI: 10.1016/s0926-860x(01)00710-4

[6] M. Gouet, S. Lo, H. Delebarre and M. Guillou, High Temp-High Press. 13 (1981) 51.

[7] Gil V, Tartaj J, Moure C, et al.. Sintering, Microstructural development, and electrical properties of gadolinia-doped ceria electrolyte with bismuth oxide as a sintering aid. J Eur Ceram Soc. 26 (2006) 3161-3171.

DOI: 10.1016/j.jeurceramsoc.2005.09.068

[8] C.J. Fu, Q.J. Liu, S.H. Chan, et al., Effects of transition metal oxides on the densification of thin-film GDC electrolyte and on the performance of intermediate- temperature SOFC. Int J Hydrogen Energy .35(2010)11200-11207.

DOI: 10.1016/j.ijhydene.2010.07.049

[9] Q. Dong, D. ZH, T.S. Zhang, et al.. Sintering and ionic conductivity of 8YSZ and CGO10 electrolytes with small addition of Fe2O3: A comparative study. Int J. Hydrogen Energy .34(2009)7903-7909.

DOI: 10.1016/j.ijhydene.2009.06.042

[10] T. Yu, J. Joo, Park YI, Hyeon T. Large-Scale Nonhydrolytic Sol–Gel Synthesis of Uniform-Sized Ceria Nanocrystals with Spherical, Wire, and Tadpole Shapes, Angewandte Chemie. 117 (2005) 7577-7580.

DOI: 10.1002/ange.200500992

[11] C. H. Lee, G. M. Choi, Electrical conductivity of CeO2-doped YSZ, Solid State Ionics. 135 (2000) 653-661.

DOI: 10.1016/s0167-2738(00)00427-6

[12] R.O. Fuentes, R.T. Baker, Synthesis and properties of Gadolinium-doped ceria solid solutions for IT-SOFC electrolytes, Int. J. Hydrogen Energy .33(2008) 3480–3484.

DOI: 10.1016/j.ijhydene.2007.10.026

[13] J K Mackenzie and R Shuttleworth. A phenomenological theory of sintering. Proc Phys Soc . 62 (1949) 833.

[14] S.W. Zha, C.R. Xia, G.Y. Meng, Calculation of the e.m.f. of solid oxide fuel cells,J. Appl. Electrochem. 31(2001) 93-98.

[15] Y. Leng, S. Chan, K. Khor, S. Jiang, Performance evaluation of anode-supported solid oxide fuel cells with thin film YSZ electrolyte, Int. J. Hydrogen Energy 29 (2004) 1025-1033.

DOI: 10.1016/j.ijhydene.2004.01.009
