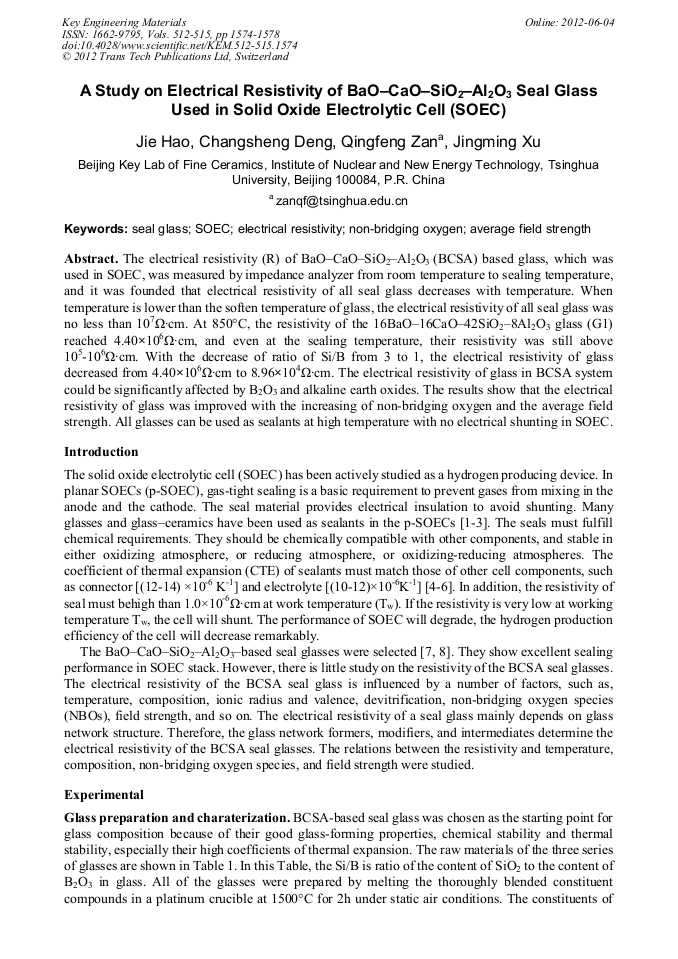

A Study on Electrical Resistivity of BaO–CaO–SiO₂–Al₂O₃ Seal Glass Used in Solid Oxide Electrolytic Cell (SOEC)

Abstract:

The electrical resistivty (R) of BaO–CaO–SiO2–Al2O3 (BCSA) based glass, which was used in SOEC, was measured by impedance analyzer from room temperature to sealing temperature, and it was founded that electrical resistivity of all seal glass decreases with temperature. When temperature is lower than the soften temperature of glass, the electrical resistivity of all seal glass was no less than 107Ω∙cm. At 850°C, the resistivity of the 16BaO–16CaO–42SiO2–8Al2O3 glass (G1) reached 4.40×106Ω∙cm, and even at the sealing temperature, their resistivity was still above 105-106Ω∙cm. With the decrease of ratio of Si/B from 3 to 1, the electrical resistivity of glass decreased from 4.40×106Ω∙cm to 8.96×104Ω∙cm. The electrical resistivity of glass in BCSA system could be significantly affected by B2O3 and alkaline earth oxides. The results show that the electrical resistivity of glass was improved with the increasing of non-bridging oxygen and the average field strength. All glasses can be used as sealants at high temperature with no electrical shunting in SOEC.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1574-1578
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1574
• Online since: June 2012
• Authors: Jie Hao, Chang Sheng Deng, Qing Feng Zan, Jing Ming Xu
• Keywords: Average Field Strength, Electrical Resistivity, Non-Bridging Oxygen, Seal Glass, SOEC

References

[1] M.K. Mahapatra, K. Lu, Glass-based seals for solid oxide fuel and electrolyze cells-A review, Materials Science and Engineering R, 67 (2010) 65-85.

DOI: 10.1016/j.mser.2009.12.002

[2] J.W. Fergus, Sealants for solid oxide fuel cells, J Power Sources, 147 (2005) 46–57.

DOI: 10.1016/j.jpowsour.2005.05.002

[3] J.H. Piao, K.N. Sun, N.Q. Zhang, D.R. Zhou, J. Hua, Progress of Glass Sealing Materials Used for SOFC, J. Synthetic Crystals, 33 (2004)909-912

[4] Z. Yang, K.S. Weil, D.M. Paxton, J.W. Stevenson, Selection and evaluation of heat-resistant alloys for SOFC interconnect applications, J. Electrochem. Soc. 150 (2003) A1188.

DOI: 10.1149/1.1595659

[5] S.B. Sohn, S.Y. Choi, G.H. Kim, H.S. Song, G.D. Kim, Suitable glass-ceramic sealant for planar solid oxide fuel cells, J. Am. Ceram. Soc. 87 (2004) 254–260.

DOI: 10.1111/j.1551-2916.2004.00254.x

[6] S.M. Gross, T. Koppitz, J. Remmel, J.B. Bouche, U. Reisgen, joining properties of a composite glass-ceramic sealant, Full Cell Bulletin, 2006, 12-15.

DOI: 10.1016/s1464-2859(06)71320-7

[7] V.A.C. Haanappel, V. Shemet, I.C. Vinke, et al., Evaluation of the suitability of various glass sealant-alloy combinations under SOFC stack conditions, J Mater Sci. 40 (2005) 1583 – 1592.

DOI: 10.1007/s10853-005-0657-0

[8] V.A.C. Haanappel, V. Shemet, I.C. Vinke, et al., A novel method to evaluate the suitability of glass sealant–alloy combinations under SOFC stack conditions, J. Power Sources, 141 (2005) 102–107.

DOI: 10.1016/j.jpowsour.2004.08.053

[9] W.D. Kingery, H.K. Bowen, D.R. Uhlmann, Introduction to Ceramics. John Wiley and Sons, Inc, 1976, pp.100-108.

[10] M. Malki, P. Echegut, Electrical conductivity of the CaO–SiO2 system in the solid and the molten states, J. Non-Cryst. Solids, 323 (2003) 131.

DOI: 10.1016/s0022-3093(03)00298-9

[11] G. Gruener, D.D.S. Meneses, P. Odier, J.P. Loup, Influence of the network on conductivity in ternary CaO–Al2O3–SiO2 glasses and melts,J Non-Cryst. Solids, 281 (2001) 117.

DOI: 10.1016/s0022-3093(00)00423-3

[12] A. Grandjean, M. Malki, C. Simonnet, et al., Correlation between electrical conductivity, viscosity, and structure in borosilicate glass-forming melts, Phys. Rev. B, 75 (2007) 054112.

DOI: 10.1103/physrevb.75.054112

[13] W.D. Kingery, H.K. Bowen, D.R. Uhlmann, Introduction to Ceramics, 2nd ed,John Wiley and Sons Inc., New York, 1976.

[14] H. Scholze, Glass Nature, Structure, and Properties, Springer Verlag, New York,1991.

[15] A. Grandjean, M. Malki, C. Simonnet,Effect of composition on ionic transport in SiO2–B2O3–Na2O glasses, J. Non-Cryst. Solids, 352 (2006) 2731.

DOI: 10.1016/j.jnoncrysol.2006.03.058

[16] K. Lua, M.K. Mahapatrab, Network structure and thermal stability study of high temperature seal glass, J. Appl. Phys. 104 (2008) 074910.

DOI: 10.1063/1.2979323
